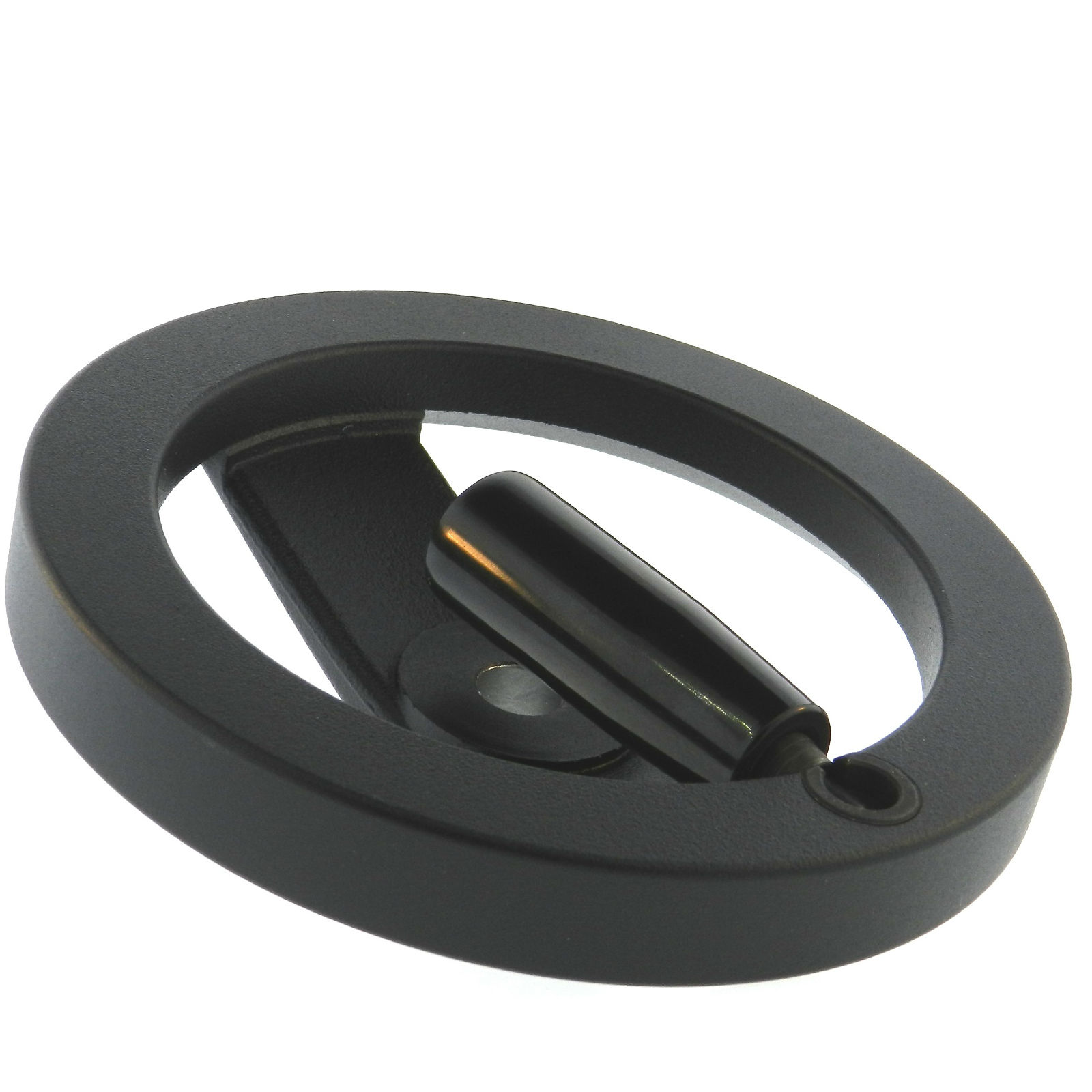

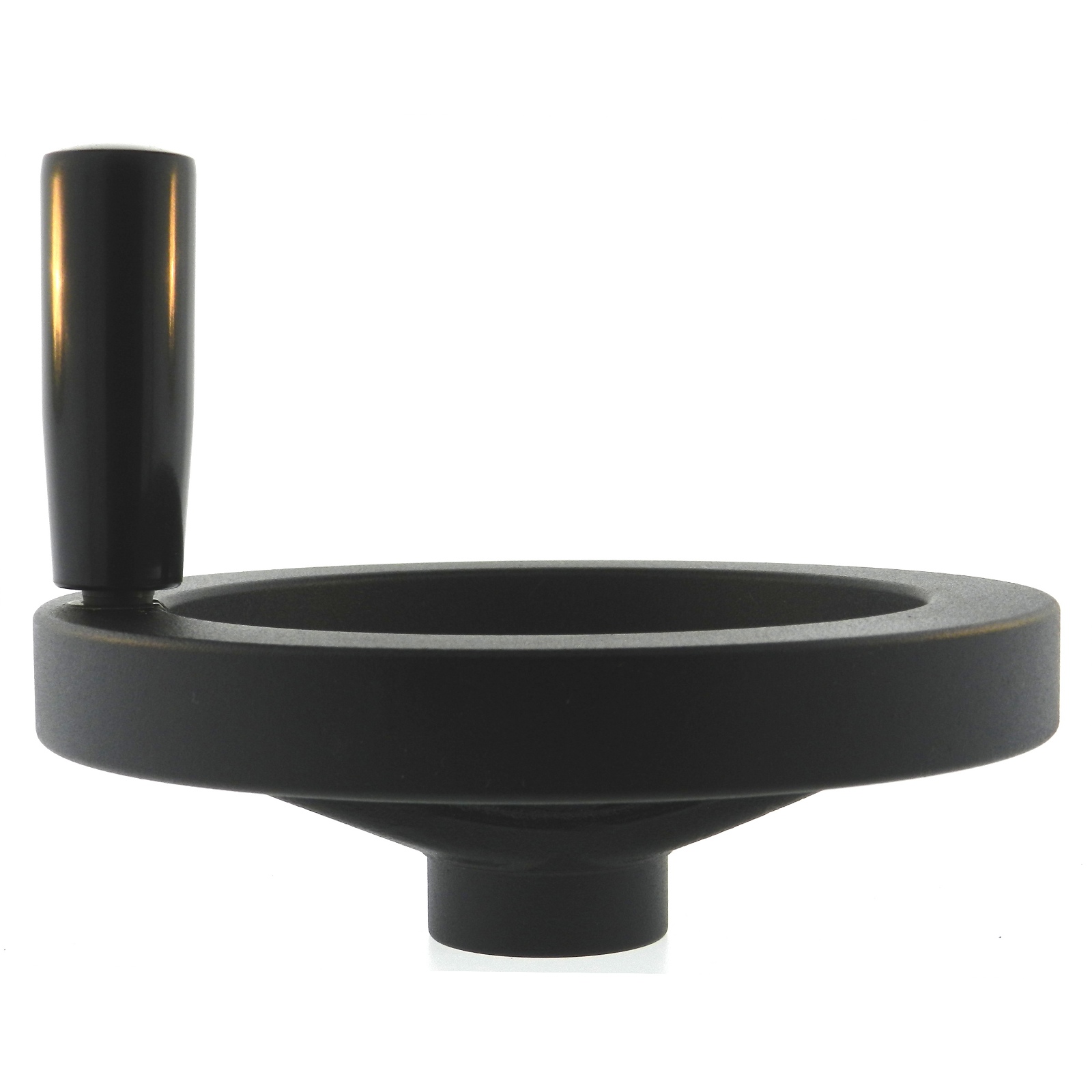

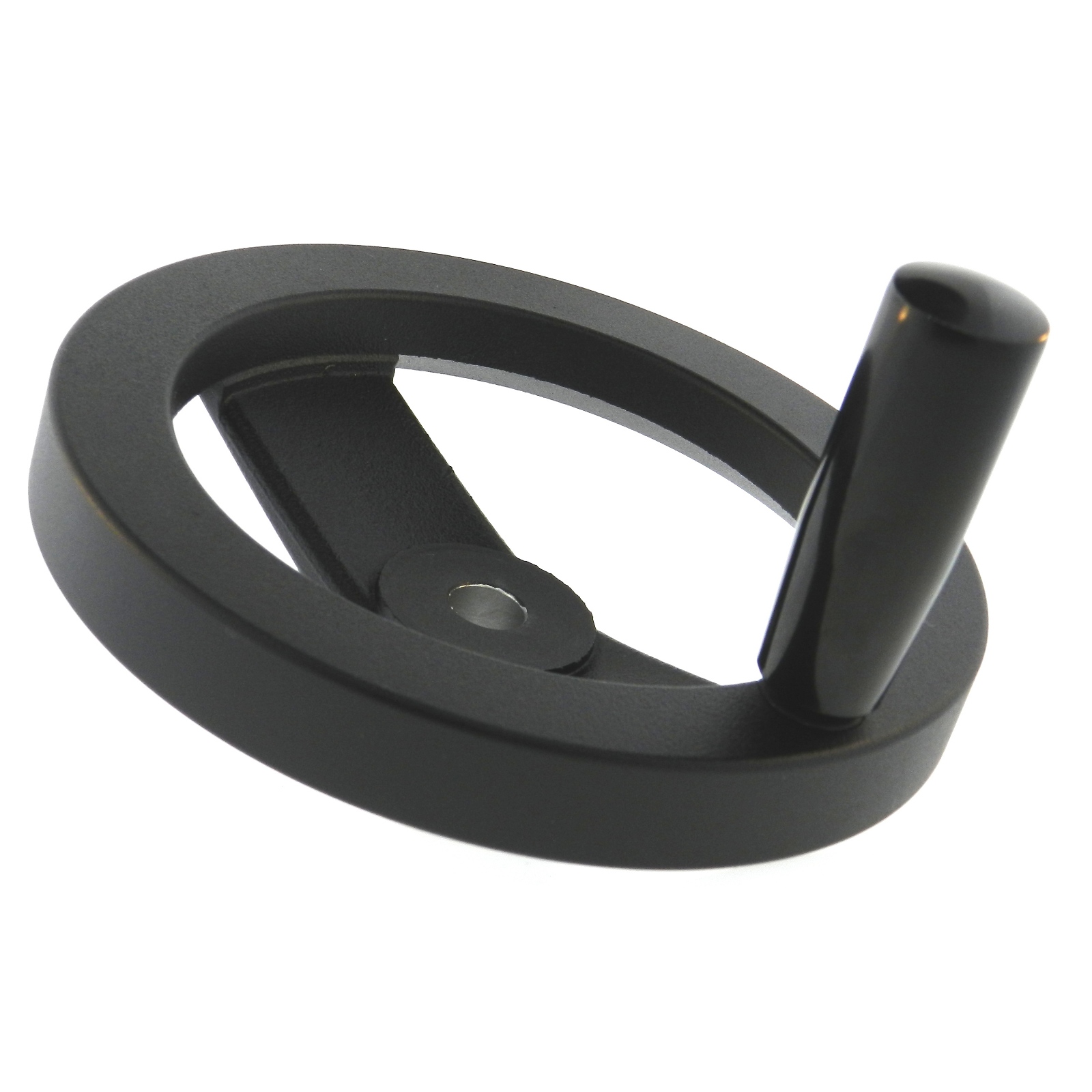

Aluminum 2 Spoke Handwheel with Folding Handle

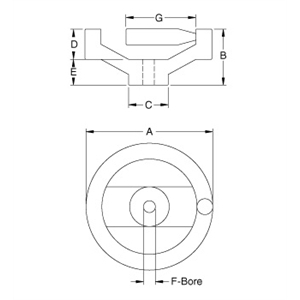

JBF National fashions this 2 spoke aluminum handwheel from the highest quality gravity cast aluminum, which features a fine grain black powder coating. To maximize operator comfort and safety, this handwheel comes with a smooth phenolic, folding handle. The folding handle makes it excellent for tight space situations. Various diameters and bore sizes available. Please see component diagram below.
| JBF National Part Number | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 1AHDW-1008 | 4 | 1.77 | 1.25 | 0.750 | 0.812 | 3/8" | 1.97 |
| 1AHDW-1009 | 4 | 1.77 | 1.25 | 0.750 | 0.812 | 1/2" | 1.97 |
| 2AHDW-1010 | 5 | 1.93 | 1.31 | 0.750 | 0.875 | 3/8" | 2.56 |
| 2AHDW-1011 | 5 | 1.93 | 1.31 | 0.750 | 0.875 | 1/2" | 2.56 |
| 3AHDW-1012 | 6 | 2.05 | 1.44 | 0.780 | 1.000 | 1/2" | 2.56 |
| 3AHDW-1013 | 6 | 2.05 | 1.44 | 0.780 | 1.000 | 5/8" | 2.56 |
| 5AHDW-1014 | 8 | 2.74 | 1.94 | 0.937 | 1.370 | 1/2" | 3.15 |
| 5AHDW-1015 | 8 | 2.74 | 1.94 | 0.937 | 1.370 | 5/8" | 3.15 |
| 7AHDW-1016 | 10 | 2.80 | 1.94 | 0.937 | 1.370 | 5/8" | 3.15 |
| 7AHDW-1017 | 10 | 2.80 | 1.94 | 0.937 | 1.370 | 3/4" | 3.15 |
