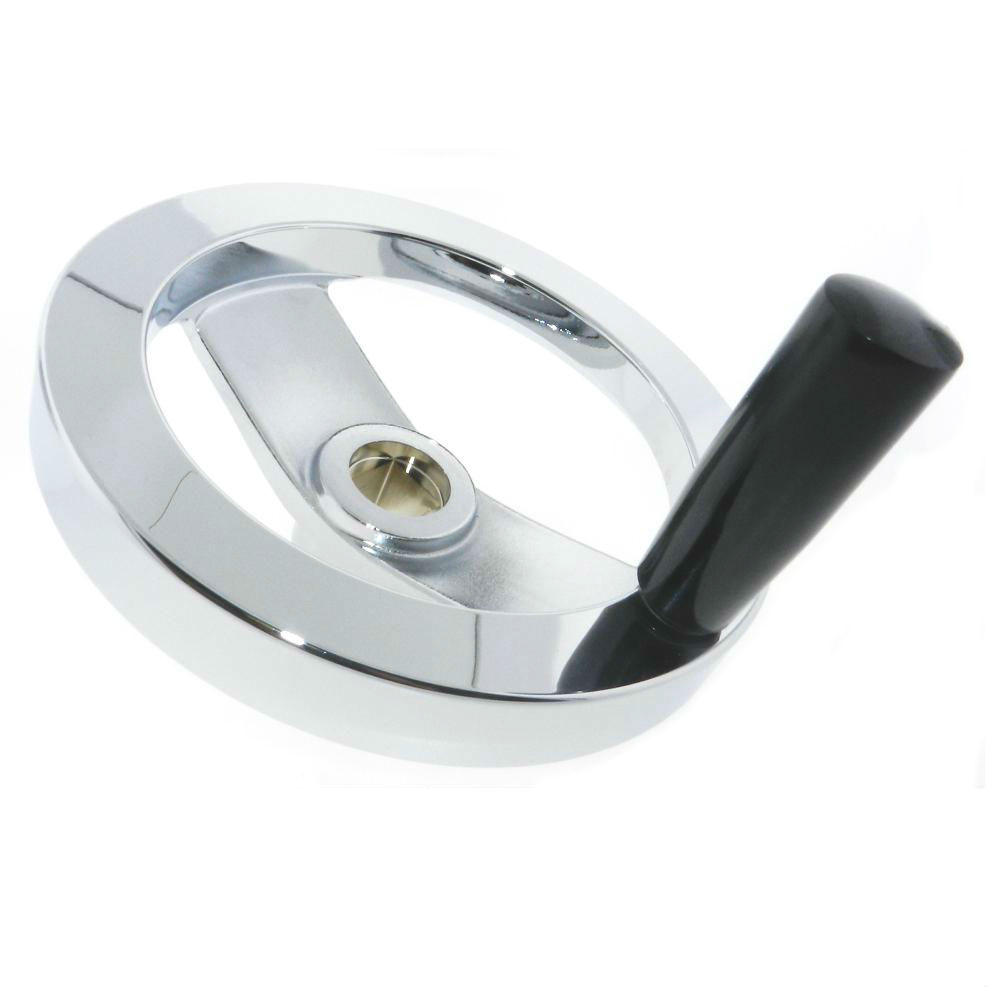

Aluminum 2 Spoke Chrome Plated Handwheel

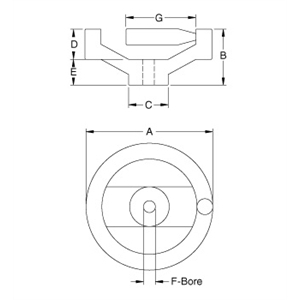

JBF National fashions this 2 spoke aluminum handwheel from the finest chrome finished gravity cast aluminum, and comes with either a fixed phenolic revolving or folding handle. This handwheel is also available in 4” and 6” diameters. A rigorous 400 hour salt spray test rating means that it will stand the test of time in any situation. Please see component diagram below.
| JBF National Part Number | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 1AHDW-1000 | 4 | 1.77 | 1.25 | 0.750 | 0.812 | 3/8" | 1.97 |
| 1AHDW-1001 | 4 | 1.77 | 1.25 | 0.750 | 0.812 | 1/2" | 1.97 |
| 3AHDW-1002 | 6 | 2.05 | 1.44 | 0.780 | 1.000 | 1/2" | 2.56 |
| 3AHDW-1003 | 6 | 2.05 | 1.44 | 0.780 | 1.000 | 5/8" | 2.56 |
| 1AHDW-1004 | 4 | 1.77 | 1.25 | 0.750 | 0.812 | 3/8" | 1.97 |
| 1AHDW-1005 | 4 | 1.77 | 1.25 | 0.750 | 0.812 | 1/2" | 1.97 |
| 3AHDW-1006 | 6 | 2.05 | 1.44 | 0.780 | 1.000 | 1/2" | 2.56 |
| 3AHDW-1007 | 6 | 2.05 | 1.44 | 0.780 | 1.000 | 5/8" | 2.56 |
