Seven-Point Thermoplastic Hand Knob

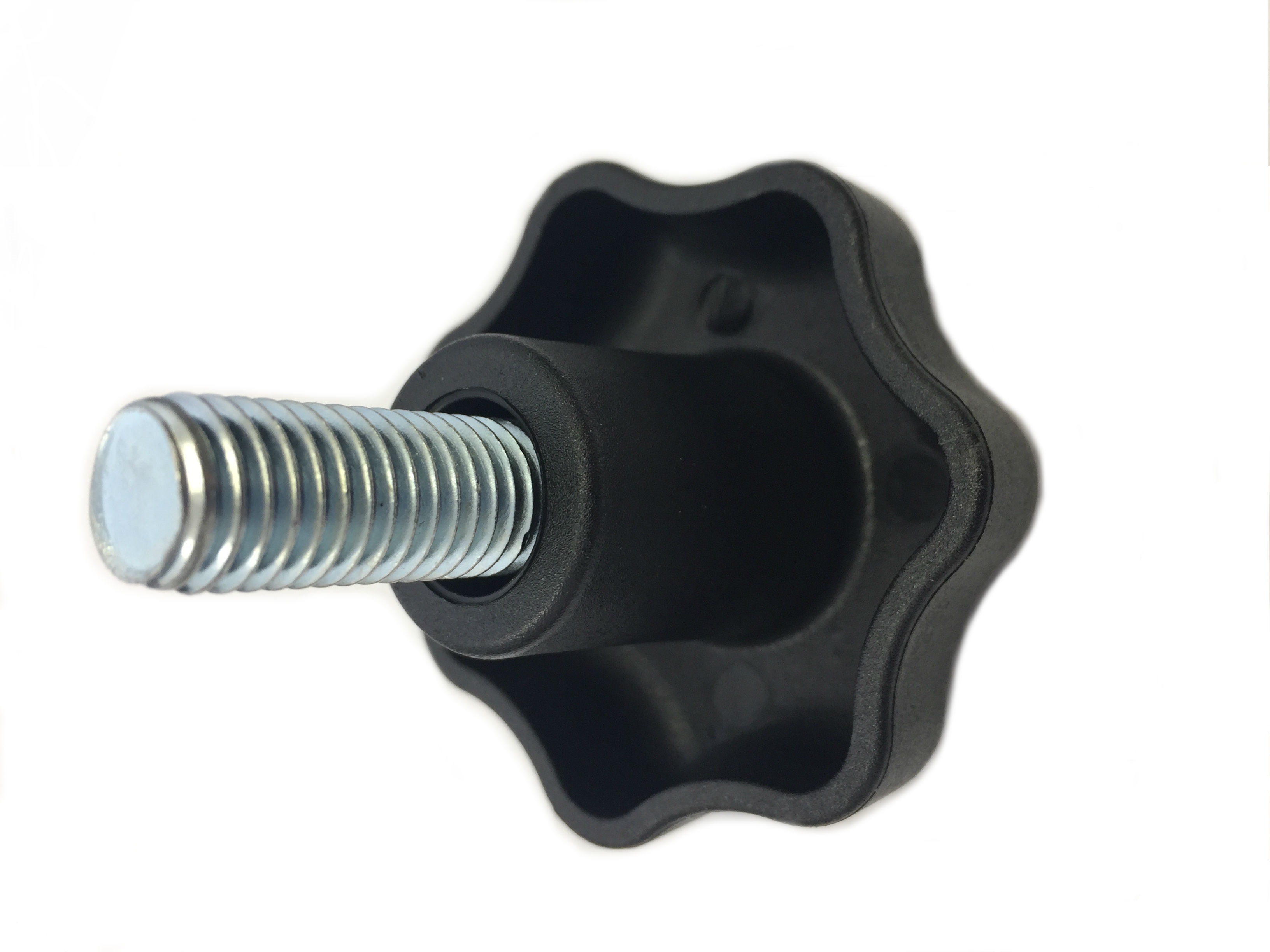

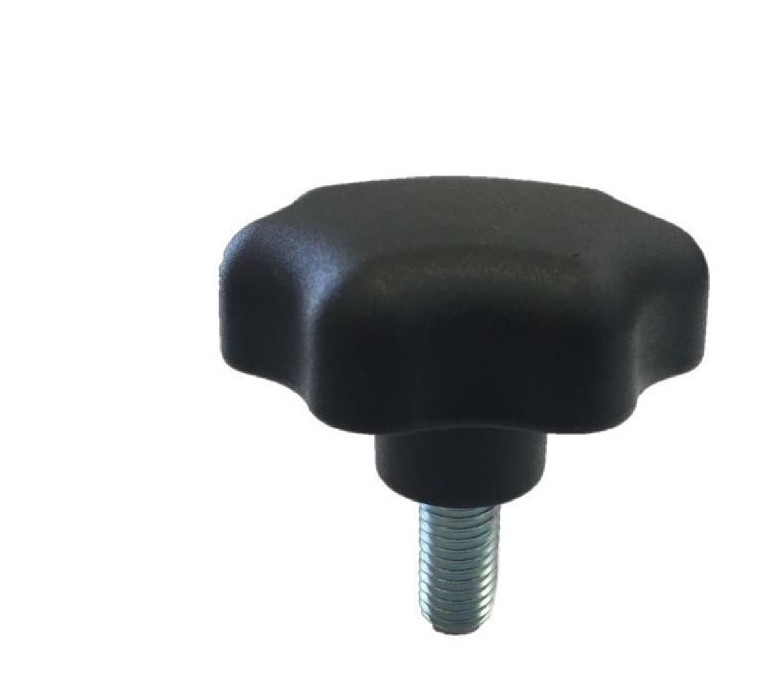

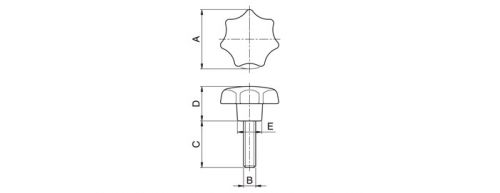

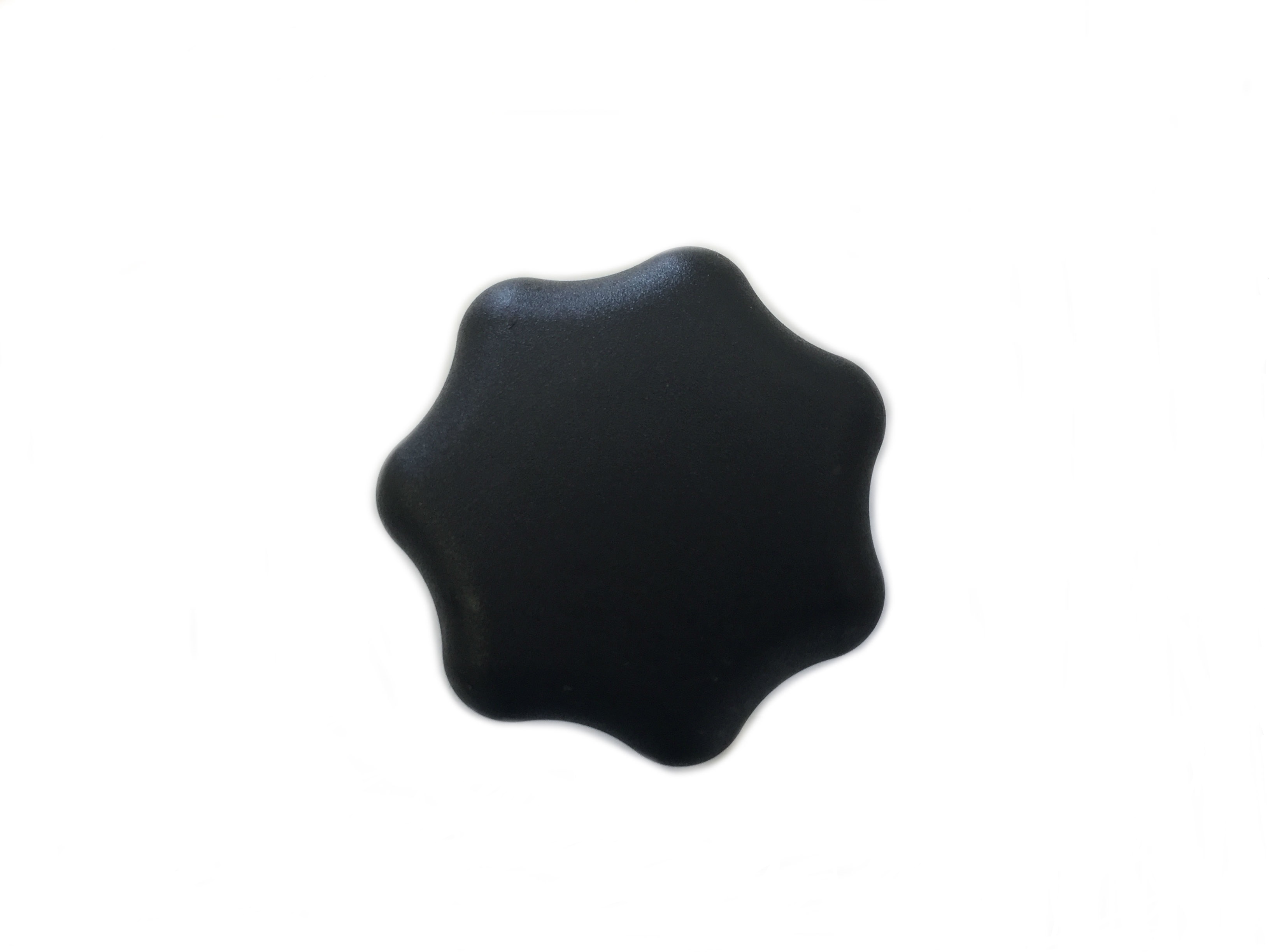

JBF National’s studded thermoplastic palm knob features a 7- lobe design that ensures positive palm grip. The lack of mold lines, combined with the smooth edges of its thermoplastic grip means complete operator hand comfort for years to come. Variety of stud lengths available. Please see component diagram below.
| P/N | (A) Knob Dia. | (B) EXT. Thread | (C) Thread Length | (D) Knob Height | (E) Hub Dia. |
|---|---|---|---|---|---|
| PKG-350 | 50 | M10x1.5 | 15 | 32 | 21 |
| PKG-351 | 50 | M10x1.5 | 20 | 32 | 21 |
| PKG-352 | 50 | M10x1.5 | 25 | 32 | 21 |
| PKG-353 | 50 | M10x1.5 | 30 | 32 | 21 |
| PKG-354 | 50 | M10x1.5 | 35 | 32 | 21 |
| PKG-355 | 50 | M10x1.5 | 40 | 32 | 21 |
| PKG-356 | 50 | M10x1.5 | 45 | 32 | 21 |
| PKG-357 | 50 | M10x1.5 | 60 | 32 | 21 |
| PKG-358 | 63 | M12x1.75 | 20 | 40 | 24 |
| PKG-359 | 63 | M12x1.75 | 25 | 40 | 24 |
| PKG-360 | 63 | M12x1.75 | 30 | 40 | 24 |
| PKG-361 | 63 | M12x1.75 | 35 | 40 | 24 |
| PKG-362 | 63 | M12x1.75 | 40 | 40 | 24 |
| PKG-363 | 63 | M12x1.75 | 50 | 40 | 24 |
| PKG-364 | 63 | M12x1.75 | 60 | 40 | 24 |
| PKG-365 | 25 | M5x0.8 | 10 | 16 | 12 |
| PKG-366 | 25 | M5x0.8 | 15 | 16 | 12 |
| PKG-367 | 25 | M5x0.8 | 20 | 16 | 12 |
| PKG-368 | 25 | M5x0.8 | 25 | 16 | 12 |
| PKG-369 | 25 | M5x0.8 | 30 | 16 | 12 |
| PKG-370 | 32 | M6x1 | 10 | 20 | 14 |
| PKG-371 | 32 | M6x1 | 15 | 20 | 14 |
| PKG-372 | 32 | M6x1 | 20 | 20 | 14 |
| PKG-373 | 32 | M6x1 | 25 | 20 | 14 |
| PKG-374 | 32 | M6x1 | 30 | 20 | 14 |
| PKG-375 | 32 | M6x1 | 35 | 20 | 14 |
| PKG-376 | 32 | M6x1 | 45 | 20 | 14 |
| PKG-377 | 40 | M8x1.25 | 15 | 25 | 17 |
| PKG-378 | 40 | M8x1.25 | 20 | 25 | 17 |
| PKG-379 | 40 | M8x1.25 | 25 | 25 | 17 |
| PKG-380 | 40 | M8x1.25 | 30 | 25 | 17 |
| PKG-381 | 40 | M8x1.25 | 35 | 25 | 17 |
| PKG-382 | 40 | M8x1.25 | 40 | 25 | 17 |
| PKG-383 | 40 | M8x1.25 | 50 | 25 | 17 |
| PKG-384 | 40 | M8x1.25 | 60 | 25 | 17 |
