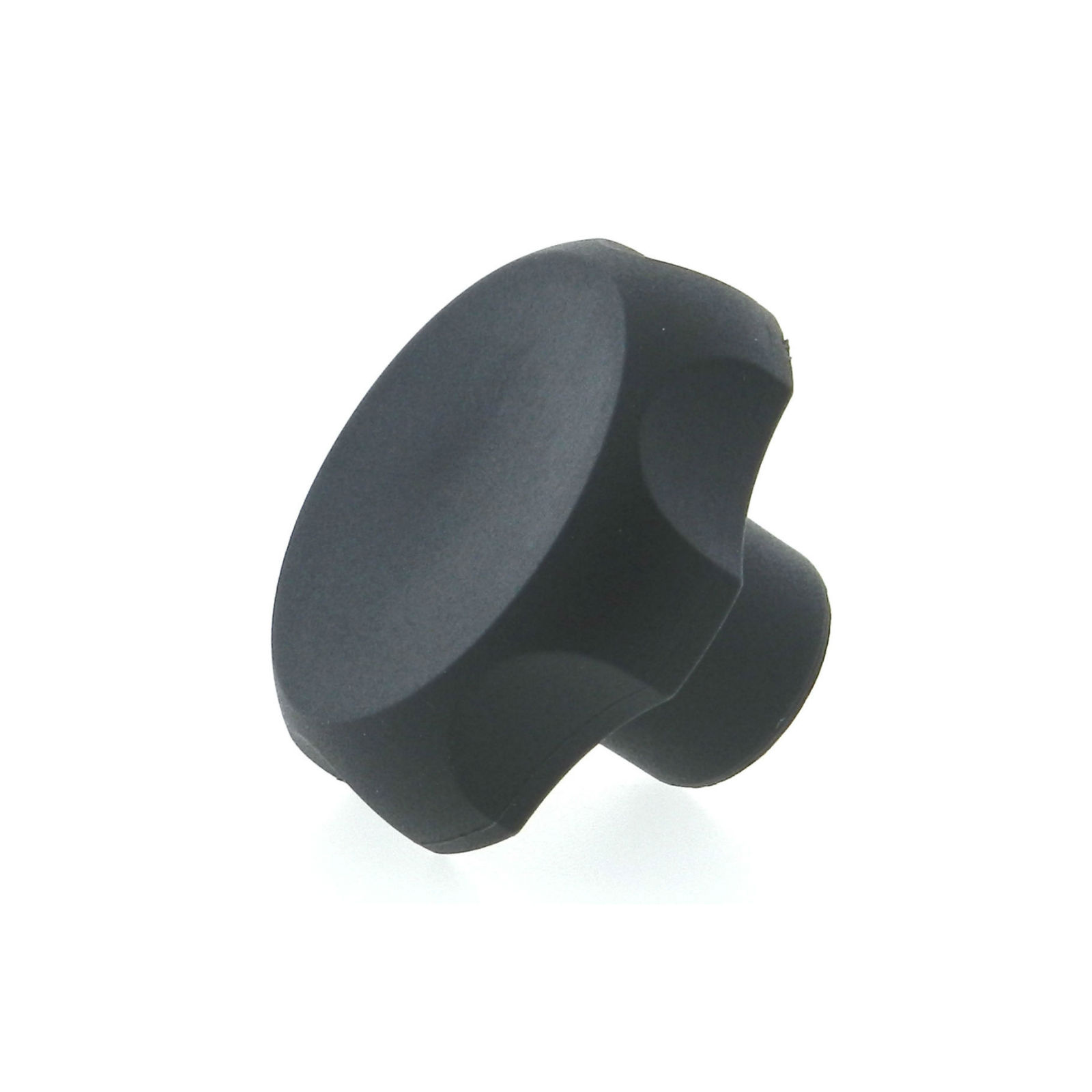

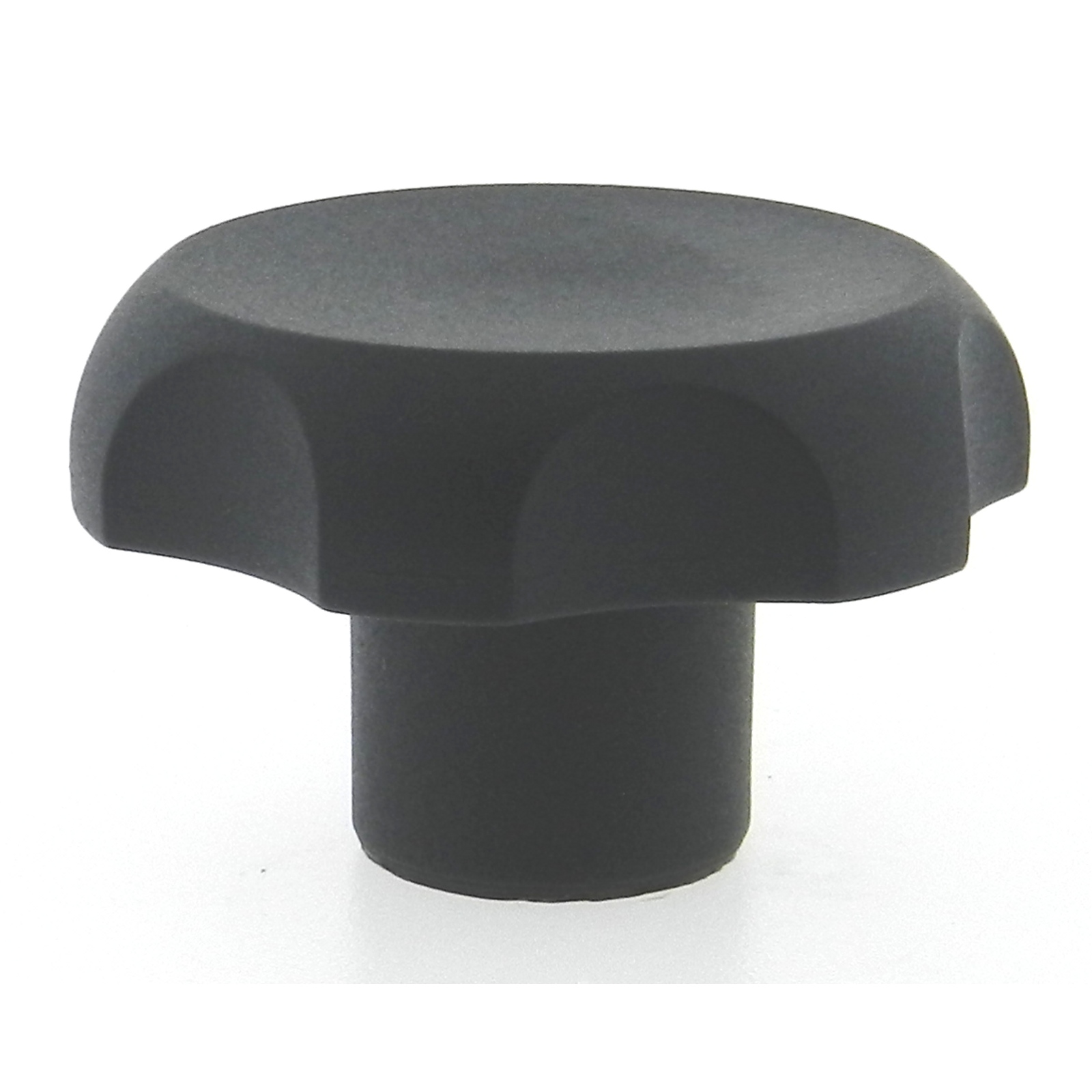

Thermoplastic 6 Lobe Knob - Tapped

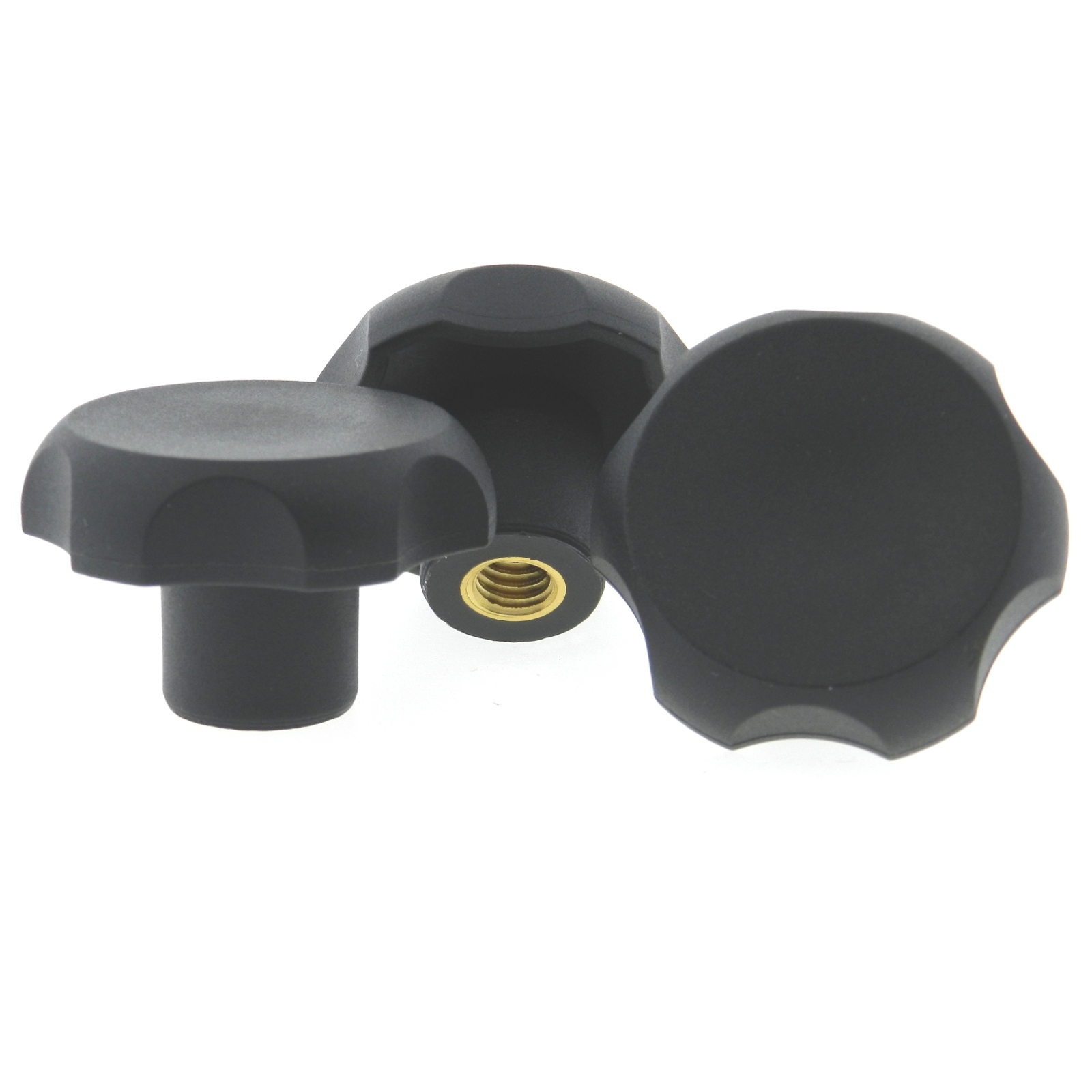

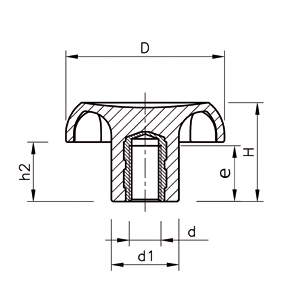

JBF National’s tapped thermoplastic 6 lobe knob ensures maximum palm comfort and grip. This hand knob (also known as a clamping knob) features a molded in brass tapped insert and is manufactured from the highest quality thermoplastic. Black or Orange thermoplastic color options, and a variety of thread sizes are available. Please see component diagram below.
| JBF National Part Number | D | d tap | d1 | e | H | h2 | color |
|---|---|---|---|---|---|---|---|
| 1TLK-1669 | 1.26 | 10-24 | 0.53 | 0.35 | 0.79 | 0.43 | black |
| 1TLK-1670 | 1.26 | 10-24 | 0.53 | 0.35 | 0.79 | 0.43 | orange |
| 1TLK-1671 | 1.26 | 1/4-20 | 0.53 | 0.39 | 0.79 | 0.43 | black |
| 1TLK-1672 | 1.26 | 1/4-20 | 0.53 | 0.39 | 0.79 | 0.43 | orange |
| 2TLK-1673 | 1.57 | 1/4-20 | 0.67 | 0.39 | 0.98 | 0.59 | black |
| 2TLK-1674 | 1.57 | 1/4-20 | 0.67 | 0.39 | 0.98 | 0.59 | orange |
| 2TLK-1675 | 1.57 | 5/16-18 | 0.67 | 0.55 | 0.98 | 0.59 | black |
| 2TLK-1676 | 1.57 | 5/16-18 | 0.67 | 0.55 | 0.98 | 0.59 | orange |
