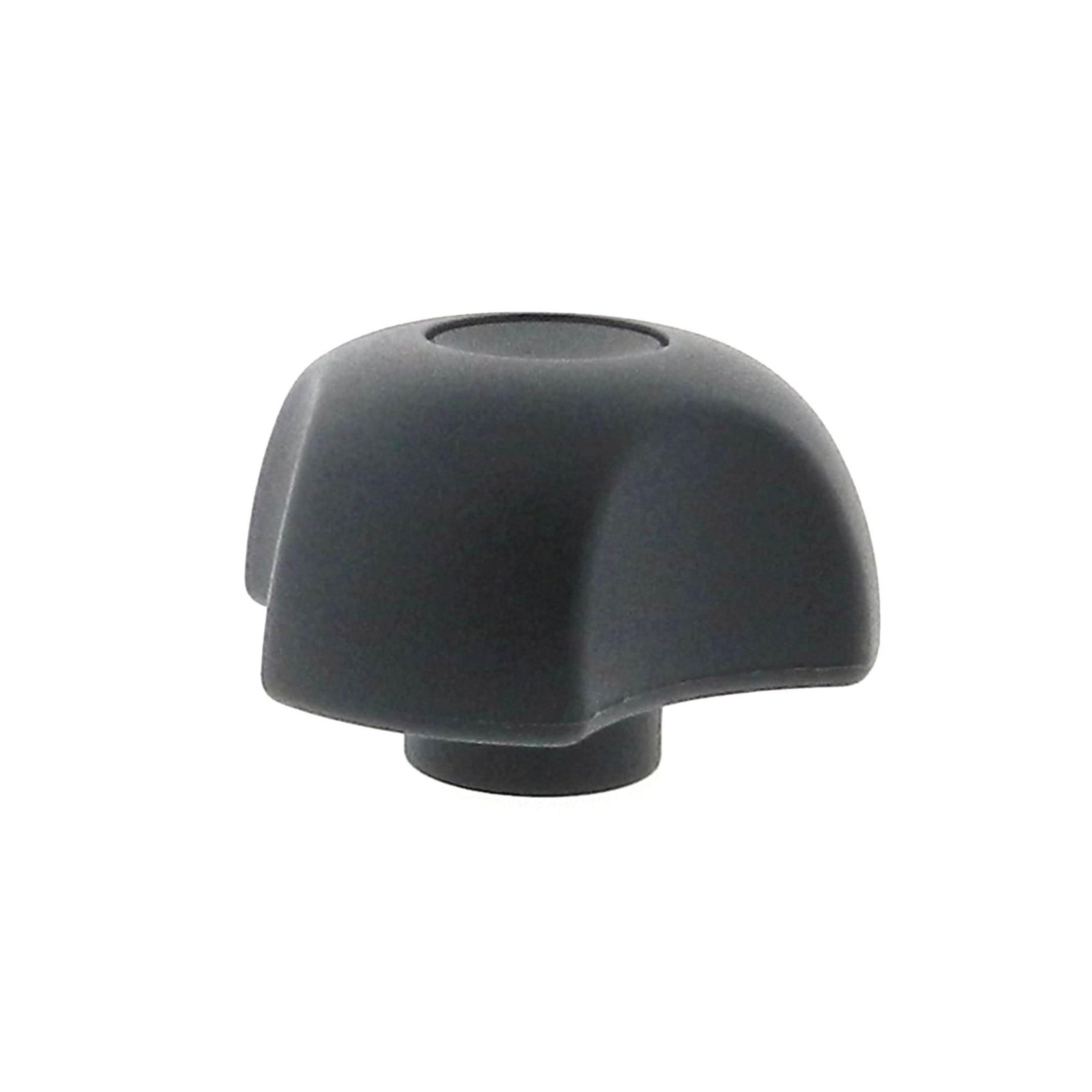

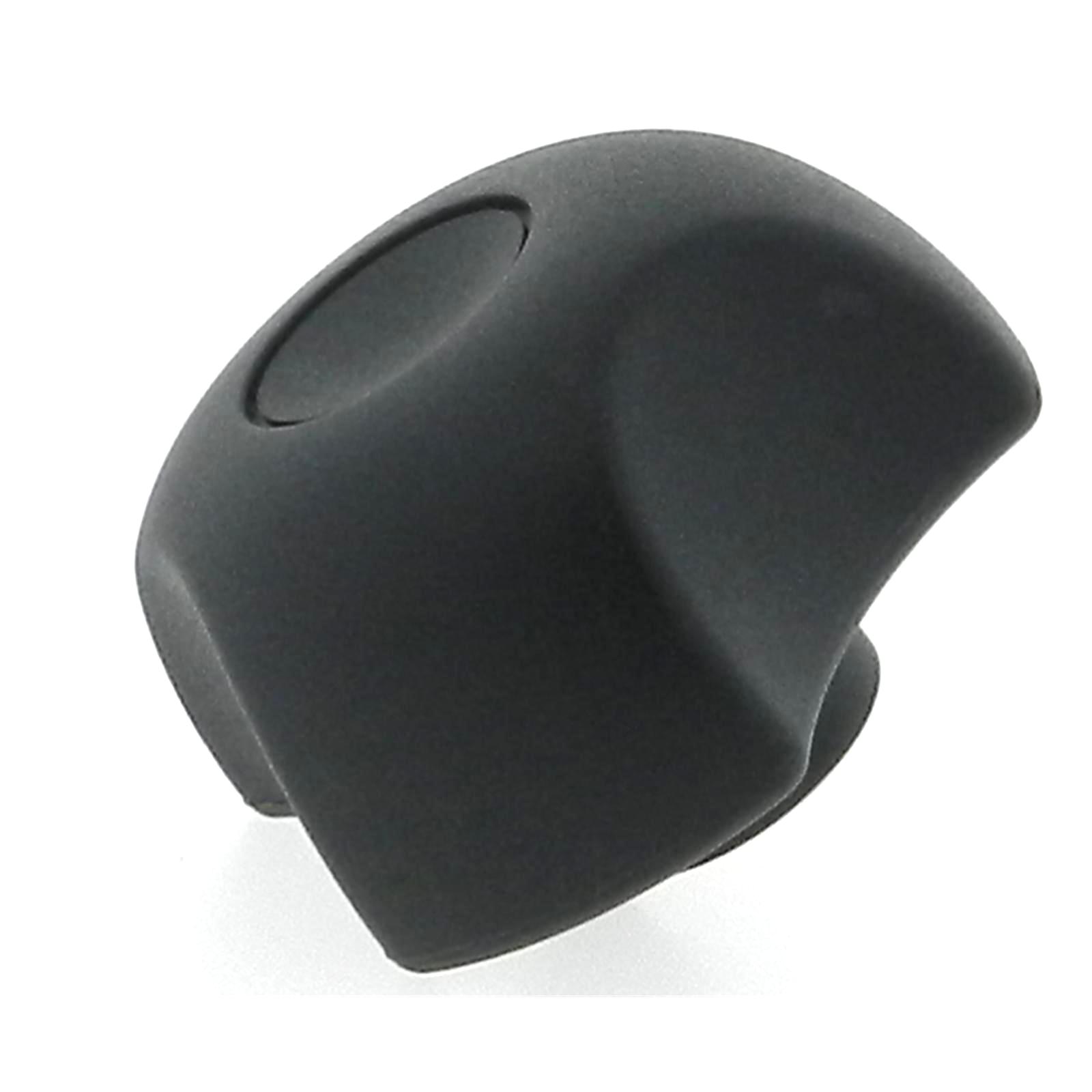

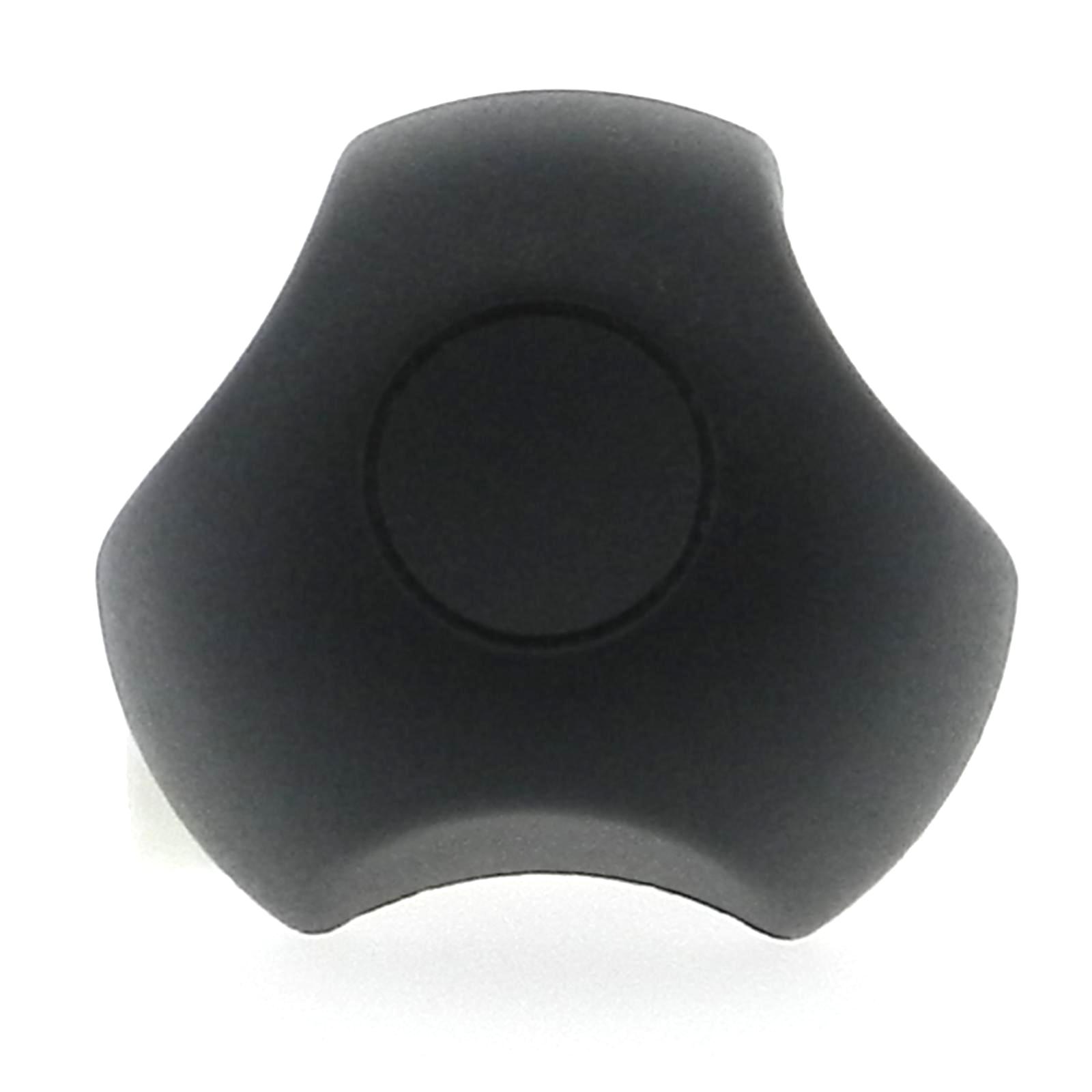

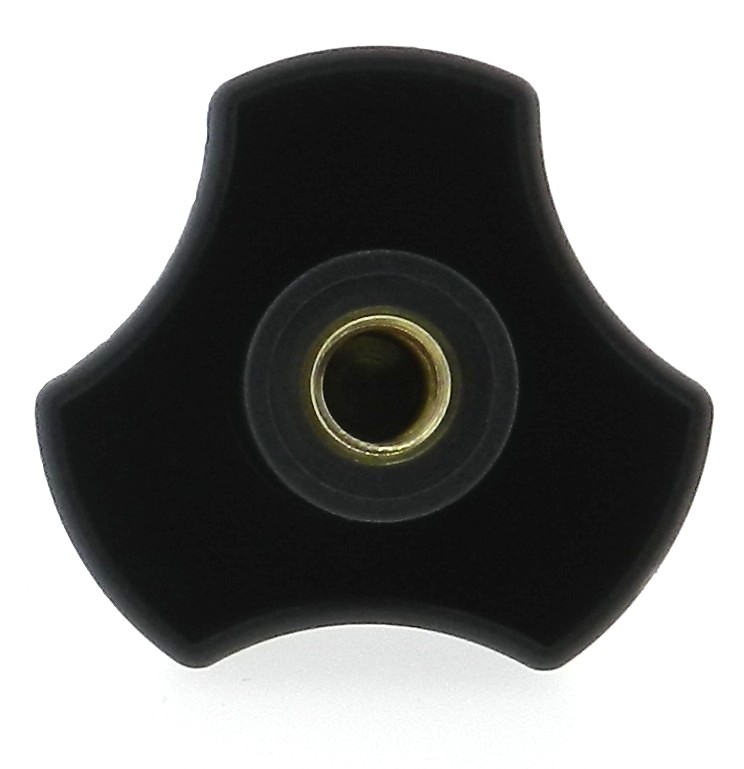

JBF National’s thermoplastic 3 lobe-tapped hand knob features enlarged lobes for maximum grip and palm comfort. This hand knob (also known as a clapming knob) is manufactured from the highest quality thermoplastic and is available in both black and orange. Comes with molded in brass tapped or stainless steel insert. Variety of thread sizes available. Please see component diagram below.
JBF National Part Number / Brass Insert | D | d tap | d1 | e | H | h2 | color |
---|---|---|---|---|---|---|---|
1TLK-1558 | 0.98 | 10-24 | 0.47 | 0.35 | 0.69 | 0.2 | black |
1TLK-1559 | 0.98 | 10-24 | 0.47 | 0.35 | 0.69 | 0.2 | orange |
1TLK-1560 | 0.98 | 1/4-20 | 0.47 | 0.39 | 0.69 | 0.2 | black |
1TLK-1561 | 0.98 | 1/4-20 | 0.47 | 0.39 | 0.69 | 0.2 | orange |
2TLK-1562 | 1.26 | 10-24 | 0.55 | 0.35 | 0.8 | 0.23 | black |
2TLK-1563 | 1.26 | 10-24 | 0.55 | 0.35 | 0.8 | 0.23 | orange |
2TLK-1564 | 1.26 | 1/4-20 | 0.55 | 0.39 | 0.8 | 0.23 | black |
2TLK-1565 | 1.26 | 1/4-20 | 0.55 | 0.39 | 0.8 | 0.23 | orange |
3TLK-1566 | 1.57 | 1/4-20 | 0.68 | 0.39 | 1 | 0.27 | black |
3TLK-1567 | 1.57 | 1/4-20 | 0.68 | 0.39 | 1 | 0.27 | orange |
3TLK-1568 | 1.57 | 5/16-18 | 0.68 | 0.55 | 1 | 0.27 | black |
3TLK-1569 | 1.57 | 5/16-18 | 0.68 | 0.55 | 1 | 0.27 | orange |
4TLK-1570 | 1.97 | 5/16-18 | 0.76 | 0.55 | 1.27 | 0.35 | black |
4TLK-1571 | 1.97 | 5/16-18 | 0.76 | 0.55 | 1.27 | 0.35 | orange |
4TLK-1572 | 1.97 | 3/8-16 | 0.76 | 0.66 | 1.27 | 0.35 | black |
4TLK-1573 | 1.97 | 3/8-16 | 0.76 | 0.66 | 1.27 | 0.35 | orange |
5TLK-1574 | 2.48 | 3/8-16 | 0.92 | 0.66 | 1.57 | 0.47 | black |
5TLK-1575 | 2.48 | 3/8-16 | 0.92 | 0.66 | 1.57 | 0.47 | orange |
5TLK-1576 | 2.48 | 1/2-13 | 0.92 | 0.75 | 1.57 | 0.47 | black |
5TLK-1577 | 2.48 | 1/2-13 | 0.92 | 0.75 | 1.57 | 0.47 | orange |
JBF National Part Number / Stainless Steel Insert | D | d tap | d1 | e | H | h2 | color |
---|---|---|---|---|---|---|---|
1TLK-1578SS | 1.26 | 1/4-20 | 0.55 | 0.39 | 0.8 | 0.23 | black |
2TLK-1579SS | 1.57 | 5/16-18 | 0.68 | 0.55 | 1 | 0.27 | black |
3TLK-1580SS | 1.97 | 3/8-16 | 0.76 | 0.66 | 1.27 | 0.35 | black |
