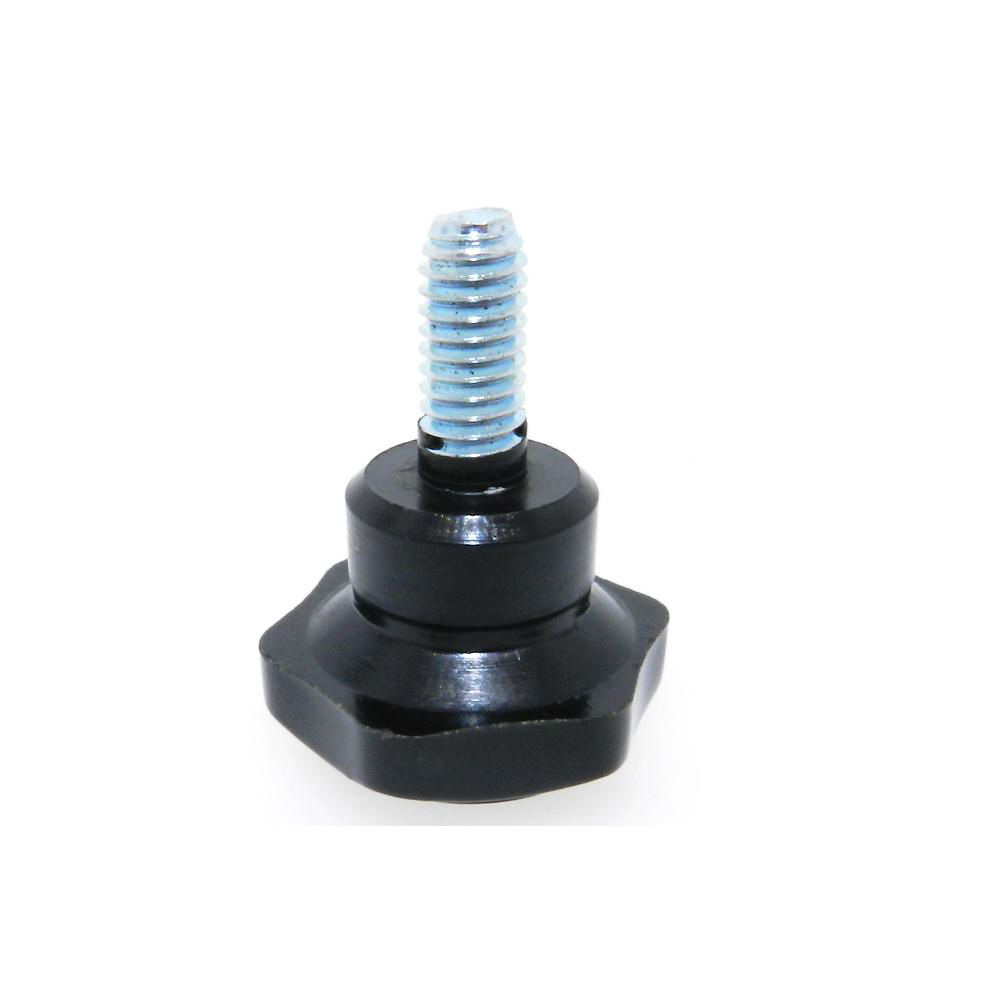

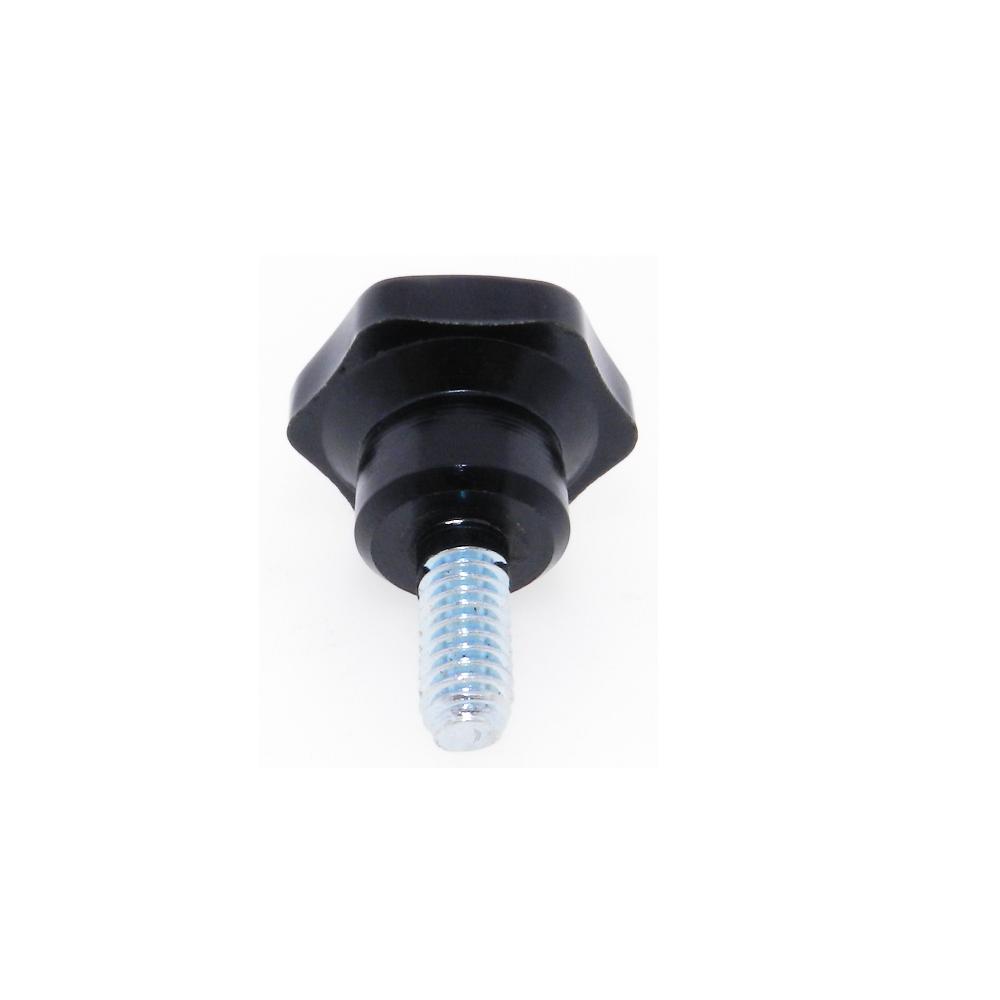

Plastic Duroplast 6 Lobe Knob - Studded

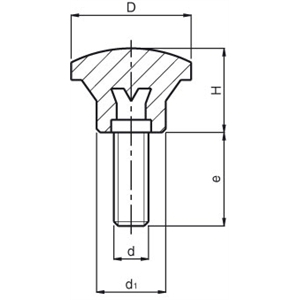

JBF National’s 6 lobe hand knob is manufactured from the highest quality black duroplast and molded in steel stud. Due to the lack of mold lines and combined with the smooth edges of its black duroplast grip, continued operator palm comfort is ensured. Variety of stud lengths available. Please see component diagram below.
| JBF National Part Number | D | d thread | d1 | e length | H |
|---|---|---|---|---|---|
| 1PDLK-1524 | 0.87 | 1/4-20 | 0.47 | 0.75 | 0.75 |
| 2PDLK-1525 | 1.3 | 1/4-20 | 0.75 | 0.5 | 0.91 |
| 2PDLK-1526 | 1.3 | 1/4-20 | 0.75 | 1 | 0.91 |
| 2PDLK-1527 | 1.3 | 5/16-18 | 0.75 | 0.75 | 0.91 |
| 2PDLK-1528 | 1.3 | 5/16-18 | 0.75 | 1 | 0.91 |
| 2PDLK-1529 | 1.3 | 5/16-18 | 0.75 | 1.5 | 0.91 |
| 3PDLK-1530 | 1.73 | 3/8-16 | 0.91 | 1 | 1.06 |
| 3PDLK-1531 | 1.73 | 3/8-16 | 0.91 | 1.25 | 1.06 |
| 3PDLK-1532 | 1.73 | 3/8-16 | 0.91 | 1.75 | 1.06 |
| 4PDLK-1533 | 2.17 | 3/8-16 | 0.98 | 1.5 | 1.3 |
| 4PDLK-1534 | 2.17 | 1/2-13 | 0.98 | 1.5 | 1.3 |
| 4PDLK-1535 | 2.17 | 1/2-13 | 0.98 | 2 | 1.3 |
| 5PDLK-1536 | 2.6 | 1/2-13 | 1.18 | 1.5 | 1.65 |
| 5PDLK-1537 | 2.6 | 1/2-13 | 1.18 | 2 | 1.65 |
