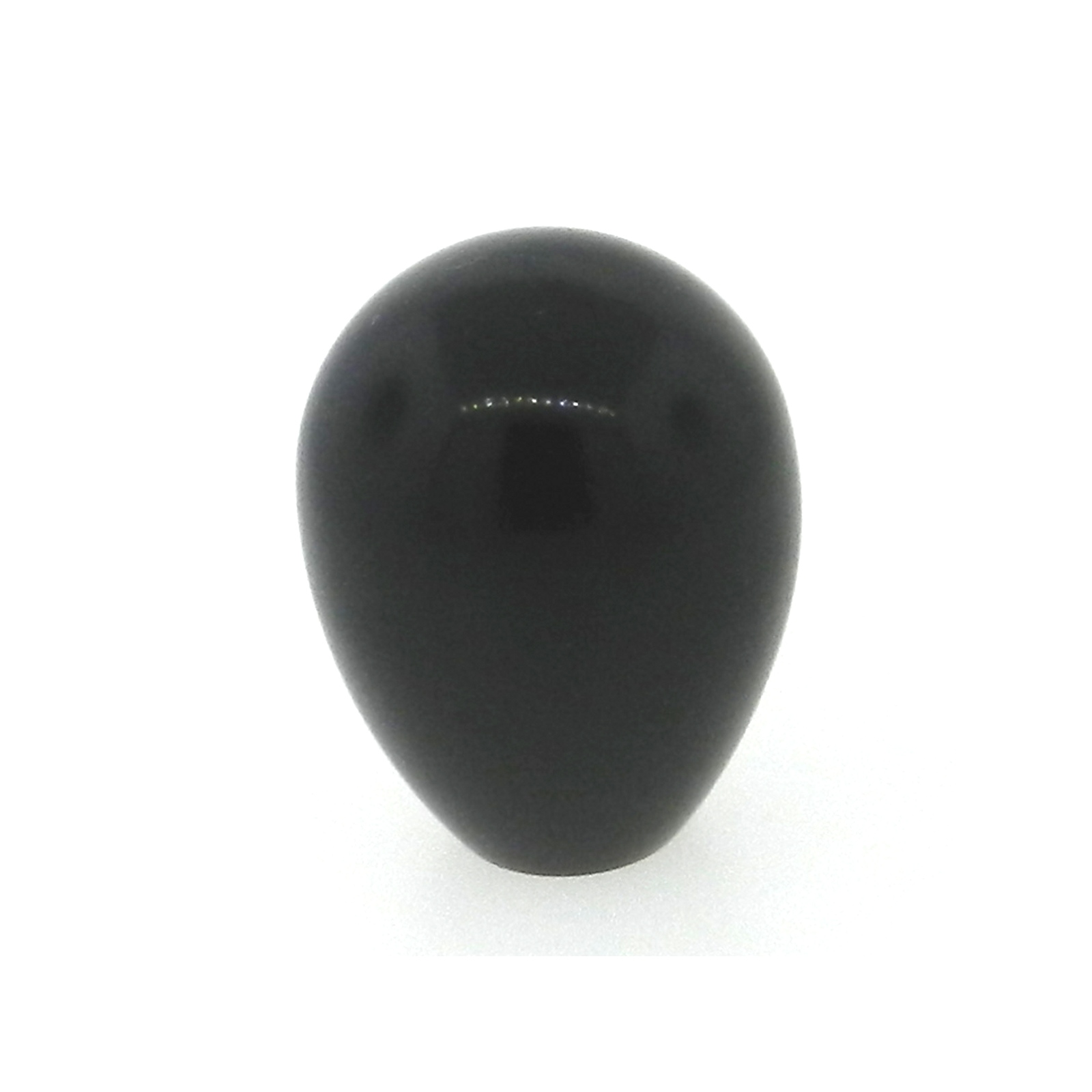

Phenolic Oval Knob

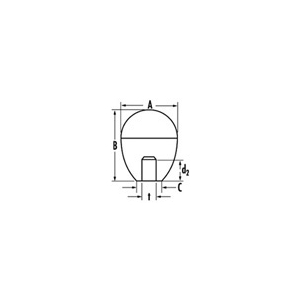

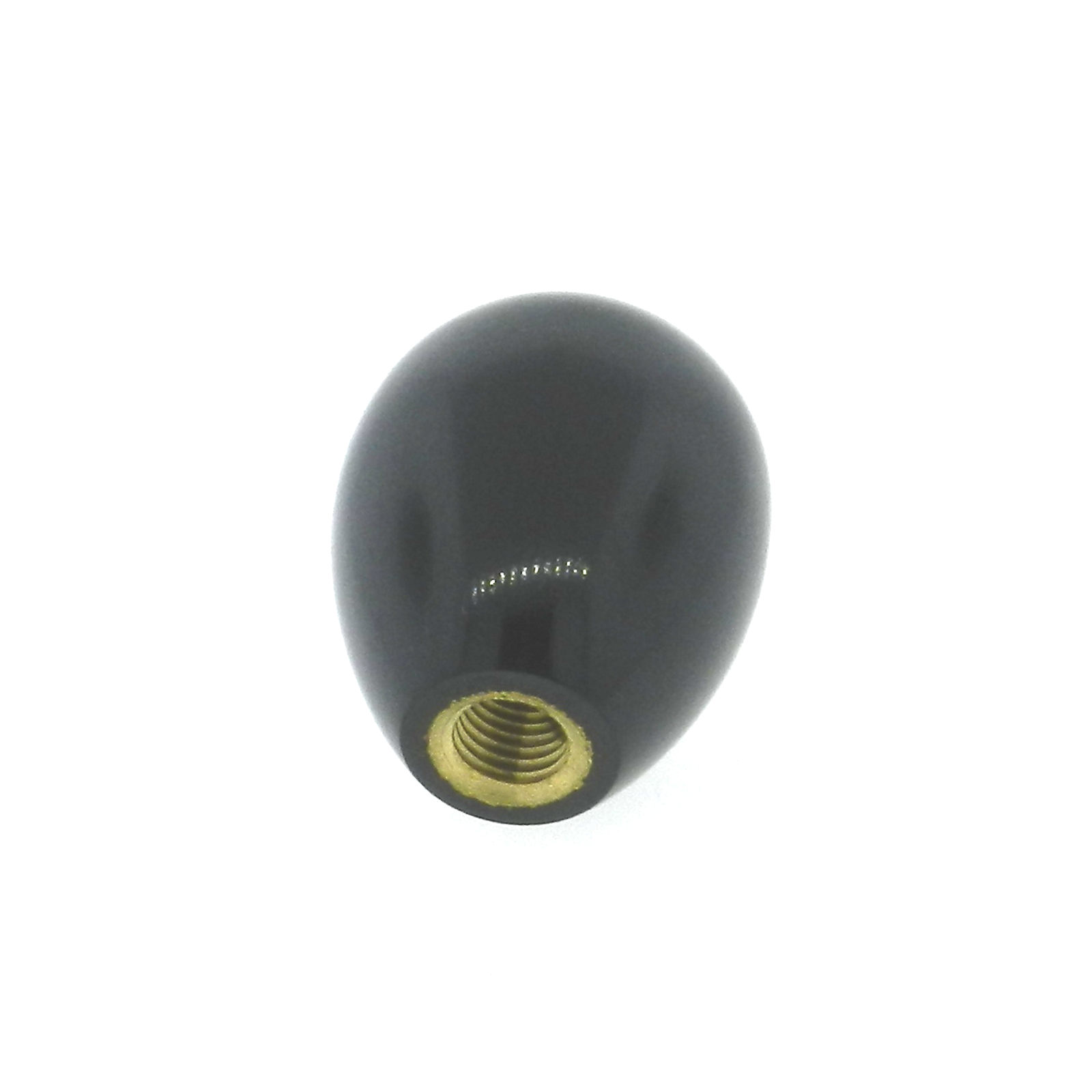

JBF National’s phenolic oval knob comes with a high quality brass insert, and due to the high gloss finish and lack of mold lines, this phenolic knob ensures the operator’s continued palm comfort. Please see component diagram below.
| JBF National Part Number | A | B | C | d2 | t |
|---|---|---|---|---|---|
| 1POK-1467 | 1.12 | 1.47 | 0.5 | 0.5 | 1/4-20 |
| 1POK-1468 | 1.12 | 1.47 | 0.5 | 0.5 | 5/16-24 |
| 1POK-1469 | 1.12 | 1.47 | 0.5 | 0.5 | 5/16-18 |
| 1POK-1470 | 1.12 | 1.47 | 0.5 | 0.5 | 3/8-24 |
| 1POK-1471 | 1.12 | 1.47 | 0.5 | 0.5 | 3/8-16 |
