Phenolic Knurled Knob - Tapped

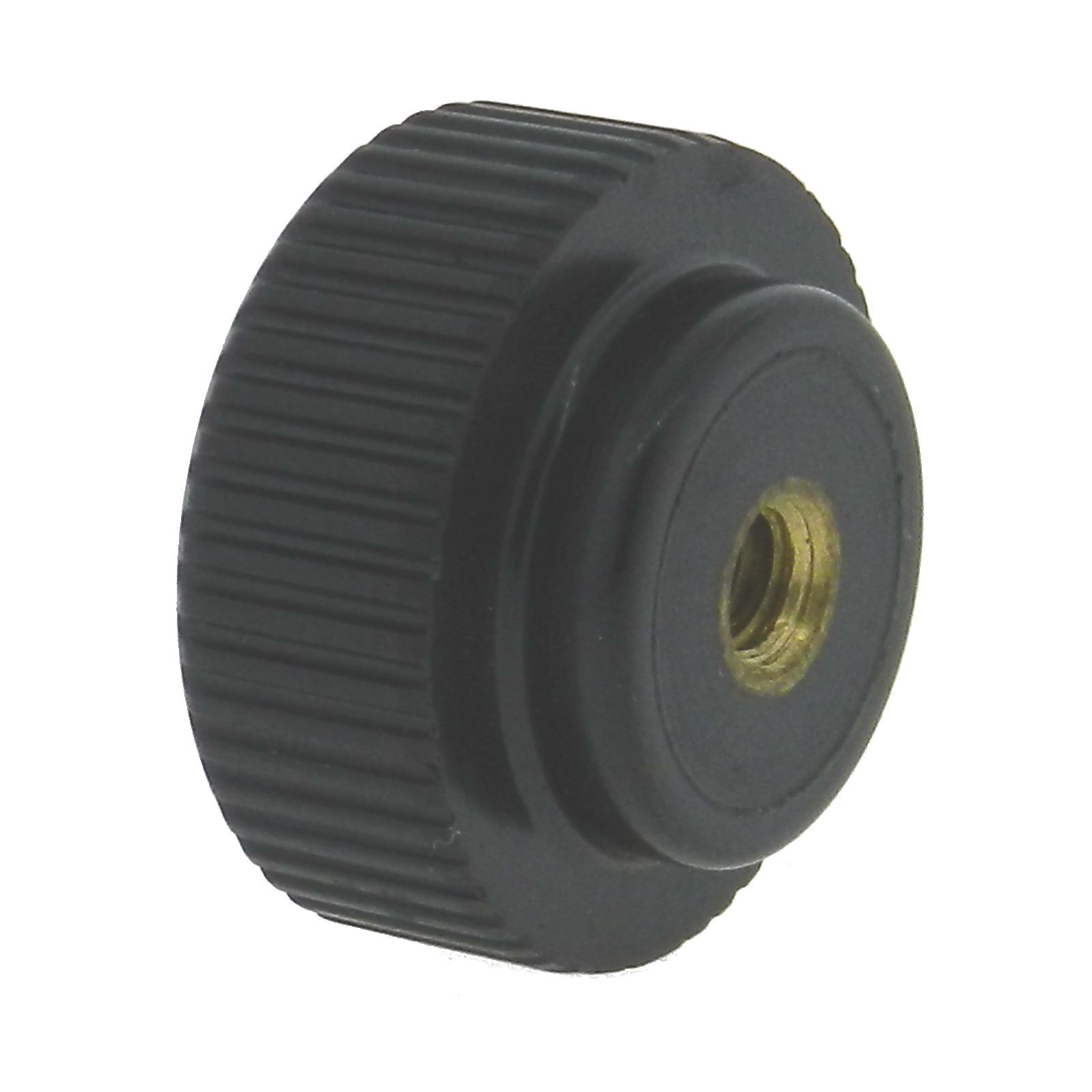

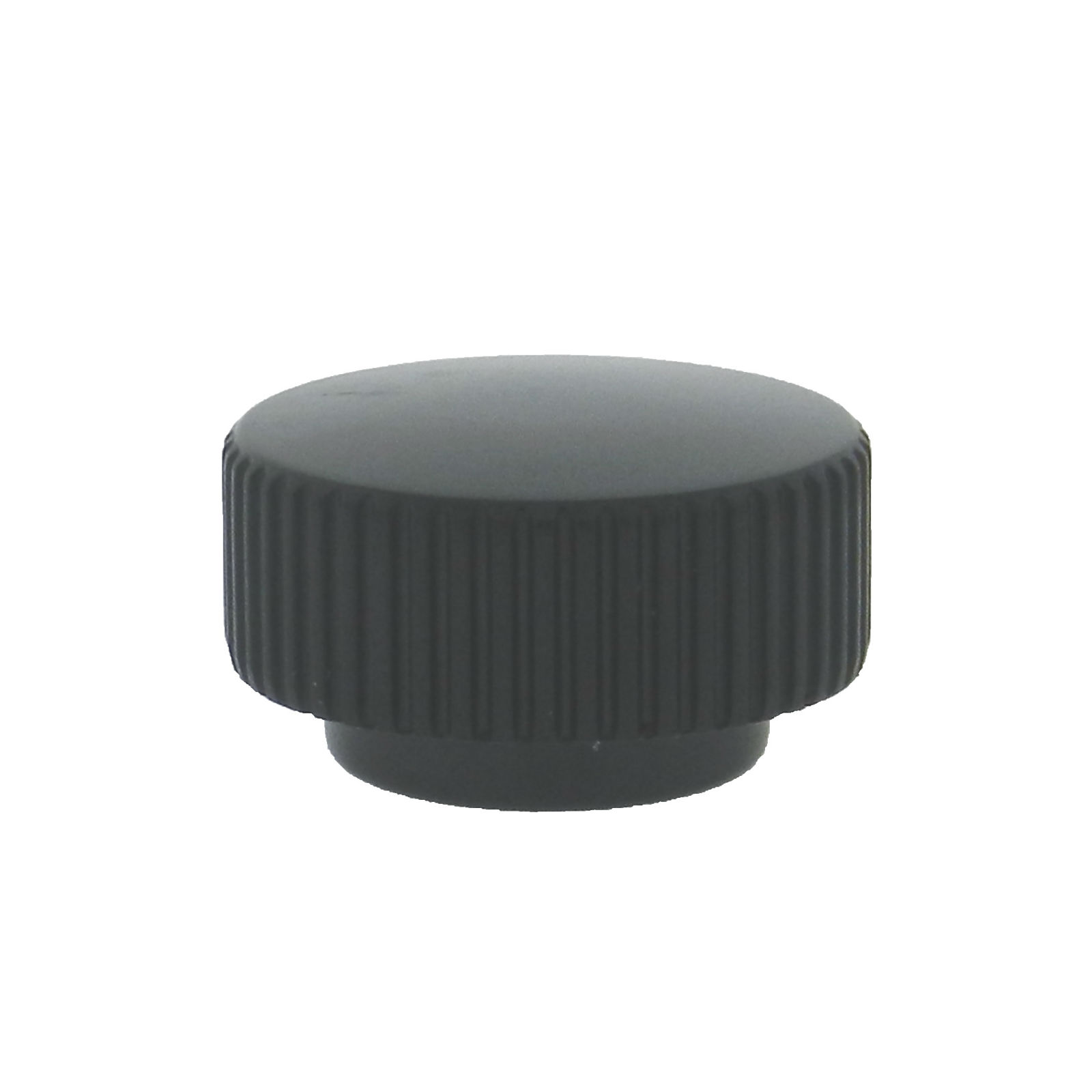

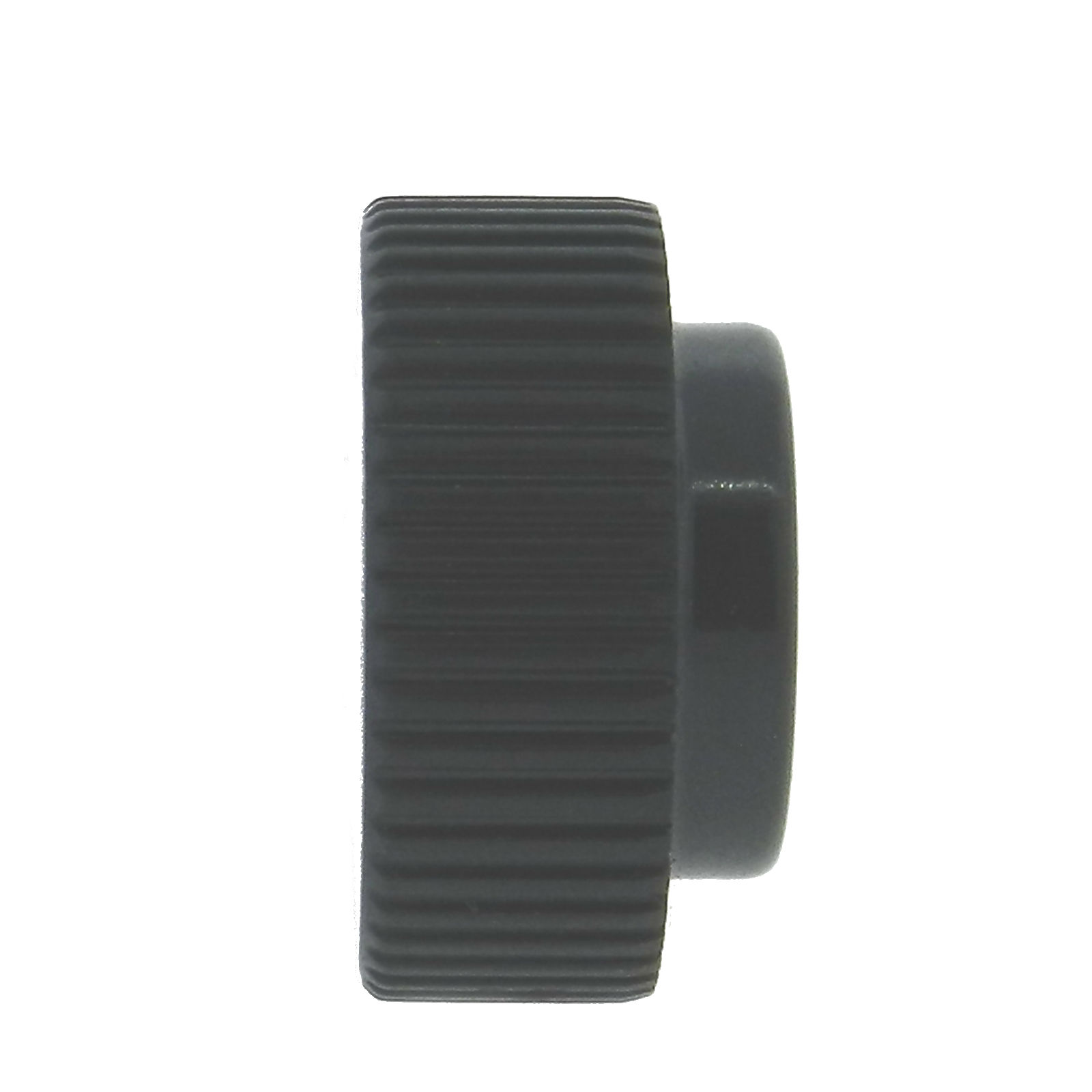

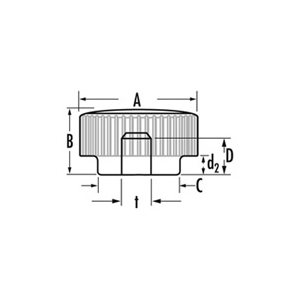

JBF National’s phenolic tapped knurled knob comes with a high quality brass tapped insert. The ribbing on the rim of this phenolic knob ensures the highest possible palm grip, in even the oiliest or wettest of situations. Please see component diagram below.
| JBF National Part Number | A | B | C | D | d2 | t |
|---|---|---|---|---|---|---|
| 1FKT-1464 | 1.00" | 0.51" | 0.69" | 0.16" | 0.37" | 10-32 |
| 1FKT-1465 | 1.00" | 0.51" | 0.69" | 0.16" | 0.37" | 10-24 |
| 1FKT-1466 | 1.00" | 0.51" | 0.69" | 0.16" | 0.37" | 1/4-20 |
