Knurled Control Knobs - Solid Hub

Knurled Control Knobs - Solid Hub
Knurled Control Knobs - Solid Hub
Knurled Control Knobs - Solid Hub

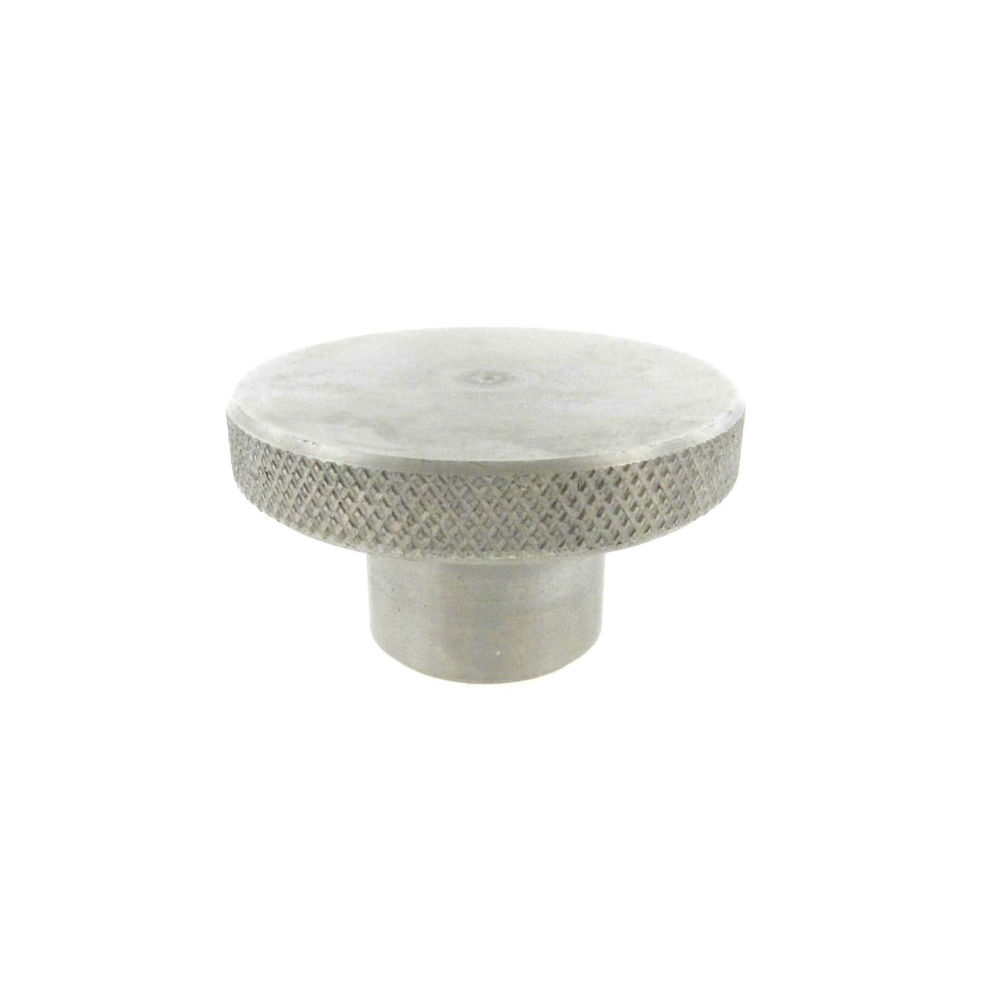

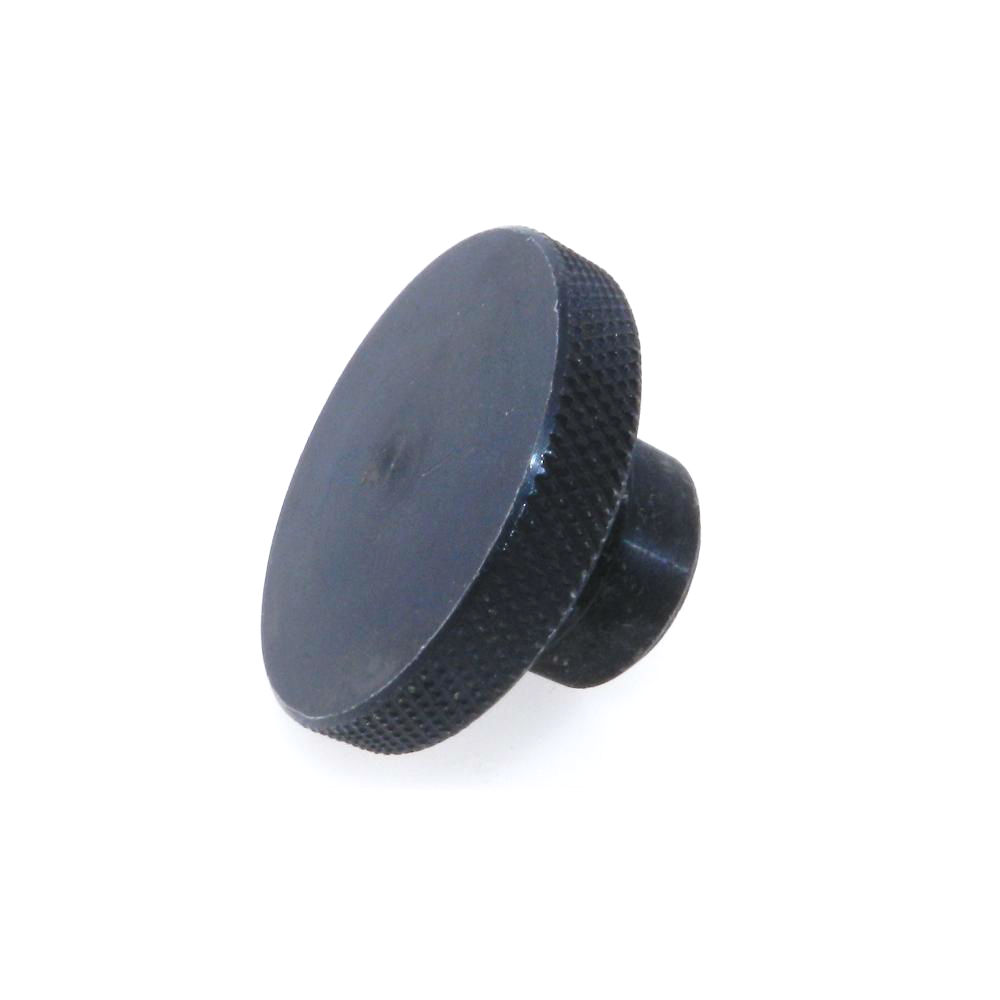

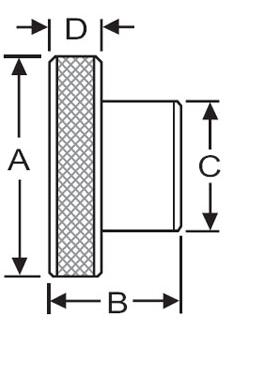

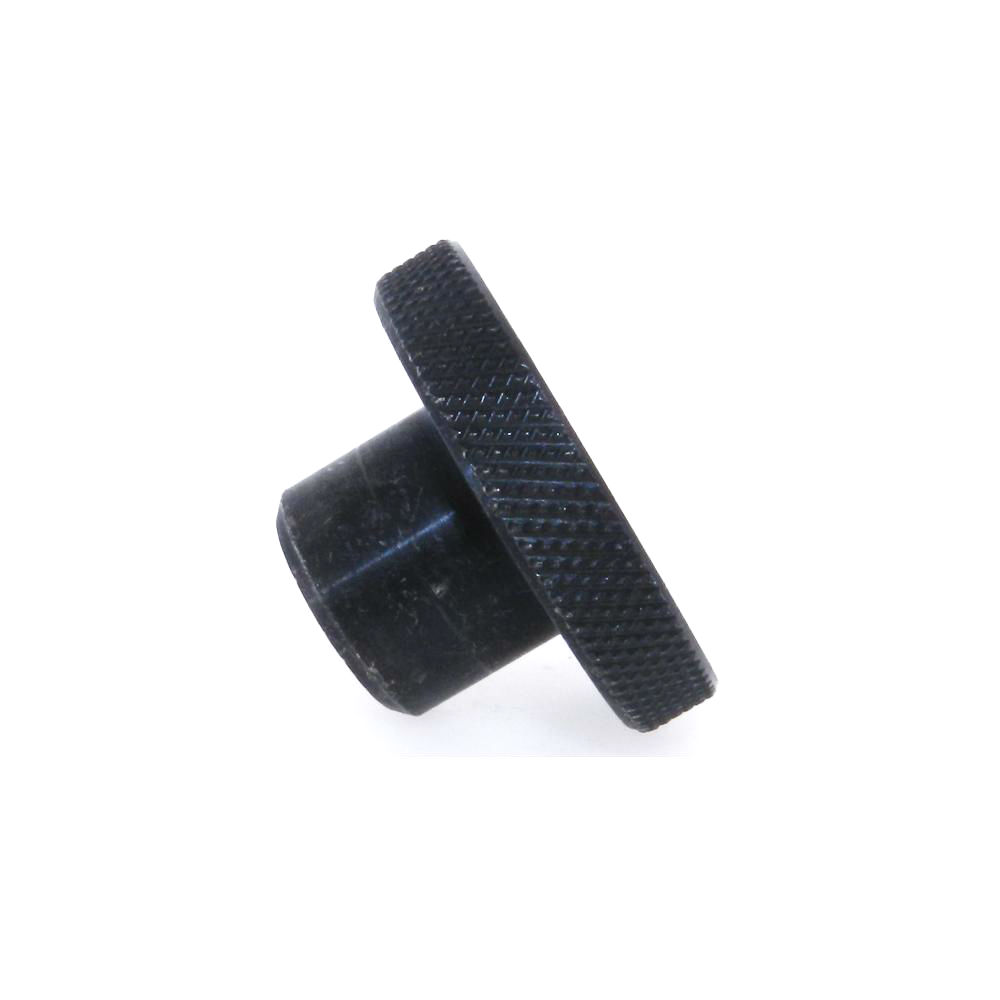

JBF National’s knurled control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and features a solid hub. Please see component diagram below.

JBF National Part Number-SteelJBF National Part Number-StainlessKnob Dia (A)Total Length (B)Hub Dia (C)Knurled Width (D)Ship Wt (lbs)
1KCK-12261KCK-1226SS3/45/81/21/40.04
2KCK-12272KCK-1227SS13/45/81/40.08
3KCK-12283KCK-1228SS1 1/213/45/160.20
4KCK-12294KCK-1229SS21 1/813/80.46
5KCK-12305KCK-1230SS2 1/21 1/21 1/29/161.16
6KCK-12316KCK-1231SS31 3/41 3/45/81.96
