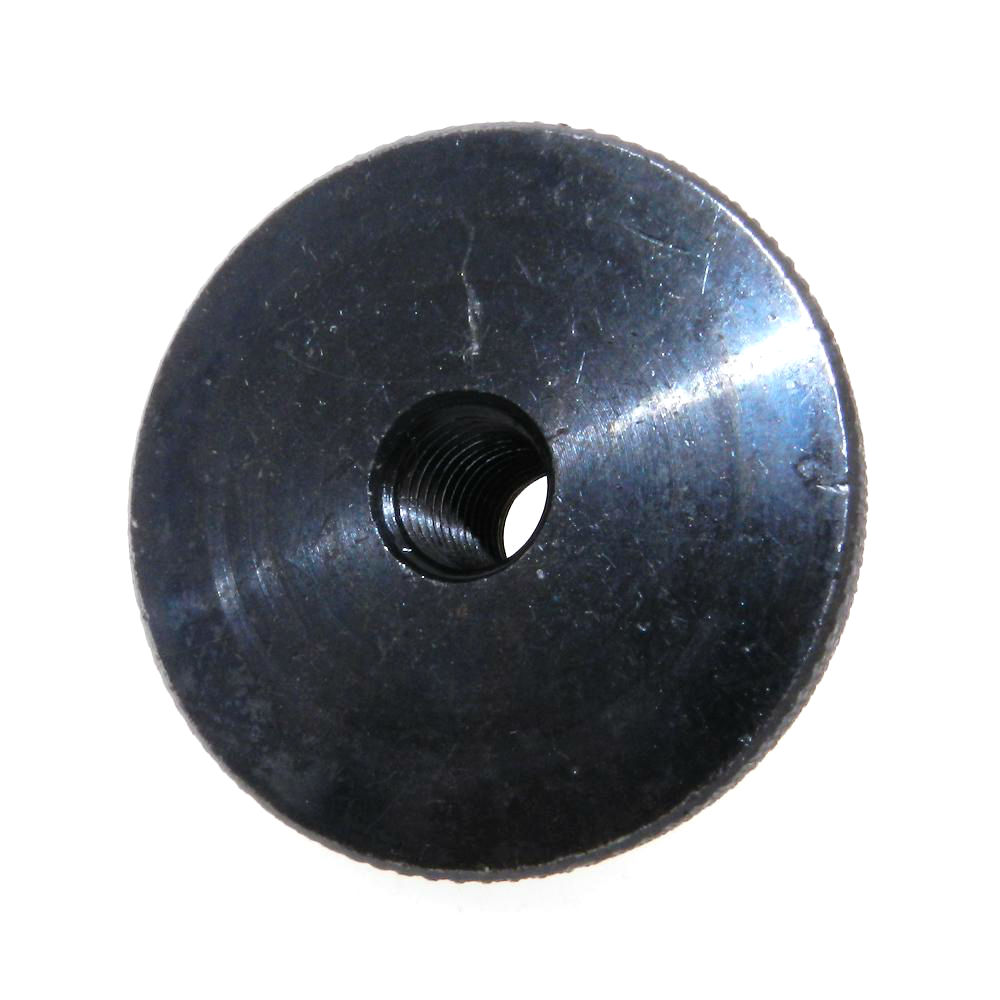

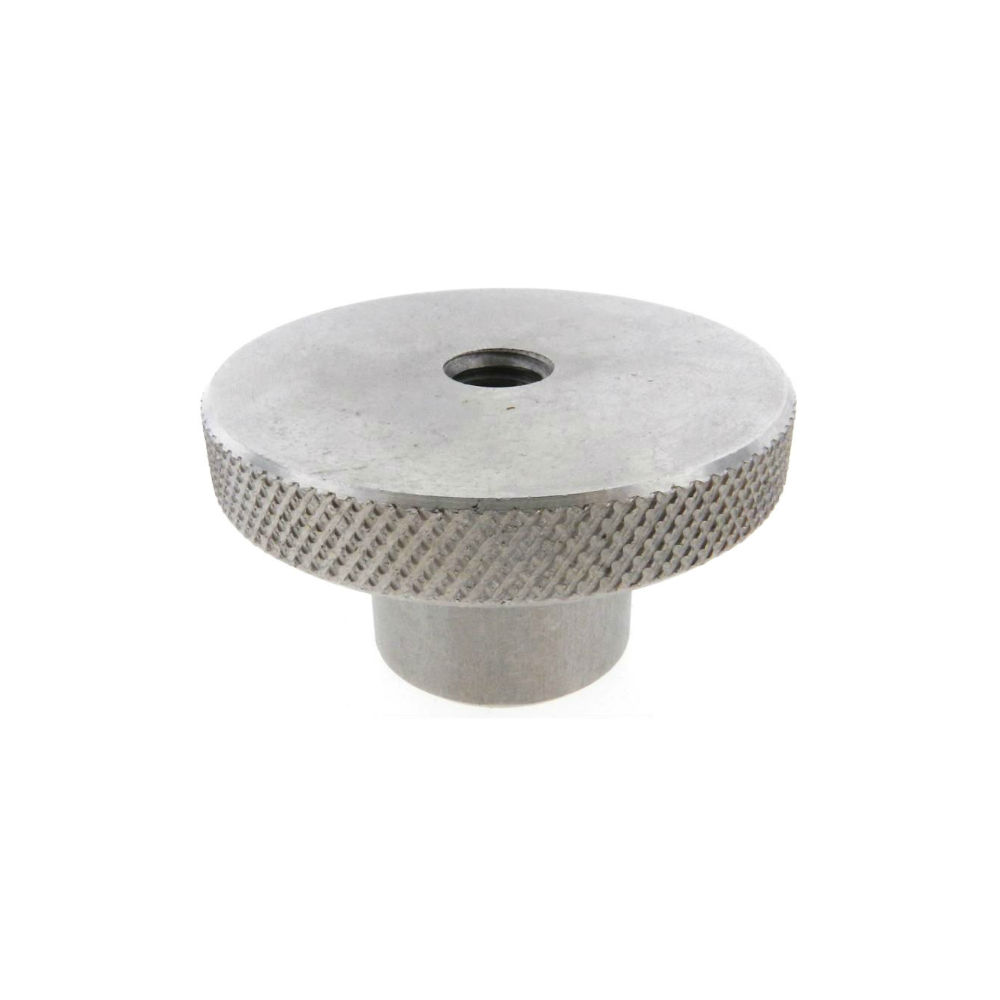

Knurled Control Knobs - Reamed Through without Set Screw

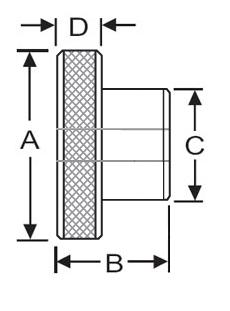

JBF National’s knurled reamed through control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed through without set screw. Please see component diagram below.
| JBF P/N-Steel | JBF P/N-Stainless | Reamed Dia | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|
| 1KCK-1190 | 1KCK-1190SS | 3/16" | 3/4" | 5/8" | 1/2" | 1/4" | 0.04 |
| 1KCK-1191 | 1KCK-1191SS | 1/4" | 3/4" | 5/8" | 1/2" | 1/4" | 0.04 |
| 2KCK-1192 | 2KCK-1192SS | 1/4" | 1" | 3/4" | 5/8" | 1/4" | 0.08 |
| 2KCK-1193 | 2KCK-1193SS | 5/16" | 1" | 3/4" | 5/8" | 1/4" | 0.08 |
| 3KCK-1194 | 3KCK-1194SS | 5/16" | 1 1/2" | 1" | 3/4" | 5/16" | 0.20 |
| 3KCK-1195 | 3KCK-1195SS | 3/8" | 1 1/2" | 1" | 3/4" | 5/16" | 0.20 |
| 4KCK-1196 | 4KCK-1196SS | 3/8" | 2" | 1 1/8" | 1" | 3/8" | 0.46 |
| 4KCK-1197 | 4KCK-1197SS | 1/2" | 2" | 1 1/8" | 1" | 3/8" | 0.46 |
| 5KCK-1198 | 5KCK-1198SS | 1/2" | 2 1/2" | 1 1/2" | 1 1/2" | 9/16" | 1.16 |
| 5KCK-1199 | 5KCK-1199SS | 5/8" | 2 1/2" | 1 1/2" | 1 1/2" | 6/16" | 1.16 |
| 6KCK-1200 | 6KCK-1200SS | 5/8" | 3" | 1 3/4" | 1 3/4" | 5/8" | 1.96 |
| 6KCK-1201 | 6KCK-1201SS | 3/4" | 3" | 1 3/4" | 1 3/4" | 5/8" | 1.96 |
