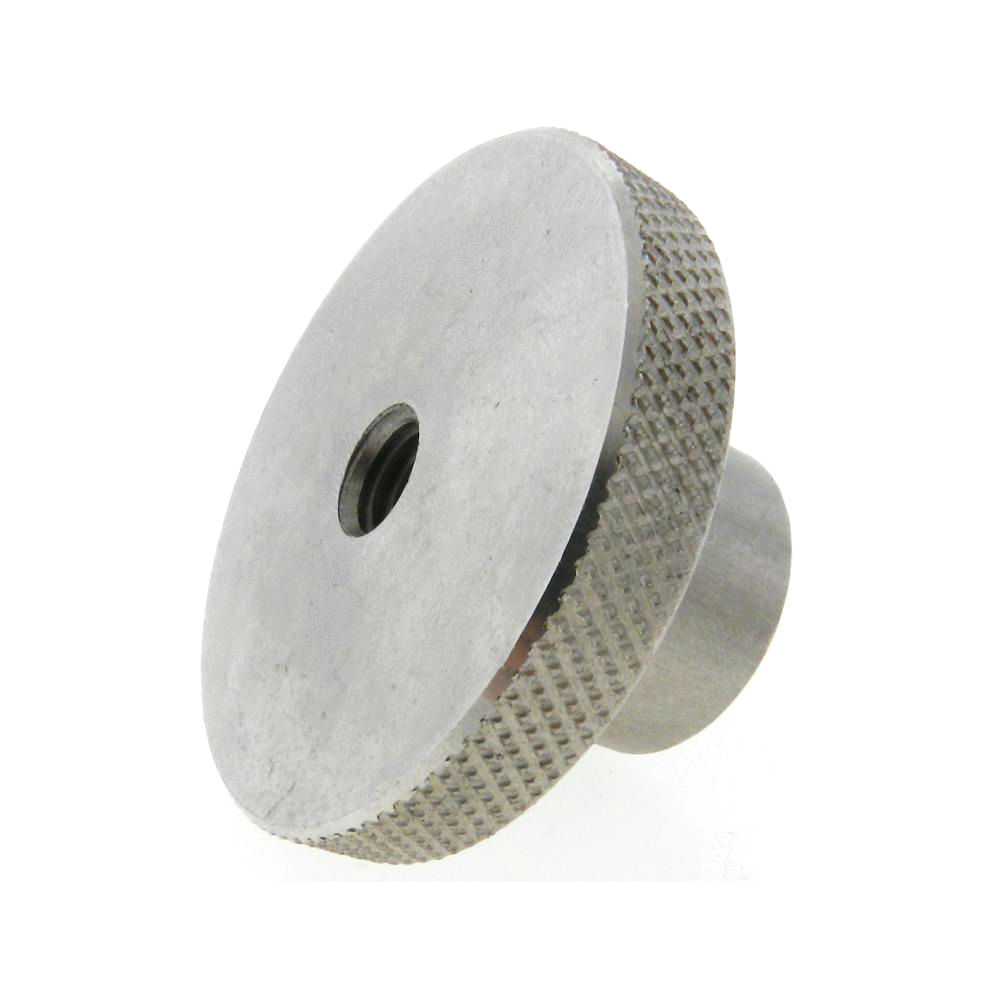

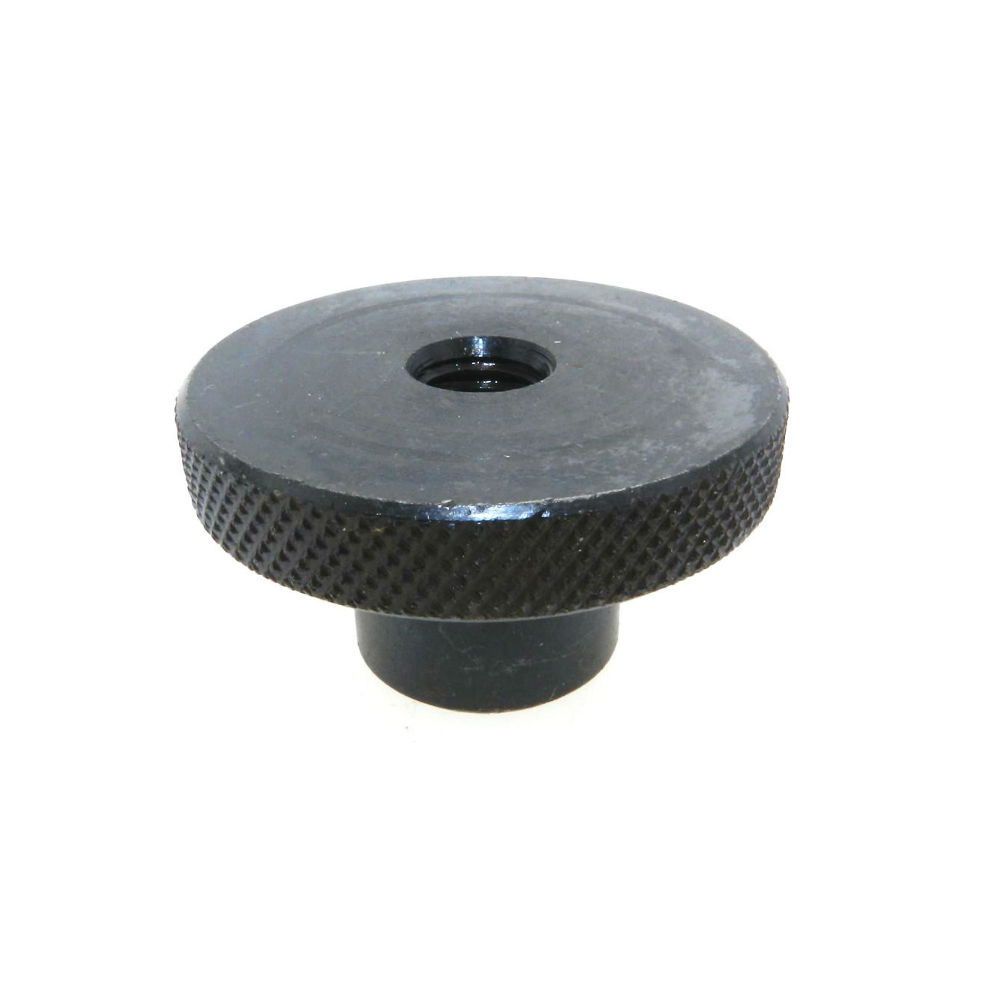

JBF National’s knurled reamed through control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed through with set screw.  Please see component diagram below.

JBF P/N-SteelJBF P/N-StainlessReamed DiaKnob Dia (A)Total Length (B)Hub Dia (C)Knurled Width (D)Ship Wt (lbs)
1KCK-11781KCK-1178SS3/16"3/4"5/8"1/2"1/4"0.04
1KCK-11791KCK-1179SS1/4"3/4"5/8"1/2"1/4"0.04
2KCK-11802KCK-1180SS1/4"1"3/4"5/8"1/4"0.08
2KCK-11812KCK-1181SS5/16"1"3/4"5/8"1/4"0.08
3KCK-11823KCK-1182SS5/16"1 1/2"1"3/4"5/16"0.2
3KCK-11833KCK-1183SS3/8"1 1/2"1"3/4"5/16"0.2
4KCK-11844KCK-1184SS3/8"2"1 1/8"1"3/8"0.46
4KCK-11854KCK-1185SS1/2"2"1 1/8"1"3/8"0.46
5KCK-11865KCK-1186SS1/2"2 1/2"1 1/2"1 1/2"9/16"1.16
5KCK-11875KCK-1187SS5/8"2 1/2"1 1/2"1 1/2"6/16"1.16
6KCK-11886KCK-1188SS5/8"3"1 3/4"1 3/4"5/8"1.96
6KCK-11896KCK-1189SS3/4"3"1 3/4"1 3/4"5/8"1.96
