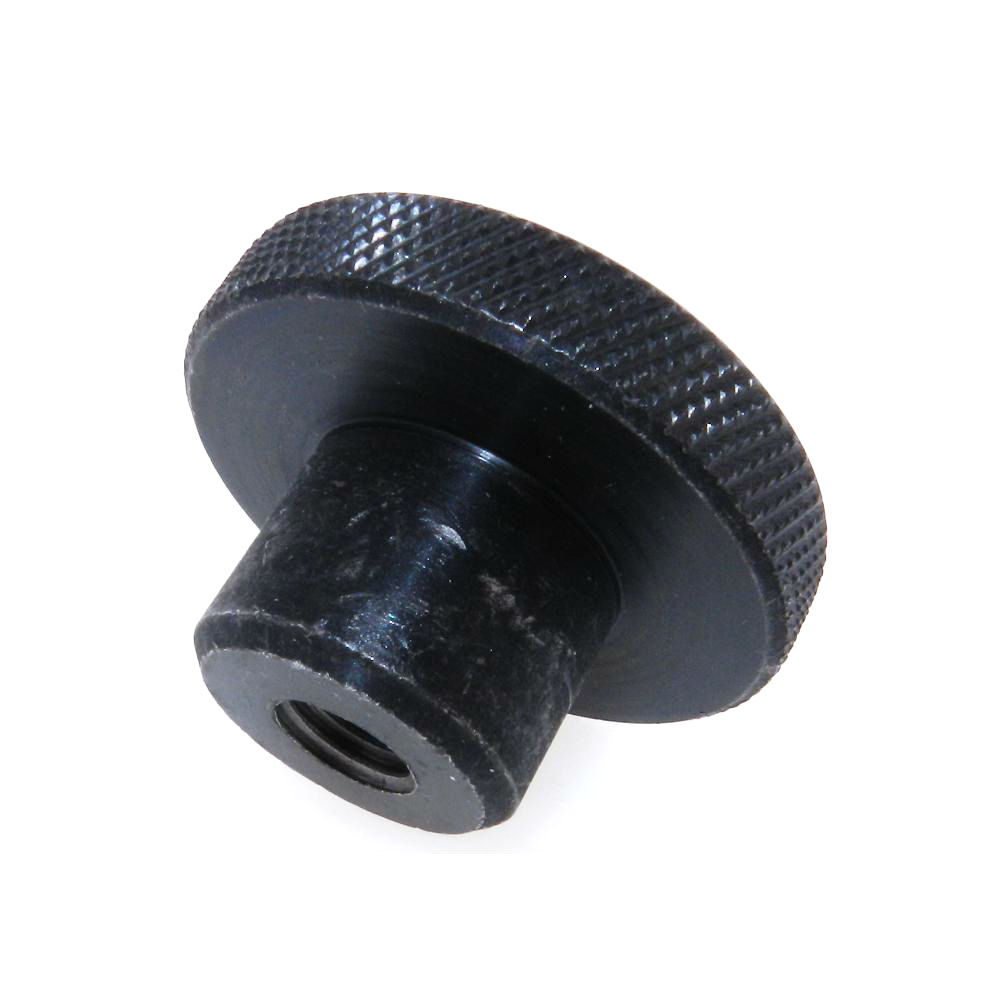

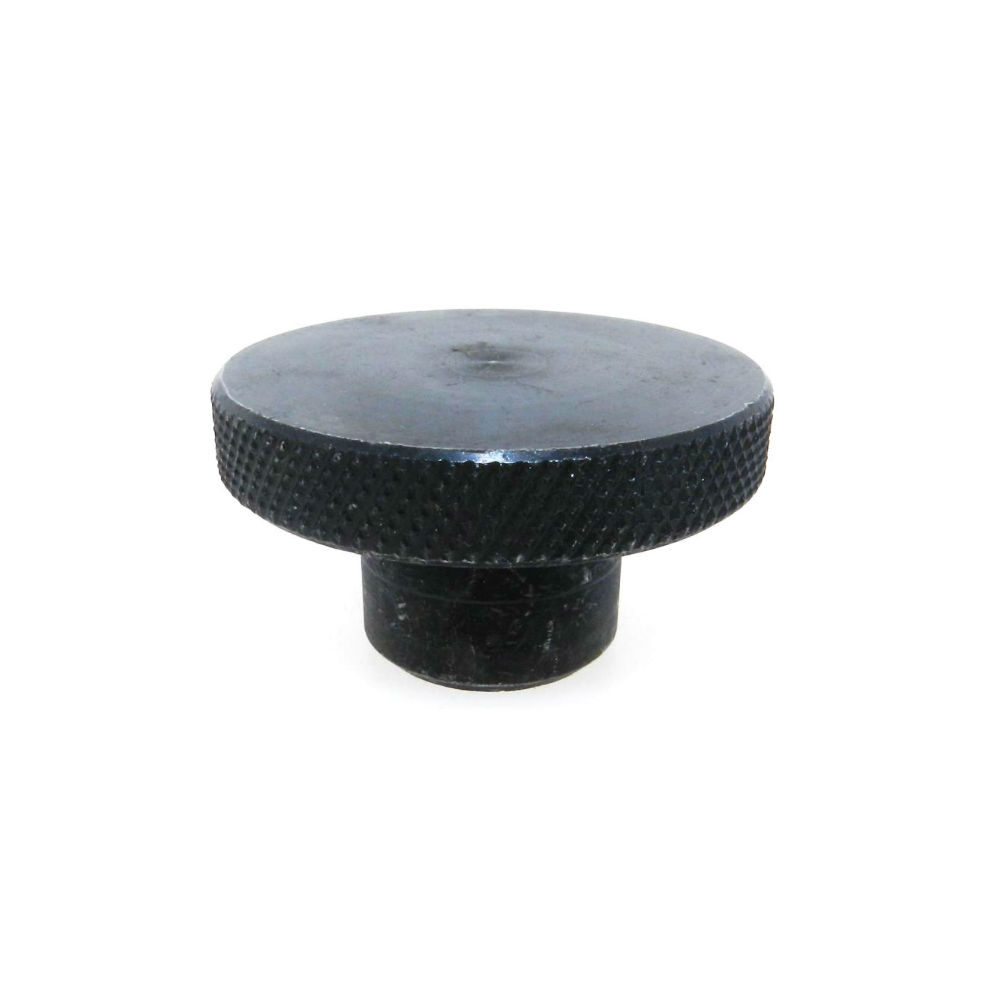

Knurled Control Knobs - Reamed with Set Screw
JBF National’s reamed knurled control knobs are manufactured from the highest quality steel and stainless steel. This control knob features a knurled rim that provides positive hand grip to make quick adjustments even with the oiliest or wettest of hands, and comes reamed with set screw. Please see component diagram below.
| JBF P/N-Steel | JBF P/N-Stainless | Reamed Dia | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Reamed Depth (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|
| 1KCK-1202 | 1KCK-1202SS | 3/16" | 3/4" | 5/8" | 1/2" | 1/4" | 3/8" | 0.04 |
| 1KCK-1203 | 1KCK-1203SS | 1/4" | 3/4" | 5/8" | 1/2" | 1/4" | 3/8" | 0.04 |
| 2KCK-1204 | 2KCK-1204SS | 1/4" | 1" | 3/4" | 5/8" | 1/4" | 1/2" | 0.08 |
| 2KCK-1205 | 2KCK-1205SS | 5/16" | 1" | 3/4" | 5/8" | 1/4" | 1/2" | 0.08 |
| 3KCK-1206 | 3KCK-1206SS | 5/16" | 1 1/2" | 1" | 3/4" | 5/16" | 5/8" | 0.20 |
| 3KCK-1207 | 3KCK-1207SS | 3/8" | 1 1/2" | 1" | 3/4" | 5/16" | 5/8" | 0.20 |
| 4KCK-1208 | 4KCK-1208SS | 3/8" | 2" | 1 1/8" | 1" | 3/8" | 5/8" | 0.46 |
| 4KCK-1209 | 4KCK-1209SS | 1/2" | 2" | 1 1/8" | 1" | 3/8" | 5/8" | 0.46 |
| 5KCK-1210 | 5KCK-1210SS | 1/2" | 2 1/2" | 1 1/2" | 1 1/2" | 9/16" | 3/4" | 1.16 |
| 5KCK-1211 | 5KCK-1211SS | 5/8" | 2 1/2" | 1 1/2" | 1 1/2" | 6/16" | 3/4" | 1.16 |
| 6KCK-1212 | 6KCK-1212SS | 5/8" | 3" | 1 3/4" | 1 3/4" | 5/8" | 1" | 1.96 |
| 6KCK-1213 | 6KCK-1213SS | 3/4" | 3" | 1 3/4" | 1 3/4" | 5/8" | 1" | 1.96 |
