Detent Pins - With Shoulder - Ring, "L" & "T" Style
Securely aligning and adjoining objects is what these ring, l-handle, and t-handle, shoulder style detent pins from JBF National are designed and tested to do. The pin shafts are manufactured from the highest quality zinc plated steel or stainless steel. The spring loaded ball bearings these detent pins feature prevent accidental disengagement, with the shoulder providing positive stop alignment. Variety of grip lengths and pin diameters available. Add "R," "L," or "T" to part number end to specify handle type. Please see component diagram below.

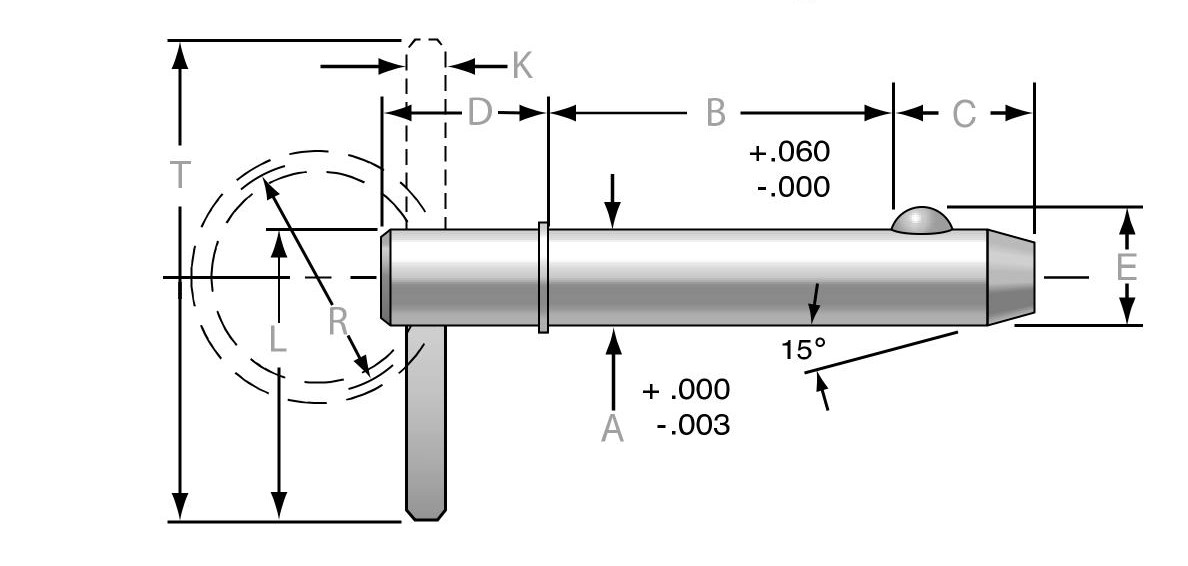

| Diameter | Effective Length | C | D | E | K | L,T | R | JBF Zinc Plated 1144 Steel P/N | JBF 303 Stainless Steel P/N |
|---|---|---|---|---|---|---|---|---|---|
| 3/16 | 0.3 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1645 | DPSS1645 |
| 3/16 | 0.4 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1646 | DPSS1646 |
| 3/16 | 0.5 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1647 | DPSS1647 |
| 3/16 | 0.6 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1648 | DPSS1648 |
| 3/16 | 0.7 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1649 | DPSS1649 |
| 3/16 | 0.8 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1650 | DPSS1650 |
| 3/16 | 0.9 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1651 | DPSS1651 |
| 3/16 | 1.0 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1652 | DPSS1652 |
| 3/16 | 1.1 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1653 | DPSS1653 |
| 3/16 | 1.2 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1654 | DPSS1654 |
| 3/16 | 1.3 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1655 | DPSS1655 |
| 3/16 | 1.4 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1656 | DPSS1656 |
| 3/16 | 1.5 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1657 | DPSS1657 |
| 3/16 | 1.6 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1658 | DPSS1658 |
| 3/16 | 1.7 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1659 | DPSS1659 |
| 3/16 | 1.8 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1660 | DPSS1660 |
| 3/16 | 1.9 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1661 | DPSS1661 |
| 3/16 | 2.0 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1662 | DPSS1662 |
| 3/16 | 2.1 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1663 | DPSS1663 |
| 3/16 | 2.2 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1664 | DPSS1664 |
| 3/16 | 2.3 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1665 | DPSS1665 |
| 3/16 | 2.4 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1666 | DPSS1666 |
| 3/16 | 2.5 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1667 | DPSS1667 |
| 3/16 | 2.6 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1668 | DPSS1668 |
| 3/16 | 2.7 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1669 | DPSS1669 |
| 3/16 | 2.8 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1670 | DPSS1670 |
| 3/16 | 2.9 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1671 | DPSS1671 |
| 3/16 | 3.0 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1672 | DPSS1672 |
| 3/16 | 3.1 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1673 | DPSS1673 |
| 3/16 | 3.2 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1674 | DPSS1674 |
| 3/16 | 3.3 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1675 | DPSS1675 |
| 3/16 | 3.4 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1676 | DPSS1676 |
| 3/16 | 3.5 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1677 | DPSS1677 |
| 3/16 | 3.6 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1678 | DPSS1678 |
| 3/16 | 3.7 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1679 | DPSS1679 |
| 3/16 | 3.8 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1680 | DPSS1680 |
| 3/16 | 3.9 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1681 | DPSS1681 |
| 3/16 | 4.0 | 0.200 | 0.687 | 0.204 | 3/32 | 1 | 1.00 | DP1682 | DPSS1682 |
| 1/4 | 0.3 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1683 | DPSS1683 |
| 1/4 | 0.4 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1684 | DPSS1684 |
| 1/4 | 0.5 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1685 | DPSS1685 |
| 1/4 | 0.6 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1686 | DPSS1686 |
| 1/4 | 0.7 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1687 | DPSS1687 |
| 1/4 | 0.8 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1688 | DPSS1688 |
| 1/4 | 0.9 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1689 | DPSS1689 |
| 1/4 | 1.0 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1690 | DPSS1690 |
| 1/4 | 1.1 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1691 | DPSS1691 |
| 1/4 | 1.2 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1692 | DPSS1692 |
| 1/4 | 1.3 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1693 | DPSS1693 |
| 1/4 | 1.4 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1694 | DPSS1694 |
| 1/4 | 1.5 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1695 | DPSS1695 |
| 1/4 | 1.6 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1696 | DPSS1696 |
| 1/4 | 1.7 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1697 | DPSS1697 |
| 1/4 | 1.8 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1698 | DPSS1698 |
| 1/4 | 1.9 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1699 | DPSS1699 |
| 1/4 | 2.0 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1700 | DPSS1700 |
| 1/4 | 2.1 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1701 | DPSS1701 |
| 1/4 | 2.2 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1702 | DPSS1702 |
| 1/4 | 2.3 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1703 | DPSS1703 |
| 1/4 | 2.4 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1704 | DPSS1704 |
| 1/4 | 2.5 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1705 | DPSS1705 |
| 1/4 | 2.6 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1706 | DPSS1706 |
| 1/4 | 2.7 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1707 | DPSS1707 |
| 1/4 | 2.8 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1708 | DPSS1708 |
| 1/4 | 2.9 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1709 | DPSS1709 |
| 1/4 | 3.0 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1710 | DPSS1710 |
| 1/4 | 3.1 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1711 | DPSS1711 |
| 1/4 | 3.2 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1712 | DPSS1712 |
| 1/4 | 3.3 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1713 | DPSS1713 |
| 1/4 | 3.4 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1714 | DPSS1714 |
| 1/4 | 3.5 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1715 | DPSS1715 |
| 1/4 | 3.6 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1716 | DPSS1716 |
| 1/4 | 3.7 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1717 | DPSS1717 |
| 1/4 | 3.8 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1718 | DPSS1718 |
| 1/4 | 3.9 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1719 | DPSS1719 |
| 1/4 | 4.0 | 0.312 | 0.720 | 0.286 | 1/8 | 1-1/4 | 1.00 | DP1720 | DPSS1720 |
| 5/16 | 0.5 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1721 | DPSS1721 |
| 5/16 | 0.6 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1722 | DPSS1722 |
| 5/16 | 0.7 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1723 | DPSS1723 |
| 5/16 | 0.8 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1724 | DPSS1724 |
| 5/16 | 0.9 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1725 | DPSS1725 |
| 5/16 | 1.0 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1726 | DPSS1726 |
| 5/16 | 1.1 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1727 | DPSS1727 |
| 5/16 | 1.2 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1728 | DPSS1728 |
| 5/16 | 1.3 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1729 | DPSS1729 |
| 5/16 | 1.4 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1730 | DPSS1730 |
| 5/16 | 1.5 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1731 | DPSS1731 |
| 5/16 | 1.6 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1732 | DPSS1732 |
| 5/16 | 1.7 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1733 | DPSS1733 |
| 5/16 | 1.8 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1734 | DPSS1734 |
| 5/16 | 1.9 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1735 | DPSS1735 |
| 5/16 | 2.0 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1736 | DPSS1736 |
| 5/16 | 2.1 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1737 | DPSS1737 |
| 5/16 | 2.2 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1738 | DPSS1738 |
| 5/16 | 2.3 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1739 | DPSS1739 |
| 5/16 | 2.4 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1740 | DPSS1740 |
| 5/16 | 2.5 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1741 | DPSS1741 |
| 5/16 | 2.6 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1742 | DPSS1742 |
| 5/16 | 2.7 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1743 | DPSS1743 |
| 5/16 | 2.8 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1744 | DPSS1744 |
| 5/16 | 2.9 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1745 | DPSS1745 |
| 5/16 | 3.0 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1746 | DPSS1746 |
| 5/16 | 3.1 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1747 | DPSS1747 |
| 5/16 | 3.2 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1748 | DPSS1748 |
| 5/16 | 3.3 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1749 | DPSS1749 |
| 5/16 | 3.4 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1750 | DPSS1750 |
| 5/16 | 3.5 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1751 | DPSS1751 |
| 5/16 | 3.6 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1752 | DPSS1752 |
| 5/16 | 3.7 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1753 | DPSS1753 |
| 5/16 | 3.8 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1754 | DPSS1754 |
| 5/16 | 3.9 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1755 | DPSS1755 |
| 5/16 | 4.0 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1756 | DPSS1756 |
| 5/16 | 4.1 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1757 | DPSS1757 |
| 5/16 | 4.2 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1758 | DPSS1758 |
| 5/16 | 4.3 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1759 | DPSS1759 |
| 5/16 | 4.4 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1760 | DPSS1760 |
| 5/16 | 4.5 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1761 | DPSS1761 |
| 5/16 | 4.6 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1762 | DPSS1762 |
| 5/16 | 4.7 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1763 | DPSS1763 |
| 5/16 | 4.8 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1764 | DPSS1764 |
| 5/16 | 4.9 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1765 | DPSS1765 |
| 5/16 | 5.0 | 0.375 | 0.750 | 0.358 | 5/32 | 1-1/4 | 1.00 | DP1766 | DPSS1766 |
| 3/8 | 0.5 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1767 | DPSS1767 |
| 3/8 | 0.6 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1768 | DPSS1768 |
| 3/8 | 0.7 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1769 | DPSS1769 |
| 3/8 | 0.8 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1770 | DPSS1770 |
| 3/8 | 0.9 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1771 | DPSS1771 |
| 3/8 | 1.0 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1772 | DPSS1772 |
| 3/8 | 1.1 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1773 | DPSS1773 |
| 3/8 | 1.2 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1774 | DPSS1774 |
| 3/8 | 1.3 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1775 | DPSS1775 |
| 3/8 | 1.4 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1776 | DPSS1776 |
| 3/8 | 1.5 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1777 | DPSS1777 |
| 3/8 | 1.6 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1778 | DPSS1778 |
| 3/8 | 1.7 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1779 | DPSS1779 |
| 3/8 | 1.8 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1780 | DPSS1780 |
| 3/8 | 1.9 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1781 | DPSS1781 |
| 3/8 | 2.0 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1782 | DPSS1782 |
| 3/8 | 2.1 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1783 | DPSS1783 |
| 3/8 | 2.2 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1784 | DPSS1784 |
| 3/8 | 2.3 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1785 | DPSS1785 |
| 3/8 | 2.4 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1786 | DPSS1786 |
| 3/8 | 2.5 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1787 | DPSS1787 |
| 3/8 | 2.6 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1788 | DPSS1788 |
| 3/8 | 2.7 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1789 | DPSS1789 |
| 3/8 | 2.8 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1790 | DPSS1790 |
| 3/8 | 2.9 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1791 | DPSS1791 |
| 3/8 | 3.0 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1792 | DPSS1792 |
| 3/8 | 3.1 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1793 | DPSS1793 |
| 3/8 | 3.2 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1794 | DPSS1794 |
| 3/8 | 3.3 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1795 | DPSS1795 |
| 3/8 | 3.4 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1796 | DPSS1796 |
| 3/8 | 3.5 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1797 | DPSS1797 |
| 3/8 | 3.6 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1798 | DPSS1798 |
| 3/8 | 3.7 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1799 | DPSS1799 |
| 3/8 | 3.8 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1800 | DPSS1800 |
| 3/8 | 3.9 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1801 | DPSS1801 |
| 3/8 | 4.0 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1802 | DPSS1802 |
| 3/8 | 4.1 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1803 | DPSS1803 |
| 3/8 | 4.2 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1804 | DPSS1804 |
| 3/8 | 4.3 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1805 | DPSS1805 |
| 3/8 | 4.4 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1806 | DPSS1806 |
| 3/8 | 4.5 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1807 | DPSS1807 |
| 3/8 | 4.6 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1808 | DPSS1808 |
| 3/8 | 4.7 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1809 | DPSS1809 |
| 3/8 | 4.8 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1810 | DPSS1810 |
| 3/8 | 4.9 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1811 | DPSS1811 |
| 3/8 | 5.0 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1812 | DPSS1812 |
| 3/8 | 5.1 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1813 | DPSS1813 |
| 3/8 | 5.2 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1814 | DPSS1814 |
| 3/8 | 5.3 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1815 | DPSS1815 |
| 3/8 | 5.4 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1816 | DPSS1816 |
| 3/8 | 5.5 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1817 | DPSS1817 |
| 3/8 | 5.6 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1818 | DPSS1818 |
| 3/8 | 5.7 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1819 | DPSS1819 |
| 3/8 | 5.8 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1820 | DPSS1820 |
| 3/8 | 5.9 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1821 | DPSS1821 |
| 3/8 | 6.0 | 0.500 | 0.750 | 0.426 | 5/32 | 1-3/4 | 1.00 | DP1822 | DPSS1822 |
| 7/16 | 0.5 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1823 | DPSS1823 |
| 7/16 | 0.6 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1824 | DPSS1824 |
| 7/16 | 0.7 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1825 | DPSS1825 |
| 7/16 | 0.8 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1826 | DPSS1826 |
| 7/16 | 0.9 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1827 | DPSS1827 |
| 7/16 | 1.0 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1828 | DPSS1828 |
| 7/16 | 1.1 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1829 | DPSS1829 |
| 7/16 | 1.2 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1830 | DPSS1830 |
| 7/16 | 1.3 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1831 | DPSS1831 |
| 7/16 | 1.4 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1832 | DPSS1832 |
| 7/16 | 1.5 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1833 | DPSS1833 |
| 7/16 | 1.6 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1834 | DPSS1834 |
| 7/16 | 1.7 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1835 | DPSS1835 |
| 7/16 | 1.8 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1836 | DPSS1836 |
| 7/16 | 1.9 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1837 | DPSS1837 |
| 7/16 | 2.0 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1838 | DPSS1838 |
| 7/16 | 2.1 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1839 | DPSS1839 |
| 7/16 | 2.2 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1840 | DPSS1840 |
| 7/16 | 2.3 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1841 | DPSS1841 |
| 7/16 | 2.4 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1842 | DPSS1842 |
| 7/16 | 2.5 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1843 | DPSS1843 |
| 7/16 | 2.6 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1844 | DPSS1844 |
| 7/16 | 2.7 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1845 | DPSS1845 |
| 7/16 | 2.8 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1846 | DPSS1846 |
| 7/16 | 2.9 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1847 | DPSS1847 |
| 7/16 | 3.0 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1848 | DPSS1848 |
| 7/16 | 3.1 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1849 | DPSS1849 |
| 7/16 | 3.2 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1850 | DPSS1850 |
| 7/16 | 3.3 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1851 | DPSS1851 |
| 7/16 | 3.4 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1852 | DPSS1852 |
| 7/16 | 3.5 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1853 | DPSS1853 |
| 7/16 | 3.6 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1854 | DPSS1854 |
| 7/16 | 3.7 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1855 | DPSS1855 |
| 7/16 | 3.8 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1856 | DPSS1856 |
| 7/16 | 3.9 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1857 | DPSS1857 |
| 7/16 | 4.0 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1858 | DPSS1858 |
| 7/16 | 4.1 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1859 | DPSS1859 |
| 7/16 | 4.2 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1860 | DPSS1860 |
| 7/16 | 4.3 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1861 | DPSS1861 |
| 7/16 | 4.4 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1862 | DPSS1862 |
| 7/16 | 4.5 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1863 | DPSS1863 |
| 7/16 | 4.6 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1864 | DPSS1864 |
| 7/16 | 4.7 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1865 | DPSS1865 |
| 7/16 | 4.8 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1866 | DPSS1866 |
| 7/16 | 4.9 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1867 | DPSS1867 |
| 7/16 | 5.0 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1868 | DPSS1868 |
| 7/16 | 5.1 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1869 | DPSS1869 |
| 7/16 | 5.2 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1870 | DPSS1870 |
| 7/16 | 5.3 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1871 | DPSS1871 |
| 7/16 | 5.4 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1872 | DPSS1872 |
| 7/16 | 5.5 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1873 | DPSS1873 |
| 7/16 | 5.6 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1874 | DPSS1874 |
| 7/16 | 5.7 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1875 | DPSS1875 |
| 7/16 | 5.8 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1876 | DPSS1876 |
| 7/16 | 5.9 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1877 | DPSS1877 |
| 7/16 | 6.0 | 0.562 | 0.950 | 0.496 | 5/32 | 1-3/4 | 1.00 | DP1878 | DPSS1878 |
| 1/2 | 0.5 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1879 | DPSS1879 |
| 1/2 | 0.6 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1880 | DPSS1880 |
| 1/2 | 0.7 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1881 | DPSS1881 |
| 1/2 | 0.8 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1882 | DPSS1882 |
| 1/2 | 0.9 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1883 | DPSS1883 |
| 1/2 | 1.0 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1884 | DPSS1884 |
| 1/2 | 1.1 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1885 | DPSS1885 |
| 1/2 | 1.2 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1886 | DPSS1886 |
| 1/2 | 1.3 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1887 | DPSS1887 |
| 1/2 | 1.4 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1888 | DPSS1888 |
| 1/2 | 1.5 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1889 | DPSS1889 |
| 1/2 | 1.6 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1890 | DPSS1890 |
| 1/2 | 1.7 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1891 | DPSS1891 |
| 1/2 | 1.8 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1892 | DPSS1892 |
| 1/2 | 1.9 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1893 | DPSS1893 |
| 1/2 | 2.0 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1894 | DPSS1894 |
| 1/2 | 2.1 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1895 | DPSS1895 |
| 1/2 | 2.2 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1896 | DPSS1896 |
| 1/2 | 2.3 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1897 | DPSS1897 |
| 1/2 | 2.4 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1898 | DPSS1898 |
| 1/2 | 2.5 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1899 | DPSS1899 |
| 1/2 | 2.6 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1900 | DPSS1900 |
| 1/2 | 2.7 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1901 | DPSS1901 |
| 1/2 | 2.8 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1902 | DPSS1902 |
| 1/2 | 2.9 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1903 | DPSS1903 |
| 1/2 | 3.0 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1904 | DPSS1904 |
| 1/2 | 3.1 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1905 | DPSS1905 |
| 1/2 | 3.2 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1906 | DPSS1906 |
| 1/2 | 3.3 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1907 | DPSS1907 |
| 1/2 | 3.4 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1908 | DPSS1908 |
| 1/2 | 3.5 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1909 | DPSS1909 |
| 1/2 | 3.6 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1910 | DPSS1910 |
| 1/2 | 3.7 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1911 | DPSS1911 |
| 1/2 | 3.8 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1912 | DPSS1912 |
| 1/2 | 3.9 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1913 | DPSS1913 |
| 1/2 | 4.0 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1914 | DPSS1914 |
| 1/2 | 4.1 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1915 | DPSS1915 |
| 1/2 | 4.2 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1916 | DPSS1916 |
| 1/2 | 4.3 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1917 | DPSS1917 |
| 1/2 | 4.4 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1918 | DPSS1918 |
| 1/2 | 4.5 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1919 | DPSS1919 |
| 1/2 | 4.6 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1920 | DPSS1920 |
| 1/2 | 4.7 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1921 | DPSS1921 |
| 1/2 | 4.8 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1922 | DPSS1922 |
| 1/2 | 4.9 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1923 | DPSS1923 |
| 1/2 | 5.0 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1924 | DPSS1924 |
| 1/2 | 5.1 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1925 | DPSS1925 |
| 1/2 | 5.2 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1926 | DPSS1926 |
| 1/2 | 5.3 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1927 | DPSS1927 |
| 1/2 | 5.4 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1928 | DPSS1928 |
| 1/2 | 5.5 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1929 | DPSS1929 |
| 1/2 | 5.6 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1930 | DPSS1930 |
| 1/2 | 5.7 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1931 | DPSS1931 |
| 1/2 | 5.8 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1932 | DPSS1932 |
| 1/2 | 5.9 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1933 | DPSS1933 |
| 1/2 | 6.0 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1934 | DPSS1934 |
| 1/2 | 6.1 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1935 | DPSS1935 |
| 1/2 | 6.2 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1936 | DPSS1936 |
| 1/2 | 6.3 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1937 | DPSS1937 |
| 1/2 | 6.4 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1938 | DPSS1938 |
| 1/2 | 6.5 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1939 | DPSS1939 |
| 1/2 | 6.6 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1940 | DPSS1940 |
| 1/2 | 6.7 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1941 | DPSS1941 |
| 1/2 | 6.8 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1942 | DPSS1942 |
| 1/2 | 6.9 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1943 | DPSS1943 |
| 1/2 | 7.0 | 0.625 | 1.012 | 0.570 | 3/16 | 2 | 1.25 | DP1944 | DPSS1944 |
| 9/16 | 1.0 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1945 | DPSS1945 |
| 9/16 | 1.1 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1946 | DPSS1946 |
| 9/16 | 1.2 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1947 | DPSS1947 |
| 9/16 | 1.3 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1948 | DPSS1948 |
| 9/16 | 1.4 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1949 | DPSS1949 |
| 9/16 | 1.5 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1950 | DPSS1950 |
| 9/16 | 1.6 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1951 | DPSS1951 |
| 9/16 | 1.7 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1952 | DPSS1952 |
| 9/16 | 1.8 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1953 | DPSS1953 |
| 9/16 | 1.9 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1954 | DPSS1954 |
| 9/16 | 2.0 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1955 | DPSS1955 |
| 9/16 | 2.1 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1956 | DPSS1956 |
| 9/16 | 2.2 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1957 | DPSS1957 |
| 9/16 | 2.3 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1958 | DPSS1958 |
| 9/16 | 2.4 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1959 | DPSS1959 |
| 9/16 | 2.5 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1960 | DPSS1960 |
| 9/16 | 2.6 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1961 | DPSS1961 |
| 9/16 | 2.7 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1962 | DPSS1962 |
| 9/16 | 2.8 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1963 | DPSS1963 |
| 9/16 | 2.9 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1964 | DPSS1964 |
| 9/16 | 3.0 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1965 | DPSS1965 |
| 9/16 | 3.1 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1966 | DPSS1966 |
| 9/16 | 3.2 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1967 | DPSS1967 |
| 9/16 | 3.3 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1968 | DPSS1968 |
| 9/16 | 3.4 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1969 | DPSS1969 |
| 9/16 | 3.5 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1970 | DPSS1970 |
| 9/16 | 3.6 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1971 | DPSS1971 |
| 9/16 | 3.7 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1972 | DPSS1972 |
| 9/16 | 3.8 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1973 | DPSS1973 |
| 9/16 | 3.9 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1974 | DPSS1974 |
| 9/16 | 4.0 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1975 | DPSS1975 |
| 9/16 | 4.1 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1976 | DPSS1976 |
| 9/16 | 4.2 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1977 | DPSS1977 |
| 9/16 | 4.3 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1978 | DPSS1978 |
| 9/16 | 4.4 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1979 | DPSS1979 |
| 9/16 | 4.5 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1980 | DPSS1980 |
| 9/16 | 4.6 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1981 | DPSS1981 |
| 9/16 | 4.7 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1982 | DPSS1982 |
| 9/16 | 4.8 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1983 | DPSS1983 |
| 9/16 | 4.9 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1984 | DPSS1984 |
| 9/16 | 5.0 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1985 | DPSS1985 |
| 9/16 | 5.1 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1986 | DPSS1986 |
| 9/16 | 5.2 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1987 | DPSS1987 |
| 9/16 | 5.3 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1988 | DPSS1988 |
| 9/16 | 5.4 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1989 | DPSS1989 |
| 9/16 | 5.5 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1990 | DPSS1990 |
| 9/16 | 5.6 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1991 | DPSS1991 |
| 9/16 | 5.7 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1992 | DPSS1992 |
| 9/16 | 5.8 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1993 | DPSS1993 |
| 9/16 | 5.9 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1994 | DPSS1994 |
| 9/16 | 6.0 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1995 | DPSS1995 |
| 9/16 | 6.1 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1996 | DPSS1996 |
| 9/16 | 6.2 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1997 | DPSS1997 |
| 9/16 | 6.3 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1998 | DPSS1998 |
| 9/16 | 6.4 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP1999 | DPSS1999 |
| 9/16 | 6.5 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP2000 | DPSS2000 |
| 9/16 | 6.6 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP2001 | DPSS2001 |
| 9/16 | 6.7 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP2002 | DPSS2002 |
| 9/16 | 6.8 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP2003 | DPSS2003 |
| 9/16 | 6.9 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP2004 | DPSS2004 |
| 9/16 | 7.0 | 0.687 | 1.012 | 0.642 | 3/16 | 2 | 1.25 | DP2005 | DPSS2005 |
| 5/8 | 1.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2006 | DPSS2006 |
| 5/8 | 1.1 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2007 | DPSS2007 |
| 5/8 | 1.2 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2008 | DPSS2008 |
| 5/8 | 1.3 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2009 | DPSS2009 |
| 5/8 | 1.4 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2010 | DPSS2010 |
| 5/8 | 1.5 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2011 | DPSS2011 |
| 5/8 | 1.6 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2012 | DPSS2012 |
| 5/8 | 1.7 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2013 | DPSS2013 |
| 5/8 | 1.8 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2014 | DPSS2014 |
| 5/8 | 1.9 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2015 | DPSS2015 |
| 5/8 | 2.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2016 | DPSS2016 |
| 5/8 | 2.1 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2017 | DPSS2017 |
| 5/8 | 2.2 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2018 | DPSS2018 |
| 5/8 | 2.3 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2019 | DPSS2019 |
| 5/8 | 2.4 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2020 | DPSS2020 |
| 5/8 | 2.5 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2021 | DPSS2021 |
| 5/8 | 2.6 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2022 | DPSS2022 |
| 5/8 | 2.7 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2023 | DPSS2023 |
| 5/8 | 2.8 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2024 | DPSS2024 |
| 5/8 | 2.9 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2025 | DPSS2025 |
| 5/8 | 3.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2026 | DPSS2026 |
| 5/8 | 3.1 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2027 | DPSS2027 |
| 5/8 | 3.2 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2028 | DPSS2028 |
| 5/8 | 3.3 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2029 | DPSS2029 |
| 5/8 | 3.4 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2030 | DPSS2030 |
| 5/8 | 3.5 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2031 | DPSS2031 |
| 5/8 | 3.6 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2032 | DPSS2032 |
| 5/8 | 3.7 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2033 | DPSS2033 |
| 5/8 | 3.8 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2034 | DPSS2034 |
| 5/8 | 3.9 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2035 | DPSS2035 |
| 5/8 | 4.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2036 | DPSS2036 |
| 5/8 | 4.1 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2037 | DPSS2037 |
| 5/8 | 4.2 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2038 | DPSS2038 |
| 5/8 | 4.3 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2039 | DPSS2039 |
| 5/8 | 4.4 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2040 | DPSS2040 |
| 5/8 | 4.5 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2041 | DPSS2041 |
| 5/8 | 4.6 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2042 | DPSS2042 |
| 5/8 | 4.7 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2043 | DPSS2043 |
| 5/8 | 4.8 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2044 | DPSS2044 |
| 5/8 | 4.9 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2045 | DPSS2045 |
| 5/8 | 5.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2046 | DPSS2046 |
| 5/8 | 5.1 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2047 | DPSS2047 |
| 5/8 | 5.2 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2048 | DPSS2048 |
| 5/8 | 5.3 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2049 | DPSS2049 |
| 5/8 | 5.4 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2050 | DPSS2050 |
| 5/8 | 5.5 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2051 | DPSS2051 |
| 5/8 | 5.6 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2052 | DPSS2052 |
| 5/8 | 5.7 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2053 | DPSS2053 |
| 5/8 | 5.8 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2054 | DPSS2054 |
| 5/8 | 5.9 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2055 | DPSS2055 |
| 5/8 | 6.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2056 | DPSS2056 |
| 5/8 | 6.1 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2057 | DPSS2057 |
| 5/8 | 6.2 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2058 | DPSS2058 |
| 5/8 | 6.3 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2059 | DPSS2059 |
| 5/8 | 6.4 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2060 | DPSS2060 |
| 5/8 | 6.5 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2061 | DPSS2061 |
| 5/8 | 6.6 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2062 | DPSS2062 |
| 5/8 | 6.7 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2063 | DPSS2063 |
| 5/8 | 6.8 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2064 | DPSS2064 |
| 5/8 | 6.9 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2065 | DPSS2065 |
| 5/8 | 7.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2066 | DPSS2066 |
| 5/8 | 7.1 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2067 | DPSS2067 |
| 5/8 | 7.2 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2068 | DPSS2068 |
| 5/8 | 7.3 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2069 | DPSS2069 |
| 5/8 | 7.4 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2070 | DPSS2070 |
| 5/8 | 7.5 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2071 | DPSS2071 |
| 5/8 | 7.6 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2072 | DPSS2072 |
| 5/8 | 7.7 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2073 | DPSS2073 |
| 5/8 | 7.8 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2074 | DPSS2074 |
| 5/8 | 7.9 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2075 | DPSS2075 |
| 5/8 | 8.0 | 0.750 | 1.075 | .710 | 1/4 | 2-1/4 | 1.25 | DP2076 | DPSS2076 |
| 3/4 | 1.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2077 | DPSS2077 |
| 3/4 | 1.1 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2078 | DPSS2078 |
| 3/4 | 1.2 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2079 | DPSS2079 |
| 3/4 | 1.3 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2080 | DPSS2080 |
| 3/4 | 1.4 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2081 | DPSS2081 |
| 3/4 | 1.5 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2082 | DPSS2082 |
| 3/4 | 1.6 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2083 | DPSS2083 |
| 3/4 | 1.7 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2084 | DPSS2084 |
| 3/4 | 1.8 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2085 | DPSS2085 |
| 3/4 | 1.9 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2086 | DPSS2086 |
| 3/4 | 2.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2087 | DPSS2087 |
| 3/4 | 2.1 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2088 | DPSS2088 |
| 3/4 | 2.2 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2089 | DPSS2089 |
| 3/4 | 2.3 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2090 | DPSS2090 |
| 3/4 | 2.4 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2091 | DPSS2091 |
| 3/4 | 2.5 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2092 | DPSS2092 |
| 3/4 | 2.6 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2093 | DPSS2093 |
| 3/4 | 2.7 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2094 | DPSS2094 |
| 3/4 | 2.8 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2095 | DPSS2095 |
| 3/4 | 2.9 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2096 | DPSS2096 |
| 3/4 | 3.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2097 | DPSS2097 |
| 3/4 | 3.1 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2098 | DPSS2098 |
| 3/4 | 3.2 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2099 | DPSS2099 |
| 3/4 | 3.3 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2100 | DPSS2100 |
| 3/4 | 3.4 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2101 | DPSS2101 |
| 3/4 | 3.5 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2102 | DPSS2102 |
| 3/4 | 3.6 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2103 | DPSS2103 |
| 3/4 | 3.7 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2104 | DPSS2104 |
| 3/4 | 3.8 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2105 | DPSS2105 |
| 3/4 | 3.9 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2106 | DPSS2106 |
| 3/4 | 4.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2107 | DPSS2107 |
| 3/4 | 4.1 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2108 | DPSS2108 |
| 3/4 | 4.2 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2109 | DPSS2109 |
| 3/4 | 4.3 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2110 | DPSS2110 |
| 3/4 | 4.4 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2111 | DPSS2111 |
| 3/4 | 4.5 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2112 | DPSS2112 |
| 3/4 | 4.6 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2113 | DPSS2113 |
| 3/4 | 4.7 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2114 | DPSS2114 |
| 3/4 | 4.8 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2115 | DPSS2115 |
| 3/4 | 4.9 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2116 | DPSS2116 |
| 3/4 | 5.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2117 | DPSS2117 |
| 3/4 | 5.1 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2118 | DPSS2118 |
| 3/4 | 5.2 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2119 | DPSS2119 |
| 3/4 | 5.3 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2120 | DPSS2120 |
| 3/4 | 5.4 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2121 | DPSS2121 |
| 3/4 | 5.5 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2122 | DPSS2122 |
| 3/4 | 5.6 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2123 | DPSS2123 |
| 3/4 | 5.7 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2124 | DPSS2124 |
| 3/4 | 5.8 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2125 | DPSS2125 |
| 3/4 | 5.9 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2126 | DPSS2126 |
| 3/4 | 6.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2127 | DPSS2127 |
| 3/4 | 6.1 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2128 | DPSS2128 |
| 3/4 | 6.2 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2129 | DPSS2129 |
| 3/4 | 6.3 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2130 | DPSS2130 |
| 3/4 | 6.4 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2131 | DPSS2131 |
| 3/4 | 6.5 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2132 | DPSS2132 |
| 3/4 | 6.6 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2133 | DPSS2133 |
| 3/4 | 6.7 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2134 | DPSS2134 |
| 3/4 | 6.8 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2135 | DPSS2135 |
| 3/4 | 6.9 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2136 | DPSS2136 |
| 3/4 | 7.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2137 | DPSS2137 |
| 3/4 | 7.1 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2138 | DPSS2138 |
| 3/4 | 7.2 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2139 | DPSS2139 |
| 3/4 | 7.3 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2140 | DPSS2140 |
| 3/4 | 7.4 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2141 | DPSS2141 |
| 3/4 | 7.5 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2142 | DPSS2142 |
| 3/4 | 7.6 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2143 | DPSS2143 |
| 3/4 | 7.7 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2144 | DPSS2144 |
| 3/4 | 7.8 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2145 | DPSS2145 |
| 3/4 | 7.9 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2146 | DPSS2146 |
| 3/4 | 8.0 | 0.937 | 1.375 | 0.856 | 1/4 | 2-1/4 | 1.5 | DP2147 | DPSS2147 |
| 7/8 | 1.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2148 | DPSS2148 |
| 7/8 | 1.1 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2149 | DPSS2149 |
| 7/8 | 1.2 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2150 | DPSS2150 |
| 7/8 | 1.3 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2151 | DPSS2151 |
| 7/8 | 1.4 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2152 | DPSS2152 |
| 7/8 | 1.5 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2153 | DPSS2153 |
| 7/8 | 1.6 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2154 | DPSS2154 |
| 7/8 | 1.7 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2155 | DPSS2155 |
| 7/8 | 1.8 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2156 | DPSS2156 |
| 7/8 | 1.9 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2157 | DPSS2157 |
| 7/8 | 2.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2158 | DPSS2158 |
| 7/8 | 2.1 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2159 | DPSS2159 |
| 7/8 | 2.2 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2160 | DPSS2160 |
| 7/8 | 2.3 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2161 | DPSS2161 |
| 7/8 | 2.4 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2162 | DPSS2162 |
| 7/8 | 2.5 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2163 | DPSS2163 |
| 7/8 | 2.6 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2164 | DPSS2164 |
| 7/8 | 2.7 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2165 | DPSS2165 |
| 7/8 | 2.8 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2166 | DPSS2166 |
| 7/8 | 2.9 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2167 | DPSS2167 |
| 7/8 | 3.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2168 | DPSS2168 |
| 7/8 | 3.1 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2169 | DPSS2169 |
| 7/8 | 3.2 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2170 | DPSS2170 |
| 7/8 | 3.3 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2171 | DPSS2171 |
| 7/8 | 3.4 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2172 | DPSS2172 |
| 7/8 | 3.5 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2173 | DPSS2173 |
| 7/8 | 3.6 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2174 | DPSS2174 |
| 7/8 | 3.7 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2175 | DPSS2175 |
| 7/8 | 3.8 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2176 | DPSS2176 |
| 7/8 | 3.9 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2177 | DPSS2177 |
| 7/8 | 4.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2178 | DPSS2178 |
| 7/8 | 4.1 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2179 | DPSS2179 |
| 7/8 | 4.2 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2180 | DPSS2180 |
| 7/8 | 4.3 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2181 | DPSS2181 |
| 7/8 | 4.4 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2182 | DPSS2182 |
| 7/8 | 4.5 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2183 | DPSS2183 |
| 7/8 | 4.6 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2184 | DPSS2184 |
| 7/8 | 4.7 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2185 | DPSS2185 |
| 7/8 | 4.8 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2186 | DPSS2186 |
| 7/8 | 4.9 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2187 | DPSS2187 |
| 7/8 | 5.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2188 | DPSS2188 |
| 7/8 | 5.1 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2189 | DPSS2189 |
| 7/8 | 5.2 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2190 | DPSS2190 |
| 7/8 | 5.3 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2191 | DPSS2191 |
| 7/8 | 5.4 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2192 | DPSS2192 |
| 7/8 | 5.5 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2193 | DPSS2193 |
| 7/8 | 5.6 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2194 | DPSS2194 |
| 7/8 | 5.7 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2195 | DPSS2195 |
| 7/8 | 5.8 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2196 | DPSS2196 |
| 7/8 | 5.9 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2197 | DPSS2197 |
| 7/8 | 6.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2198 | DPSS2198 |
| 7/8 | 6.1 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2199 | DPSS2199 |
| 7/8 | 6.2 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2200 | DPSS2200 |
| 7/8 | 6.3 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2201 | DPSS2201 |
| 7/8 | 6.4 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2202 | DPSS2202 |
| 7/8 | 6.5 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2203 | DPSS2203 |
| 7/8 | 6.6 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2204 | DPSS2204 |
| 7/8 | 6.7 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2205 | DPSS2205 |
| 7/8 | 6.8 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2206 | DPSS2206 |
| 7/8 | 6.9 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2207 | DPSS2207 |
| 7/8 | 7.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2208 | DPSS2208 |
| 7/8 | 7.1 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2209 | DPSS2209 |
| 7/8 | 7.2 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2210 | DPSS2210 |
| 7/8 | 7.3 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2211 | DPSS2211 |
| 7/8 | 7.4 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2212 | DPSS2212 |
| 7/8 | 7.5 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2213 | DPSS2213 |
| 7/8 | 7.6 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2214 | DPSS2214 |
| 7/8 | 7.7 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2215 | DPSS2215 |
| 7/8 | 7.8 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2216 | DPSS2216 |
| 7/8 | 7.9 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2217 | DPSS2217 |
| 7/8 | 8.0 | 1.000 | 1.500 | 0.996 | 3/8 | 2-1/2 | 1.50 | DP2218 | DPSS2218 |
| 1 | 1.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2219 | DPSS2219 |
| 1 | 1.1 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2220 | DPSS2220 |
| 1 | 1.2 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2221 | DPSS2221 |
| 1 | 1.3 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2222 | DPSS2222 |
| 1 | 1.4 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2223 | DPSS2223 |
| 1 | 1.5 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2224 | DPSS2224 |
| 1 | 1.6 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2225 | DPSS2225 |
| 1 | 1.7 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2226 | DPSS2226 |
| 1 | 1.8 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2227 | DPSS2227 |
| 1 | 1.9 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2228 | DPSS2228 |
| 1 | 2.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2229 | DPSS2229 |
| 1 | 2.1 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2230 | DPSS2230 |
| 1 | 2.2 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2231 | DPSS2231 |
| 1 | 2.3 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2232 | DPSS2232 |
| 1 | 2.4 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2233 | DPSS2233 |
| 1 | 2.5 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2234 | DPSS2234 |
| 1 | 2.6 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2235 | DPSS2235 |
| 1 | 2.7 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2236 | DPSS2236 |
| 1 | 2.8 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2237 | DPSS2237 |
| 1 | 2.9 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2238 | DPSS2238 |
| 1 | 3.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2239 | DPSS2239 |
| 1 | 3.1 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2240 | DPSS2240 |
| 1 | 3.2 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2241 | DPSS2241 |
| 1 | 3.3 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2242 | DPSS2242 |
| 1 | 3.4 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2243 | DPSS2243 |
| 1 | 3.5 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2244 | DPSS2244 |
| 1 | 3.6 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2245 | DPSS2245 |
| 1 | 3.7 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2246 | DPSS2246 |
| 1 | 3.8 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2247 | DPSS2247 |
| 1 | 3.9 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2248 | DPSS2248 |
| 1 | 4.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2249 | DPSS2249 |
| 1 | 4.1 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2250 | DPSS2250 |
| 1 | 4.2 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2251 | DPSS2251 |
| 1 | 4.3 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2252 | DPSS2252 |
| 1 | 4.4 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2253 | DPSS2253 |
| 1 | 4.5 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2254 | DPSS2254 |
| 1 | 4.6 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2255 | DPSS2255 |
| 1 | 4.7 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2256 | DPSS2256 |
| 1 | 4.8 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2257 | DPSS2257 |
| 1 | 4.9 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2258 | DPSS2258 |
| 1 | 5.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2259 | DPSS2259 |
| 1 | 5.1 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2260 | DPSS2260 |
| 1 | 5.2 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2261 | DPSS2261 |
| 1 | 5.3 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2262 | DPSS2262 |
| 1 | 5.4 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2263 | DPSS2263 |
| 1 | 5.5 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2264 | DPSS2264 |
| 1 | 5.6 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2265 | DPSS2265 |
| 1 | 5.7 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2266 | DPSS2266 |
| 1 | 5.8 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2267 | DPSS2267 |
| 1 | 5.9 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2268 | DPSS2268 |
| 1 | 6.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2269 | DPSS2269 |
| 1 | 6.1 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2270 | DPSS2270 |
| 1 | 6.2 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2271 | DPSS2271 |
| 1 | 6.3 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2272 | DPSS2272 |
| 1 | 6.4 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2273 | DPSS2273 |
| 1 | 6.5 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2274 | DPSS2274 |
| 1 | 6.6 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2275 | DPSS2275 |
| 1 | 6.7 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2276 | DPSS2276 |
| 1 | 6.8 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2277 | DPSS2277 |
| 1 | 6.9 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2278 | DPSS2278 |
| 1 | 7.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2279 | DPSS2279 |
| 1 | 7.1 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2280 | DPSS2280 |
| 1 | 7.2 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2281 | DPSS2281 |
| 1 | 7.3 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2282 | DPSS2282 |
| 1 | 7.4 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2283 | DPSS2283 |
| 1 | 7.5 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2284 | DPSS2284 |
| 1 | 7.6 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2285 | DPSS2285 |
| 1 | 7.7 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2286 | DPSS2286 |
| 1 | 7.8 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2287 | DPSS2287 |
| 1 | 7.9 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2288 | DPSS2288 |
| 1 | 8.0 | 1.250 | 1.500 | 1.140 | 3/8 | 2-1/2 | 1.50 | DP2289 | DPSS2289 |
