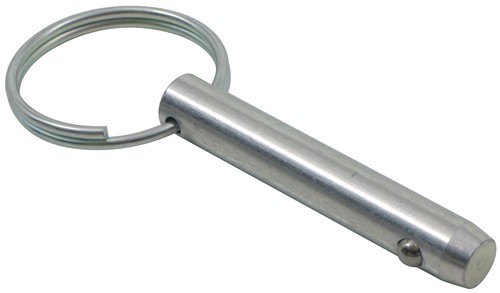

Detent Pins - Ring Style
Securely aligning and adjoining objects is what these ring style detent pins from JBF National are designed and tested to do. The pin shafts are manufactured from the highest quality zinc plated steel or stainless steel. The high quality spring loaded ball bearings these detent pins feature prevent accidental disengagement. Variety of grip lengths and pin diameters available. Please see component diagram below.

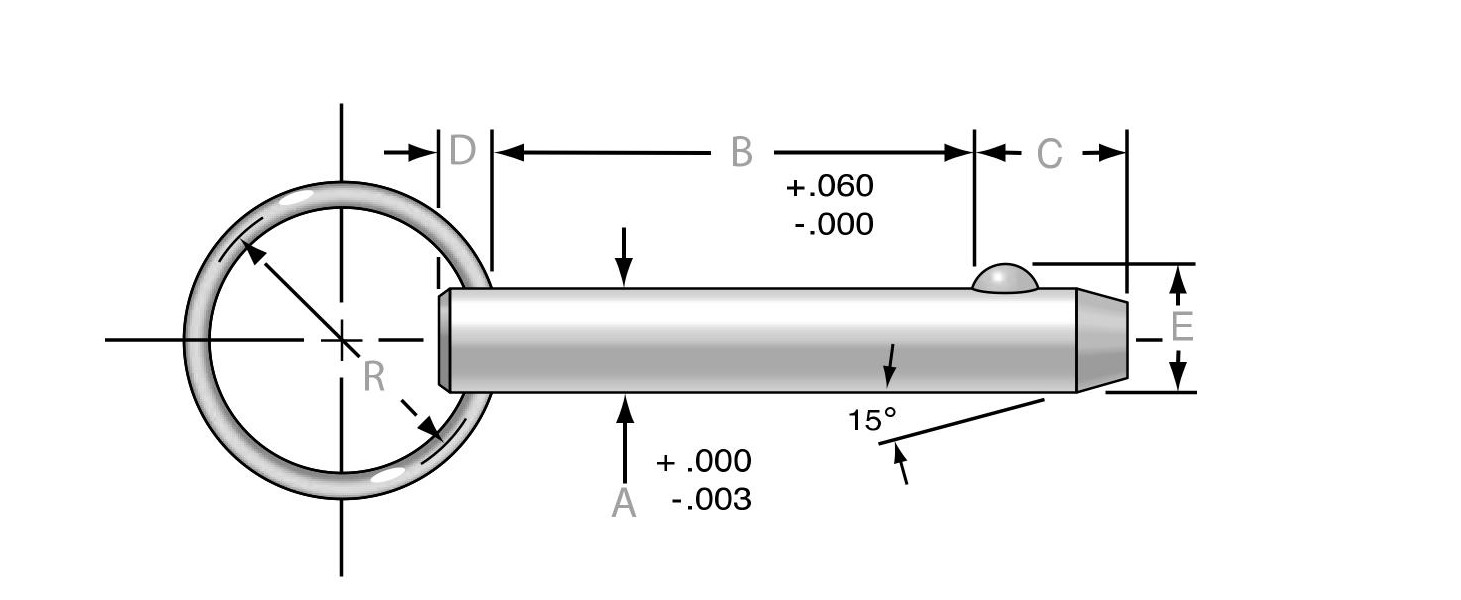

| Diameter | Grip or Effective Length | C | D | E | R | JBF National Zinc Plated 1144 Steel P/N | JBF National 303 Stainless Steel P/N |
|---|---|---|---|---|---|---|---|
| 3/16 | 0.3 | 0.200 | 0.187 | 0.204 | 1.00 | DP1000 | DPSS1000 |
| 3/16 | 0.4 | 0.200 | 0.187 | 0.204 | 1.00 | DP1001 | DPSS1001 |
| 3/16 | 0.5 | 0.200 | 0.187 | 0.204 | 1.00 | DP1002 | DPSS1002 |
| 3/16 | 0.6 | 0.200 | 0.187 | 0.204 | 1.00 | DP1003 | DPSS1003 |
| 3/16 | 0.7 | 0.200 | 0.187 | 0.204 | 1.00 | DP1004 | DPSS1004 |
| 3/16 | 0.8 | 0.200 | 0.187 | 0.204 | 1.00 | DP1005 | DPSS1005 |
| 3/16 | 0.9 | 0.200 | 0.187 | 0.204 | 1.00 | DP1006 | DPSS1006 |
| 3/16 | 1.0 | 0.200 | 0.187 | 0.204 | 1.00 | DP1007 | DPSS1007 |
| 3/16 | 1.1 | 0.200 | 0.187 | 0.204 | 1.00 | DP1008 | DPSS1008 |
| 3/16 | 1.2 | 0.200 | 0.187 | 0.204 | 1.00 | DP1009 | DPSS1009 |
| 3/16 | 1.3 | 0.200 | 0.187 | 0.204 | 1.00 | DP1010 | DPSS1010 |
| 3/16 | 1.4 | 0.200 | 0.187 | 0.204 | 1.00 | DP1011 | DPSS1011 |
| 3/16 | 1.5 | 0.200 | 0.187 | 0.204 | 1.00 | DP1012 | DPSS1012 |
| 3/16 | 1.6 | 0.200 | 0.187 | 0.204 | 1.00 | DP1013 | DPSS1013 |
| 3/16 | 1.7 | 0.200 | 0.187 | 0.204 | 1.00 | DP1014 | DPSS1014 |
| 3/16 | 1.8 | 0.200 | 0.187 | 0.204 | 1.00 | DP1015 | DPSS1015 |
| 3/16 | 1.9 | 0.200 | 0.187 | 0.204 | 1.00 | DP1016 | DPSS1016 |
| 3/16 | 2.0 | 0.200 | 0.187 | 0.204 | 1.00 | DP1017 | DPSS1017 |
| 3/16 | 2.1 | 0.200 | 0.187 | 0.204 | 1.00 | DP1018 | DPSS1018 |
| 3/16 | 2.2 | 0.200 | 0.187 | 0.204 | 1.00 | DP1019 | DPSS1019 |
| 3/16 | 2.3 | 0.200 | 0.187 | 0.204 | 1.00 | DP1020 | DPSS1020 |
| 3/16 | 2.4 | 0.200 | 0.187 | 0.204 | 1.00 | DP1021 | DPSS1021 |
| 3/16 | 2.5 | 0.200 | 0.187 | 0.204 | 1.00 | DP1022 | DPSS1022 |
| 3/16 | 2.6 | 0.200 | 0.187 | 0.204 | 1.00 | DP1023 | DPSS1023 |
| 3/16 | 2.7 | 0.200 | 0.187 | 0.204 | 1.00 | DP1024 | DPSS1024 |
| 3/16 | 2.8 | 0.200 | 0.187 | 0.204 | 1.00 | DP1025 | DPSS1025 |
| 3/16 | 2.9 | 0.200 | 0.187 | 0.204 | 1.00 | DP1026 | DPSS1026 |
| 3/16 | 3.0 | 0.200 | 0.187 | 0.204 | 1.00 | DP1027 | DPSS1027 |
| 3/16 | 3.1 | 0.200 | 0.187 | 0.204 | 1.00 | DP1028 | DPSS1028 |
| 3/16 | 3.2 | 0.200 | 0.187 | 0.204 | 1.00 | DP1029 | DPSS1029 |
| 3/16 | 3.3 | 0.200 | 0.187 | 0.204 | 1.00 | DP1030 | DPSS1030 |
| 3/16 | 3.4 | 0.200 | 0.187 | 0.204 | 1.00 | DP1031 | DPSS1031 |
| 3/16 | 3.5 | 0.200 | 0.187 | 0.204 | 1.00 | DP1032 | DPSS1032 |
| 3/16 | 3.6 | 0.200 | 0.187 | 0.204 | 1.00 | DP1033 | DPSS1033 |
| 3/16 | 3.7 | 0.200 | 0.187 | 0.204 | 1.00 | DP1034 | DPSS1034 |
| 3/16 | 3.8 | 0.200 | 0.187 | 0.204 | 1.00 | DP1035 | DPSS1035 |
| 3/16 | 3.9 | 0.200 | 0.187 | 0.204 | 1.00 | DP1036 | DPSS1036 |
| 3/16 | 4.0 | 0.200 | 0.187 | 0.204 | 1.00 | DP1037 | DPSS1037 |
| 1/4 | 0.3 | 0.312 | 0.220 | 0.286 | 1.00 | DP1038 | DPSS1038 |
| 1/4 | 0.4 | 0.312 | 0.220 | 0.286 | 1.00 | DP1039 | DPSS1039 |
| 1/4 | 0.5 | 0.312 | 0.220 | 0.286 | 1.00 | DP1040 | DPSS1040 |
| 1/4 | 0.6 | 0.312 | 0.220 | 0.286 | 1.00 | DP1041 | DPSS1041 |
| 1/4 | 0.7 | 0.312 | 0.220 | 0.286 | 1.00 | DP1042 | DPSS1042 |
| 1/4 | 0.8 | 0.312 | 0.220 | 0.286 | 1.00 | DP1043 | DPSS1043 |
| 1/4 | 0.9 | 0.312 | 0.220 | 0.286 | 1.00 | DP1044 | DPSS1044 |
| 1/4 | 1.0 | 0.312 | 0.220 | 0.286 | 1.00 | DP1045 | DPSS1045 |
| 1/4 | 1.1 | 0.312 | 0.220 | 0.286 | 1.00 | DP1046 | DPSS1046 |
| 1/4 | 1.2 | 0.312 | 0.220 | 0.286 | 1.00 | DP1047 | DPSS1047 |
| 1/4 | 1.3 | 0.312 | 0.220 | 0.286 | 1.00 | DP1048 | DPSS1048 |
| 1/4 | 1.4 | 0.312 | 0.220 | 0.286 | 1.00 | DP1049 | DPSS1049 |
| 1/4 | 1.5 | 0.312 | 0.220 | 0.286 | 1.00 | DP1050 | DPSS1050 |
| 1/4 | 1.6 | 0.312 | 0.220 | 0.286 | 1.00 | DP1051 | DPSS1051 |
| 1/4 | 1.7 | 0.312 | 0.220 | 0.286 | 1.00 | DP1052 | DPSS1052 |
| 1/4 | 1.8 | 0.312 | 0.220 | 0.286 | 1.00 | DP1053 | DPSS1053 |
| 1/4 | 1.9 | 0.312 | 0.220 | 0.286 | 1.00 | DP1054 | DPSS1054 |
| 1/4 | 2.0 | 0.312 | 0.220 | 0.286 | 1.00 | DP1055 | DPSS1055 |
| 1/4 | 2.1 | 0.312 | 0.220 | 0.286 | 1.00 | DP1056 | DPSS1056 |
| 1/4 | 2.2 | 0.312 | 0.220 | 0.286 | 1.00 | DP1057 | DPSS1057 |
| 1/4 | 2.3 | 0.312 | 0.220 | 0.286 | 1.00 | DP1058 | DPSS1058 |
| 1/4 | 2.4 | 0.312 | 0.220 | 0.286 | 1.00 | DP1059 | DPSS1059 |
| 1/4 | 2.5 | 0.312 | 0.220 | 0.286 | 1.00 | DP1060 | DPSS1060 |
| 1/4 | 2.6 | 0.312 | 0.220 | 0.286 | 1.00 | DP1061 | DPSS1061 |
| 1/4 | 2.7 | 0.312 | 0.220 | 0.286 | 1.00 | DP1062 | DPSS1062 |
| 1/4 | 2.8 | 0.312 | 0.220 | 0.286 | 1.00 | DP1063 | DPSS1063 |
| 1/4 | 2.9 | 0.312 | 0.220 | 0.286 | 1.00 | DP1064 | DPSS1064 |
| 1/4 | 3.0 | 0.312 | 0.220 | 0.286 | 1.00 | DP1065 | DPSS1065 |
| 1/4 | 3.1 | 0.312 | 0.220 | 0.286 | 1.00 | DP1066 | DPSS1066 |
| 1/4 | 3.2 | 0.312 | 0.220 | 0.286 | 1.00 | DP1067 | DPSS1067 |
| 1/4 | 3.3 | 0.312 | 0.220 | 0.286 | 1.00 | DP1068 | DPSS1068 |
| 1/4 | 3.4 | 0.312 | 0.220 | 0.286 | 1.00 | DP1069 | DPSS1069 |
| 1/4 | 3.5 | 0.312 | 0.220 | 0.286 | 1.00 | DP1070 | DPSS1070 |
| 1/4 | 3.6 | 0.312 | 0.220 | 0.286 | 1.00 | DP1071 | DPSS1071 |
| 1/4 | 3.7 | 0.312 | 0.220 | 0.286 | 1.00 | DP1072 | DPSS1072 |
| 1/4 | 3.8 | 0.312 | 0.220 | 0.286 | 1.00 | DP1073 | DPSS1073 |
| 1/4 | 3.9 | 0.312 | 0.220 | 0.286 | 1.00 | DP1074 | DPSS1074 |
| 1/4 | 4.0 | 0.312 | 0.220 | 0.286 | 1.00 | DP1075 | DPSS1075 |
| 5/16 | 0.5 | 0.375 | 0.250 | 0.358 | 1.00 | DP1076 | DPSS1076 |
| 5/16 | 0.6 | 0.375 | 0.250 | 0.358 | 1.00 | DP1077 | DPSS1077 |
| 5/16 | 0.7 | 0.375 | 0.250 | 0.358 | 1.00 | DP1078 | DPSS1078 |
| 5/16 | 0.8 | 0.375 | 0.250 | 0.358 | 1.00 | DP1079 | DPSS1079 |
| 5/16 | 0.9 | 0.375 | 0.250 | 0.358 | 1.00 | DP1080 | DPSS1080 |
| 5/16 | 1.0 | 0.375 | 0.250 | 0.358 | 1.00 | DP1081 | DPSS1081 |
| 5/16 | 1.1 | 0.375 | 0.250 | 0.358 | 1.00 | DP1082 | DPSS1082 |
| 5/16 | 1.2 | 0.375 | 0.250 | 0.358 | 1.00 | DP1083 | DPSS1083 |
| 5/16 | 1.3 | 0.375 | 0.250 | 0.358 | 1.00 | DP1084 | DPSS1084 |
| 5/16 | 1.4 | 0.375 | 0.250 | 0.358 | 1.00 | DP1085 | DPSS1085 |
| 5/16 | 1.5 | 0.375 | 0.250 | 0.358 | 1.00 | DP1086 | DPSS1086 |
| 5/16 | 1.6 | 0.375 | 0.250 | 0.358 | 1.00 | DP1087 | DPSS1087 |
| 5/16 | 1.7 | 0.375 | 0.250 | 0.358 | 1.00 | DP1088 | DPSS1088 |
| 5/16 | 1.8 | 0.375 | 0.250 | 0.358 | 1.00 | DP1089 | DPSS1089 |
| 5/16 | 1.9 | 0.375 | 0.250 | 0.358 | 1.00 | DP1090 | DPSS1090 |
| 5/16 | 2.0 | 0.375 | 0.250 | 0.358 | 1.00 | DP1091 | DPSS1091 |
| 5/16 | 2.1 | 0.375 | 0.250 | 0.358 | 1.00 | DP1092 | DPSS1092 |
| 5/16 | 2.2 | 0.375 | 0.250 | 0.358 | 1.00 | DP1093 | DPSS1093 |
| 5/16 | 2.3 | 0.375 | 0.250 | 0.358 | 1.00 | DP1094 | DPSS1094 |
| 5/16 | 2.4 | 0.375 | 0.250 | 0.358 | 1.00 | DP1095 | DPSS1095 |
| 5/16 | 2.5 | 0.375 | 0.250 | 0.358 | 1.00 | DP1096 | DPSS1096 |
| 5/16 | 2.6 | 0.375 | 0.250 | 0.358 | 1.00 | DP1097 | DPSS1097 |
| 5/16 | 2.7 | 0.375 | 0.250 | 0.358 | 1.00 | DP1098 | DPSS1098 |
| 5/16 | 2.8 | 0.375 | 0.250 | 0.358 | 1.00 | DP1099 | DPSS1099 |
| 5/16 | 2.9 | 0.375 | 0.250 | 0.358 | 1.00 | DP1100 | DPSS1100 |
| 5/16 | 3.0 | 0.375 | 0.250 | 0.358 | 1.00 | DP1101 | DPSS1101 |
| 5/16 | 3.1 | 0.375 | 0.250 | 0.358 | 1.00 | DP1102 | DPSS1102 |
| 5/16 | 3.2 | 0.375 | 0.250 | 0.358 | 1.00 | DP1103 | DPSS1103 |
| 5/16 | 3.3 | 0.375 | 0.250 | 0.358 | 1.00 | DP1104 | DPSS1104 |
| 5/16 | 3.4 | 0.375 | 0.250 | 0.358 | 1.00 | DP1105 | DPSS1105 |
| 5/16 | 3.5 | 0.375 | 0.250 | 0.358 | 1.00 | DP1106 | DPSS1106 |
| 5/16 | 3.6 | 0.375 | 0.250 | 0.358 | 1.00 | DP1107 | DPSS1107 |
| 5/16 | 3.7 | 0.375 | 0.250 | 0.358 | 1.00 | DP1108 | DPSS1108 |
| 5/16 | 3.8 | 0.375 | 0.250 | 0.358 | 1.00 | DP1109 | DPSS1109 |
| 5/16 | 3.9 | 0.375 | 0.250 | 0.358 | 1.00 | DP1110 | DPSS1110 |
| 5/16 | 4.0 | 0.375 | 0.250 | 0.358 | 1.00 | DP1111 | DPSS1111 |
| 5/16 | 4.1 | 0.375 | 0.250 | 0.358 | 1.00 | DP1112 | DPSS1112 |
| 5/16 | 4.2 | 0.375 | 0.250 | 0.358 | 1.00 | DP1113 | DPSS1113 |
| 5/16 | 4.3 | 0.375 | 0.250 | 0.358 | 1.00 | DP1114 | DPSS1114 |
| 5/16 | 4.4 | 0.375 | 0.250 | 0.358 | 1.00 | DP1115 | DPSS1115 |
| 5/16 | 4.5 | 0.375 | 0.250 | 0.358 | 1.00 | DP1116 | DPSS1116 |
| 5/16 | 4.6 | 0.375 | 0.250 | 0.358 | 1.00 | DP1117 | DPSS1117 |
| 5/16 | 4.7 | 0.375 | 0.250 | 0.358 | 1.00 | DP1118 | DPSS1118 |
| 5/16 | 4.8 | 0.375 | 0.250 | 0.358 | 1.00 | DP1119 | DPSS1119 |
| 5/16 | 4.9 | 0.375 | 0.250 | 0.358 | 1.00 | DP1120 | DPSS1120 |
| 5/16 | 5.0 | 0.375 | 0.250 | 0.358 | 1.00 | DP1121 | DPSS1121 |
| 3/8 | 0.5 | 0.500 | 0.250 | 0.426 | 1.00 | DP1122 | DPSS1122 |
| 3/8 | 0.6 | 0.500 | 0.250 | 0.426 | 1.00 | DP1123 | DPSS1123 |
| 3/8 | 0.7 | 0.500 | 0.250 | 0.426 | 1.00 | DP1124 | DPSS1124 |
| 3/8 | 0.8 | 0.500 | 0.250 | 0.426 | 1.00 | DP1125 | DPSS1125 |
| 3/8 | 0.9 | 0.500 | 0.250 | 0.426 | 1.00 | DP1126 | DPSS1126 |
| 3/8 | 1.0 | 0.500 | 0.250 | 0.426 | 1.00 | DP1127 | DPSS1127 |
| 3/8 | 1.1 | 0.500 | 0.250 | 0.426 | 1.00 | DP1128 | DPSS1128 |
| 3/8 | 1.2 | 0.500 | 0.250 | 0.426 | 1.00 | DP1129 | DPSS1129 |
| 3/8 | 1.3 | 0.500 | 0.250 | 0.426 | 1.00 | DP1130 | DPSS1130 |
| 3/8 | 1.4 | 0.500 | 0.250 | 0.426 | 1.00 | DP1131 | DPSS1131 |
| 3/8 | 1.5 | 0.500 | 0.250 | 0.426 | 1.00 | DP1132 | DPSS1132 |
| 3/8 | 1.6 | 0.500 | 0.250 | 0.426 | 1.00 | DP1133 | DPSS1133 |
| 3/8 | 1.7 | 0.500 | 0.250 | 0.426 | 1.00 | DP1134 | DPSS1134 |
| 3/8 | 1.8 | 0.500 | 0.250 | 0.426 | 1.00 | DP1135 | DPSS1135 |
| 3/8 | 1.9 | 0.500 | 0.250 | 0.426 | 1.00 | DP1136 | DPSS1136 |
| 3/8 | 2.0 | 0.500 | 0.250 | 0.426 | 1.00 | DP1137 | DPSS1137 |
| 3/8 | 2.1 | 0.500 | 0.250 | 0.426 | 1.00 | DP1138 | DPSS1138 |
| 3/8 | 2.2 | 0.500 | 0.250 | 0.426 | 1.00 | DP1139 | DPSS1139 |
| 3/8 | 2.3 | 0.500 | 0.250 | 0.426 | 1.00 | DP1140 | DPSS1140 |
| 3/8 | 2.4 | 0.500 | 0.250 | 0.426 | 1.00 | DP1141 | DPSS1141 |
| 3/8 | 2.5 | 0.500 | 0.250 | 0.426 | 1.00 | DP1142 | DPSS1142 |
| 3/8 | 2.6 | 0.500 | 0.250 | 0.426 | 1.00 | DP1143 | DPSS1143 |
| 3/8 | 2.7 | 0.500 | 0.250 | 0.426 | 1.00 | DP1144 | DPSS1144 |
| 3/8 | 2.8 | 0.500 | 0.250 | 0.426 | 1.00 | DP1145 | DPSS1145 |
| 3/8 | 2.9 | 0.500 | 0.250 | 0.426 | 1.00 | DP1146 | DPSS1146 |
| 3/8 | 3.0 | 0.500 | 0.250 | 0.426 | 1.00 | DP1147 | DPSS1147 |
| 3/8 | 3.1 | 0.500 | 0.250 | 0.426 | 1.00 | DP1148 | DPSS1148 |
| 3/8 | 3.2 | 0.500 | 0.250 | 0.426 | 1.00 | DP1149 | DPSS1149 |
| 3/8 | 3.3 | 0.500 | 0.250 | 0.426 | 1.00 | DP1150 | DPSS1150 |
| 3/8 | 3.4 | 0.500 | 0.250 | 0.426 | 1.00 | DP1151 | DPSS1151 |
| 3/8 | 3.5 | 0.500 | 0.250 | 0.426 | 1.00 | DP1152 | DPSS1152 |
| 3/8 | 3.6 | 0.500 | 0.250 | 0.426 | 1.00 | DP1153 | DPSS1153 |
| 3/8 | 3.7 | 0.500 | 0.250 | 0.426 | 1.00 | DP1154 | DPSS1154 |
| 3/8 | 3.8 | 0.500 | 0.250 | 0.426 | 1.00 | DP1155 | DPSS1155 |
| 3/8 | 3.9 | 0.500 | 0.250 | 0.426 | 1.00 | DP1156 | DPSS1156 |
| 3/8 | 4.0 | 0.500 | 0.250 | 0.426 | 1.00 | DP1157 | DPSS1157 |
| 3/8 | 4.1 | 0.500 | 0.250 | 0.426 | 1.00 | DP1158 | DPSS1158 |
| 3/8 | 4.2 | 0.500 | 0.250 | 0.426 | 1.00 | DP1159 | DPSS1159 |
| 3/8 | 4.3 | 0.500 | 0.250 | 0.426 | 1.00 | DP1160 | DPSS1160 |
| 3/8 | 4.4 | 0.500 | 0.250 | 0.426 | 1.00 | DP1161 | DPSS1161 |
| 3/8 | 4.5 | 0.500 | 0.250 | 0.426 | 1.00 | DP1162 | DPSS1162 |
| 3/8 | 4.6 | 0.500 | 0.250 | 0.426 | 1.00 | DP1163 | DPSS1163 |
| 3/8 | 4.7 | 0.500 | 0.250 | 0.426 | 1.00 | DP1164 | DPSS1164 |
| 3/8 | 4.8 | 0.500 | 0.250 | 0.426 | 1.00 | DP1165 | DPSS1165 |
| 3/8 | 4.9 | 0.500 | 0.250 | 0.426 | 1.00 | DP1166 | DPSS1166 |
| 3/8 | 5.0 | 0.500 | 0.250 | 0.426 | 1.00 | DP1167 | DPSS1167 |
| 3/8 | 5.1 | 0.500 | 0.250 | 0.426 | 1.00 | DP1168 | DPSS1168 |
| 3/8 | 5.2 | 0.500 | 0.250 | 0.426 | 1.00 | DP1169 | DPSS1169 |
| 3/8 | 5.3 | 0.500 | 0.250 | 0.426 | 1.00 | DP1170 | DPSS1170 |
| 3/8 | 5.4 | 0.500 | 0.250 | 0.426 | 1.00 | DP1171 | DPSS1171 |
| 3/8 | 5.5 | 0.500 | 0.250 | 0.426 | 1.00 | DP1172 | DPSS1172 |
| 3/8 | 5.6 | 0.500 | 0.250 | 0.426 | 1.00 | DP1173 | DPSS1173 |
| 3/8 | 5.7 | 0.500 | 0.250 | 0.426 | 1.00 | DP1174 | DPSS1174 |
| 3/8 | 5.8 | 0.500 | 0.250 | 0.426 | 1.00 | DP1175 | DPSS1175 |
| 3/8 | 5.9 | 0.500 | 0.250 | 0.426 | 1.00 | DP1176 | DPSS1176 |
| 3/8 | 6.0 | 0.500 | 0.250 | 0.426 | 1.00 | DP1177 | DPSS1177 |
| 7/16 | 0.5 | 0.562 | 0.250 | 0.496 | 1.00 | DP1178 | DPSS1178 |
| 7/16 | 0.6 | 0.562 | 0.250 | 0.496 | 1.00 | DP1179 | DPSS1179 |
| 7/16 | 0.7 | 0.562 | 0.250 | 0.496 | 1.00 | DP1180 | DPSS1180 |
| 7/16 | 0.8 | 0.562 | 0.250 | 0.496 | 1.00 | DP1181 | DPSS1181 |
| 7/16 | 0.9 | 0.562 | 0.250 | 0.496 | 1.00 | DP1182 | DPSS1182 |
| 7/16 | 1.0 | 0.562 | 0.250 | 0.496 | 1.00 | DP1183 | DPSS1183 |
| 7/16 | 1.1 | 0.562 | 0.250 | 0.496 | 1.00 | DP1184 | DPSS1184 |
| 7/16 | 1.2 | 0.562 | 0.250 | 0.496 | 1.00 | DP1185 | DPSS1185 |
| 7/16 | 1.3 | 0.562 | 0.250 | 0.496 | 1.00 | DP1186 | DPSS1186 |
| 7/16 | 1.4 | 0.562 | 0.250 | 0.496 | 1.00 | DP1187 | DPSS1187 |
| 7/16 | 1.5 | 0.562 | 0.250 | 0.496 | 1.00 | DP1188 | DPSS1188 |
| 7/16 | 1.6 | 0.562 | 0.250 | 0.496 | 1.00 | DP1189 | DPSS1189 |
| 7/16 | 1.7 | 0.562 | 0.250 | 0.496 | 1.00 | DP1190 | DPSS1190 |
| 7/16 | 1.8 | 0.562 | 0.250 | 0.496 | 1.00 | DP1191 | DPSS1191 |
| 7/16 | 1.9 | 0.562 | 0.250 | 0.496 | 1.00 | DP1192 | DPSS1192 |
| 7/16 | 2.0 | 0.562 | 0.250 | 0.496 | 1.00 | DP1193 | DPSS1193 |
| 7/16 | 2.1 | 0.562 | 0.250 | 0.496 | 1.00 | DP1194 | DPSS1194 |
| 7/16 | 2.2 | 0.562 | 0.250 | 0.496 | 1.00 | DP1195 | DPSS1195 |
| 7/16 | 2.3 | 0.562 | 0.250 | 0.496 | 1.00 | DP1196 | DPSS1196 |
| 7/16 | 2.4 | 0.562 | 0.250 | 0.496 | 1.00 | DP1197 | DPSS1197 |
| 7/16 | 2.5 | 0.562 | 0.250 | 0.496 | 1.00 | DP1198 | DPSS1198 |
| 7/16 | 2.6 | 0.562 | 0.250 | 0.496 | 1.00 | DP1199 | DPSS1199 |
| 7/16 | 2.7 | 0.562 | 0.250 | 0.496 | 1.00 | DP1200 | DPSS1200 |
| 7/16 | 2.8 | 0.562 | 0.250 | 0.496 | 1.00 | DP1201 | DPSS1201 |
| 7/16 | 2.9 | 0.562 | 0.250 | 0.496 | 1.00 | DP1202 | DPSS1202 |
| 7/16 | 3.0 | 0.562 | 0.250 | 0.496 | 1.00 | DP1203 | DPSS1203 |
| 7/16 | 3.1 | 0.562 | 0.250 | 0.496 | 1.00 | DP1204 | DPSS1204 |
| 7/16 | 3.2 | 0.562 | 0.250 | 0.496 | 1.00 | DP1205 | DPSS1205 |
| 7/16 | 3.3 | 0.562 | 0.250 | 0.496 | 1.00 | DP1206 | DPSS1206 |
| 7/16 | 3.4 | 0.562 | 0.250 | 0.496 | 1.00 | DP1207 | DPSS1207 |
| 7/16 | 3.5 | 0.562 | 0.250 | 0.496 | 1.00 | DP1208 | DPSS1208 |
| 7/16 | 3.6 | 0.562 | 0.250 | 0.496 | 1.00 | DP1209 | DPSS1209 |
| 7/16 | 3.7 | 0.562 | 0.250 | 0.496 | 1.00 | DP1210 | DPSS1210 |
| 7/16 | 3.8 | 0.562 | 0.250 | 0.496 | 1.00 | DP1211 | DPSS1211 |
| 7/16 | 3.9 | 0.562 | 0.250 | 0.496 | 1.00 | DP1212 | DPSS1212 |
| 7/16 | 4.0 | 0.562 | 0.250 | 0.496 | 1.00 | DP1213 | DPSS1213 |
| 7/16 | 4.1 | 0.562 | 0.250 | 0.496 | 1.00 | DP1214 | DPSS1214 |
| 7/16 | 4.2 | 0.562 | 0.250 | 0.496 | 1.00 | DP1215 | DPSS1215 |
| 7/16 | 4.3 | 0.562 | 0.250 | 0.496 | 1.00 | DP1216 | DPSS1216 |
| 7/16 | 4.4 | 0.562 | 0.250 | 0.496 | 1.00 | DP1217 | DPSS1217 |
| 7/16 | 4.5 | 0.562 | 0.250 | 0.496 | 1.00 | DP1218 | DPSS1218 |
| 7/16 | 4.6 | 0.562 | 0.250 | 0.496 | 1.00 | DP1219 | DPSS1219 |
| 7/16 | 4.7 | 0.562 | 0.250 | 0.496 | 1.00 | DP1220 | DPSS1220 |
| 7/16 | 4.8 | 0.562 | 0.250 | 0.496 | 1.00 | DP1221 | DPSS1221 |
| 7/16 | 4.9 | 0.562 | 0.250 | 0.496 | 1.00 | DP1222 | DPSS1222 |
| 7/16 | 5.0 | 0.562 | 0.250 | 0.496 | 1.00 | DP1223 | DPSS1223 |
| 7/16 | 5.1 | 0.562 | 0.250 | 0.496 | 1.00 | DP1224 | DPSS1224 |
| 7/16 | 5.2 | 0.562 | 0.250 | 0.496 | 1.00 | DP1225 | DPSS1225 |
| 7/16 | 5.3 | 0.562 | 0.250 | 0.496 | 1.00 | DP1226 | DPSS1226 |
| 7/16 | 5.4 | 0.562 | 0.250 | 0.496 | 1.00 | DP1227 | DPSS1227 |
| 7/16 | 5.5 | 0.562 | 0.250 | 0.496 | 1.00 | DP1228 | DPSS1228 |
| 7/16 | 5.6 | 0.562 | 0.250 | 0.496 | 1.00 | DP1229 | DPSS1229 |
| 7/16 | 5.7 | 0.562 | 0.250 | 0.496 | 1.00 | DP1230 | DPSS1230 |
| 7/16 | 5.8 | 0.562 | 0.250 | 0.496 | 1.00 | DP1231 | DPSS1231 |
| 7/16 | 5.9 | 0.562 | 0.250 | 0.496 | 1.00 | DP1232 | DPSS1232 |
| 7/16 | 6.0 | 0.562 | 0.250 | 0.496 | 1.00 | DP1233 | DPSS1233 |
| 1/2 | 0.5 | 0.625 | 0.312 | 0.570 | 1.25 | DP1234 | DPSS1234 |
| 1/2 | 0.6 | 0.625 | 0.312 | 0.570 | 1.25 | DP1235 | DPSS1235 |
| 1/2 | 0.7 | 0.625 | 0.312 | 0.570 | 1.25 | DP1236 | DPSS1236 |
| 1/2 | 0.8 | 0.625 | 0.312 | 0.570 | 1.25 | DP1237 | DPSS1237 |
| 1/2 | 0.9 | 0.625 | 0.312 | 0.570 | 1.25 | DP1238 | DPSS1238 |
| 1/2 | 1.0 | 0.625 | 0.312 | 0.570 | 1.25 | DP1239 | DPSS1239 |
| 1/2 | 1.1 | 0.625 | 0.312 | 0.570 | 1.25 | DP1240 | DPSS1240 |
| 1/2 | 1.2 | 0.625 | 0.312 | 0.570 | 1.25 | DP1241 | DPSS1241 |
| 1/2 | 1.3 | 0.625 | 0.312 | 0.570 | 1.25 | DP1242 | DPSS1242 |
| 1/2 | 1.4 | 0.625 | 0.312 | 0.570 | 1.25 | DP1243 | DPSS1243 |
| 1/2 | 1.5 | 0.625 | 0.312 | 0.570 | 1.25 | DP1244 | DPSS1244 |
| 1/2 | 1.6 | 0.625 | 0.312 | 0.570 | 1.25 | DP1245 | DPSS1245 |
| 1/2 | 1.7 | 0.625 | 0.312 | 0.570 | 1.25 | DP1246 | DPSS1246 |
| 1/2 | 1.8 | 0.625 | 0.312 | 0.570 | 1.25 | DP1247 | DPSS1247 |
| 1/2 | 1.9 | 0.625 | 0.312 | 0.570 | 1.25 | DP1248 | DPSS1248 |
| 1/2 | 2.0 | 0.625 | 0.312 | 0.570 | 1.25 | DP1249 | DPSS1249 |
| 1/2 | 2.1 | 0.625 | 0.312 | 0.570 | 1.25 | DP1250 | DPSS1250 |
| 1/2 | 2.2 | 0.625 | 0.312 | 0.570 | 1.25 | DP1251 | DPSS1251 |
| 1/2 | 2.3 | 0.625 | 0.312 | 0.570 | 1.25 | DP1252 | DPSS1252 |
| 1/2 | 2.4 | 0.625 | 0.312 | 0.570 | 1.25 | DP1253 | DPSS1253 |
| 1/2 | 2.5 | 0.625 | 0.312 | 0.570 | 1.25 | DP1254 | DPSS1254 |
| 1/2 | 2.6 | 0.625 | 0.312 | 0.570 | 1.25 | DP1255 | DPSS1255 |
| 1/2 | 2.7 | 0.625 | 0.312 | 0.570 | 1.25 | DP1256 | DPSS1256 |
| 1/2 | 2.8 | 0.625 | 0.312 | 0.570 | 1.25 | DP1257 | DPSS1257 |
| 1/2 | 2.9 | 0.625 | 0.312 | 0.570 | 1.25 | DP1258 | DPSS1258 |
| 1/2 | 3.0 | 0.625 | 0.312 | 0.570 | 1.25 | DP1259 | DPSS1259 |
| 1/2 | 3.1 | 0.625 | 0.312 | 0.570 | 1.25 | DP1260 | DPSS1260 |
| 1/2 | 3.2 | 0.625 | 0.312 | 0.570 | 1.25 | DP1261 | DPSS1261 |
| 1/2 | 3.3 | 0.625 | 0.312 | 0.570 | 1.25 | DP1262 | DPSS1262 |
| 1/2 | 3.4 | 0.625 | 0.312 | 0.570 | 1.25 | DP1263 | DPSS1263 |
| 1/2 | 3.5 | 0.625 | 0.312 | 0.570 | 1.25 | DP1264 | DPSS1264 |
| 1/2 | 3.6 | 0.625 | 0.312 | 0.570 | 1.25 | DP1265 | DPSS1265 |
| 1/2 | 3.7 | 0.625 | 0.312 | 0.570 | 1.25 | DP1266 | DPSS1266 |
| 1/2 | 3.8 | 0.625 | 0.312 | 0.570 | 1.25 | DP1267 | DPSS1267 |
| 1/2 | 3.9 | 0.625 | 0.312 | 0.570 | 1.25 | DP1268 | DPSS1268 |
| 1/2 | 4.0 | 0.625 | 0.312 | 0.570 | 1.25 | DP1269 | DPSS1269 |
| 1/2 | 4.1 | 0.625 | 0.312 | 0.570 | 1.25 | DP1270 | DPSS1270 |
| 1/2 | 4.2 | 0.625 | 0.312 | 0.570 | 1.25 | DP1271 | DPSS1271 |
| 1/2 | 4.3 | 0.625 | 0.312 | 0.570 | 1.25 | DP1272 | DPSS1272 |
| 1/2 | 4.4 | 0.625 | 0.312 | 0.570 | 1.25 | DP1273 | DPSS1273 |
| 1/2 | 4.5 | 0.625 | 0.312 | 0.570 | 1.25 | DP1274 | DPSS1274 |
| 1/2 | 4.6 | 0.625 | 0.312 | 0.570 | 1.25 | DP1275 | DPSS1275 |
| 1/2 | 4.7 | 0.625 | 0.312 | 0.570 | 1.25 | DP1276 | DPSS1276 |
| 1/2 | 4.8 | 0.625 | 0.312 | 0.570 | 1.25 | DP1277 | DPSS1277 |
| 1/2 | 4.9 | 0.625 | 0.312 | 0.570 | 1.25 | DP1278 | DPSS1278 |
| 1/2 | 5.0 | 0.625 | 0.312 | 0.570 | 1.25 | DP1279 | DPSS1279 |
| 1/2 | 5.1 | 0.625 | 0.312 | 0.570 | 1.25 | DP1280 | DPSS1280 |
| 1/2 | 5.2 | 0.625 | 0.312 | 0.570 | 1.25 | DP1281 | DPSS1281 |
| 1/2 | 5.3 | 0.625 | 0.312 | 0.570 | 1.25 | DP1282 | DPSS1282 |
| 1/2 | 5.4 | 0.625 | 0.312 | 0.570 | 1.25 | DP1283 | DPSS1283 |
| 1/2 | 5.5 | 0.625 | 0.312 | 0.570 | 1.25 | DP1284 | DPSS1284 |
| 1/2 | 5.6 | 0.625 | 0.312 | 0.570 | 1.25 | DP1285 | DPSS1285 |
| 1/2 | 5.7 | 0.625 | 0.312 | 0.570 | 1.25 | DP1286 | DPSS1286 |
| 1/2 | 5.8 | 0.625 | 0.312 | 0.570 | 1.25 | DP1287 | DPSS1287 |
| 1/2 | 5.9 | 0.625 | 0.312 | 0.570 | 1.25 | DP1288 | DPSS1288 |
| 1/2 | 6.0 | 0.625 | 0.312 | 0.570 | 1.25 | DP1289 | DPSS1289 |
| 1/2 | 6.1 | 0.625 | 0.312 | 0.570 | 1.25 | DP1290 | DPSS1290 |
| 1/2 | 6.2 | 0.625 | 0.312 | 0.570 | 1.25 | DP1291 | DPSS1291 |
| 1/2 | 6.3 | 0.625 | 0.312 | 0.570 | 1.25 | DP1292 | DPSS1292 |
| 1/2 | 6.4 | 0.625 | 0.312 | 0.570 | 1.25 | DP1293 | DPSS1293 |
| 1/2 | 6.5 | 0.625 | 0.312 | 0.570 | 1.25 | DP1294 | DPSS1294 |
| 1/2 | 6.6 | 0.625 | 0.312 | 0.570 | 1.25 | DP1295 | DPSS1295 |
| 1/2 | 6.7 | 0.625 | 0.312 | 0.570 | 1.25 | DP1296 | DPSS1296 |
| 1/2 | 6.8 | 0.625 | 0.312 | 0.570 | 1.25 | DP1297 | DPSS1297 |
| 1/2 | 6.9 | 0.625 | 0.312 | 0.570 | 1.25 | DP1298 | DPSS1298 |
| 1/2 | 7.0 | 0.625 | 0.312 | 0.570 | 1.25 | DP1299 | DPSS1299 |
| 9/16 | 1.0 | 0.687 | 0.312 | 0.642 | 1.25 | DP1300 | DPSS1300 |
| 9/16 | 1.1 | 0.687 | 0.312 | 0.642 | 1.25 | DP1301 | DPSS1301 |
| 9/16 | 1.2 | 0.687 | 0.312 | 0.642 | 1.25 | DP1302 | DPSS1302 |
| 9/16 | 1.3 | 0.687 | 0.312 | 0.642 | 1.25 | DP1303 | DPSS1303 |
| 9/16 | 1.4 | 0.687 | 0.312 | 0.642 | 1.25 | DP1304 | DPSS1304 |
| 9/16 | 1.5 | 0.687 | 0.312 | 0.642 | 1.25 | DP1305 | DPSS1305 |
| 9/16 | 1.6 | 0.687 | 0.312 | 0.642 | 1.25 | DP1306 | DPSS1306 |
| 9/16 | 1.7 | 0.687 | 0.312 | 0.642 | 1.25 | DP1307 | DPSS1307 |
| 9/16 | 1.8 | 0.687 | 0.312 | 0.642 | 1.25 | DP1308 | DPSS1308 |
| 9/16 | 1.9 | 0.687 | 0.312 | 0.642 | 1.25 | DP1309 | DPSS1309 |
| 9/16 | 2.0 | 0.687 | 0.312 | 0.642 | 1.25 | DP1310 | DPSS1310 |
| 9/16 | 2.1 | 0.687 | 0.312 | 0.642 | 1.25 | DP1311 | DPSS1311 |
| 9/16 | 2.2 | 0.687 | 0.312 | 0.642 | 1.25 | DP1312 | DPSS1312 |
| 9/16 | 2.3 | 0.687 | 0.312 | 0.642 | 1.25 | DP1313 | DPSS1313 |
| 9/16 | 2.4 | 0.687 | 0.312 | 0.642 | 1.25 | DP1314 | DPSS1314 |
| 9/16 | 2.5 | 0.687 | 0.312 | 0.642 | 1.25 | DP1315 | DPSS1315 |
| 9/16 | 2.6 | 0.687 | 0.312 | 0.642 | 1.25 | DP1316 | DPSS1316 |
| 9/16 | 2.7 | 0.687 | 0.312 | 0.642 | 1.25 | DP1317 | DPSS1317 |
| 9/16 | 2.8 | 0.687 | 0.312 | 0.642 | 1.25 | DP1318 | DPSS1318 |
| 9/16 | 2.9 | 0.687 | 0.312 | 0.642 | 1.25 | DP1319 | DPSS1319 |
| 9/16 | 3.0 | 0.687 | 0.312 | 0.642 | 1.25 | DP1320 | DPSS1320 |
| 9/16 | 3.1 | 0.687 | 0.312 | 0.642 | 1.25 | DP1321 | DPSS1321 |
| 9/16 | 3.2 | 0.687 | 0.312 | 0.642 | 1.25 | DP1322 | DPSS1322 |
| 9/16 | 3.3 | 0.687 | 0.312 | 0.642 | 1.25 | DP1323 | DPSS1323 |
| 9/16 | 3.4 | 0.687 | 0.312 | 0.642 | 1.25 | DP1324 | DPSS1324 |
| 9/16 | 3.5 | 0.687 | 0.312 | 0.642 | 1.25 | DP1325 | DPSS1325 |
| 9/16 | 3.6 | 0.687 | 0.312 | 0.642 | 1.25 | DP1326 | DPSS1326 |
| 9/16 | 3.7 | 0.687 | 0.312 | 0.642 | 1.25 | DP1327 | DPSS1327 |
| 9/16 | 3.8 | 0.687 | 0.312 | 0.642 | 1.25 | DP1328 | DPSS1328 |
| 9/16 | 3.9 | 0.687 | 0.312 | 0.642 | 1.25 | DP1329 | DPSS1329 |
| 9/16 | 4.0 | 0.687 | 0.312 | 0.642 | 1.25 | DP1330 | DPSS1330 |
| 9/16 | 4.1 | 0.687 | 0.312 | 0.642 | 1.25 | DP1331 | DPSS1331 |
| 9/16 | 4.2 | 0.687 | 0.312 | 0.642 | 1.25 | DP1332 | DPSS1332 |
| 9/16 | 4.3 | 0.687 | 0.312 | 0.642 | 1.25 | DP1333 | DPSS1333 |
| 9/16 | 4.4 | 0.687 | 0.312 | 0.642 | 1.25 | DP1334 | DPSS1334 |
| 9/16 | 4.5 | 0.687 | 0.312 | 0.642 | 1.25 | DP1335 | DPSS1335 |
| 9/16 | 4.6 | 0.687 | 0.312 | 0.642 | 1.25 | DP1336 | DPSS1336 |
| 9/16 | 4.7 | 0.687 | 0.312 | 0.642 | 1.25 | DP1337 | DPSS1337 |
| 9/16 | 4.8 | 0.687 | 0.312 | 0.642 | 1.25 | DP1338 | DPSS1338 |
| 9/16 | 4.9 | 0.687 | 0.312 | 0.642 | 1.25 | DP1339 | DPSS1339 |
| 9/16 | 5.0 | 0.687 | 0.312 | 0.642 | 1.25 | DP1340 | DPSS1340 |
| 9/16 | 5.1 | 0.687 | 0.312 | 0.642 | 1.25 | DP1341 | DPSS1341 |
| 9/16 | 5.2 | 0.687 | 0.312 | 0.642 | 1.25 | DP1342 | DPSS1342 |
| 9/16 | 5.3 | 0.687 | 0.312 | 0.642 | 1.25 | DP1343 | DPSS1343 |
| 9/16 | 5.4 | 0.687 | 0.312 | 0.642 | 1.25 | DP1344 | DPSS1344 |
| 9/16 | 5.5 | 0.687 | 0.312 | 0.642 | 1.25 | DP1345 | DPSS1345 |
| 9/16 | 5.6 | 0.687 | 0.312 | 0.642 | 1.25 | DP1346 | DPSS1346 |
| 9/16 | 5.7 | 0.687 | 0.312 | 0.642 | 1.25 | DP1347 | DPSS1347 |
| 9/16 | 5.8 | 0.687 | 0.312 | 0.642 | 1.25 | DP1348 | DPSS1348 |
| 9/16 | 5.9 | 0.687 | 0.312 | 0.642 | 1.25 | DP1349 | DPSS1349 |
| 9/16 | 6.0 | 0.687 | 0.312 | 0.642 | 1.25 | DP1350 | DPSS1350 |
| 9/16 | 6.1 | 0.687 | 0.312 | 0.642 | 1.25 | DP1351 | DPSS1351 |
| 9/16 | 6.2 | 0.687 | 0.312 | 0.642 | 1.25 | DP1352 | DPSS1352 |
| 9/16 | 6.3 | 0.687 | 0.312 | 0.642 | 1.25 | DP1353 | DPSS1353 |
| 9/16 | 6.4 | 0.687 | 0.312 | 0.642 | 1.25 | DP1354 | DPSS1354 |
| 9/16 | 6.5 | 0.687 | 0.312 | 0.642 | 1.25 | DP1355 | DPSS1355 |
| 9/16 | 6.6 | 0.687 | 0.312 | 0.642 | 1.25 | DP1356 | DPSS1356 |
| 9/16 | 6.7 | 0.687 | 0.312 | 0.642 | 1.25 | DP1357 | DPSS1357 |
| 9/16 | 6.8 | 0.687 | 0.312 | 0.642 | 1.25 | DP1358 | DPSS1358 |
| 9/16 | 6.9 | 0.687 | 0.312 | 0.642 | 1.25 | DP1359 | DPSS1359 |
| 9/16 | 7.0 | 0.687 | 0.312 | 0.642 | 1.25 | DP1360 | DPSS1360 |
| 5/8 | 1.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1361 | DPSS1361 |
| 5/8 | 1.1 | 0.750 | 0.375 | 0.710 | 1.25 | DP1362 | DPSS1362 |
| 5/8 | 1.2 | 0.750 | 0.375 | 0.710 | 1.25 | DP1363 | DPSS1363 |
| 5/8 | 1.3 | 0.750 | 0.375 | 0.710 | 1.25 | DP1364 | DPSS1364 |
| 5/8 | 1.4 | 0.750 | 0.375 | 0.710 | 1.25 | DP1365 | DPSS1365 |
| 5/8 | 1.5 | 0.750 | 0.375 | 0.710 | 1.25 | DP1366 | DPSS1366 |
| 5/8 | 1.6 | 0.750 | 0.375 | 0.710 | 1.25 | DP1367 | DPSS1367 |
| 5/8 | 1.7 | 0.750 | 0.375 | 0.710 | 1.25 | DP1368 | DPSS1368 |
| 5/8 | 1.8 | 0.750 | 0.375 | 0.710 | 1.25 | DP1369 | DPSS1369 |
| 5/8 | 1.9 | 0.750 | 0.375 | 0.710 | 1.25 | DP1370 | DPSS1370 |
| 5/8 | 2.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1371 | DPSS1371 |
| 5/8 | 2.1 | 0.750 | 0.375 | 0.710 | 1.25 | DP1372 | DPSS1372 |
| 5/8 | 2.2 | 0.750 | 0.375 | 0.710 | 1.25 | DP1373 | DPSS1373 |
| 5/8 | 2.3 | 0.750 | 0.375 | 0.710 | 1.25 | DP1374 | DPSS1374 |
| 5/8 | 2.4 | 0.750 | 0.375 | 0.710 | 1.25 | DP1375 | DPSS1375 |
| 5/8 | 2.5 | 0.750 | 0.375 | 0.710 | 1.25 | DP1376 | DPSS1376 |
| 5/8 | 2.6 | 0.750 | 0.375 | 0.710 | 1.25 | DP1377 | DPSS1377 |
| 5/8 | 2.7 | 0.750 | 0.375 | 0.710 | 1.25 | DP1378 | DPSS1378 |
| 5/8 | 2.8 | 0.750 | 0.375 | 0.710 | 1.25 | DP1379 | DPSS1379 |
| 5/8 | 2.9 | 0.750 | 0.375 | 0.710 | 1.25 | DP1380 | DPSS1380 |
| 5/8 | 3.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1381 | DPSS1381 |
| 5/8 | 3.1 | 0.750 | 0.375 | 0.710 | 1.25 | DP1382 | DPSS1382 |
| 5/8 | 3.2 | 0.750 | 0.375 | 0.710 | 1.25 | DP1383 | DPSS1383 |
| 5/8 | 3.3 | 0.750 | 0.375 | 0.710 | 1.25 | DP1384 | DPSS1384 |
| 5/8 | 3.4 | 0.750 | 0.375 | 0.710 | 1.25 | DP1385 | DPSS1385 |
| 5/8 | 3.5 | 0.750 | 0.375 | 0.710 | 1.25 | DP1386 | DPSS1386 |
| 5/8 | 3.6 | 0.750 | 0.375 | 0.710 | 1.25 | DP1387 | DPSS1387 |
| 5/8 | 3.7 | 0.750 | 0.375 | 0.710 | 1.25 | DP1388 | DPSS1388 |
| 5/8 | 3.8 | 0.750 | 0.375 | 0.710 | 1.25 | DP1389 | DPSS1389 |
| 5/8 | 3.9 | 0.750 | 0.375 | 0.710 | 1.25 | DP1390 | DPSS1390 |
| 5/8 | 4.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1391 | DPSS1391 |
| 5/8 | 4.1 | 0.750 | 0.375 | 0.710 | 1.25 | DP1392 | DPSS1392 |
| 5/8 | 4.2 | 0.750 | 0.375 | 0.710 | 1.25 | DP1393 | DPSS1393 |
| 5/8 | 4.3 | 0.750 | 0.375 | 0.710 | 1.25 | DP1394 | DPSS1394 |
| 5/8 | 4.4 | 0.750 | 0.375 | 0.710 | 1.25 | DP1395 | DPSS1395 |
| 5/8 | 4.5 | 0.750 | 0.375 | 0.710 | 1.25 | DP1396 | DPSS1396 |
| 5/8 | 4.6 | 0.750 | 0.375 | 0.710 | 1.25 | DP1397 | DPSS1397 |
| 5/8 | 4.7 | 0.750 | 0.375 | 0.710 | 1.25 | DP1398 | DPSS1398 |
| 5/8 | 4.8 | 0.750 | 0.375 | 0.710 | 1.25 | DP1399 | DPSS1399 |
| 5/8 | 4.9 | 0.750 | 0.375 | 0.710 | 1.25 | DP1400 | DPSS1400 |
| 5/8 | 5.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1401 | DPSS1401 |
| 5/8 | 5.1 | 0.750 | 0.375 | 0.710 | 1.25 | DP1402 | DPSS1402 |
| 5/8 | 5.2 | 0.750 | 0.375 | 0.710 | 1.25 | DP1403 | DPSS1403 |
| 5/8 | 5.3 | 0.750 | 0.375 | 0.710 | 1.25 | DP1404 | DPSS1404 |
| 5/8 | 5.4 | 0.750 | 0.375 | 0.710 | 1.25 | DP1405 | DPSS1405 |
| 5/8 | 5.5 | 0.750 | 0.375 | 0.710 | 1.25 | DP1406 | DPSS1406 |
| 5/8 | 5.6 | 0.750 | 0.375 | 0.710 | 1.25 | DP1407 | DPSS1407 |
| 5/8 | 5.7 | 0.750 | 0.375 | 0.710 | 1.25 | DP1408 | DPSS1408 |
| 5/8 | 5.8 | 0.750 | 0.375 | 0.710 | 1.25 | DP1409 | DPSS1409 |
| 5/8 | 5.9 | 0.750 | 0.375 | 0.710 | 1.25 | DP1410 | DPSS1410 |
| 5/8 | 6.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1411 | DPSS1411 |
| 5/8 | 6.1 | 0.750 | 0.375 | 0.710 | 1.25 | DP1412 | DPSS1412 |
| 5/8 | 6.2 | 0.750 | 0.375 | 0.710 | 1.25 | DP1413 | DPSS1413 |
| 5/8 | 6.3 | 0.750 | 0.375 | 0.710 | 1.25 | DP1414 | DPSS1414 |
| 5/8 | 6.4 | 0.750 | 0.375 | 0.710 | 1.25 | DP1415 | DPSS1415 |
| 5/8 | 6.5 | 0.750 | 0.375 | 0.710 | 1.25 | DP1416 | DPSS1416 |
| 5/8 | 6.6 | 0.750 | 0.375 | 0.710 | 1.25 | DP1417 | DPSS1417 |
| 5/8 | 6.7 | 0.750 | 0.375 | 0.710 | 1.25 | DP1418 | DPSS1418 |
| 5/8 | 6.8 | 0.750 | 0.375 | 0.710 | 1.25 | DP1419 | DPSS1419 |
| 5/8 | 6.9 | 0.750 | 0.375 | 0.710 | 1.25 | DP1420 | DPSS1420 |
| 5/8 | 7.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1421 | DPSS1421 |
| 5/8 | 7.1 | 0.750 | 0.375 | 0.710 | 1.25 | DP1422 | DPSS1422 |
| 5/8 | 7.2 | 0.750 | 0.375 | 0.710 | 1.25 | DP1423 | DPSS1423 |
| 5/8 | 7.3 | 0.750 | 0.375 | 0.710 | 1.25 | DP1424 | DPSS1424 |
| 5/8 | 7.4 | 0.750 | 0.375 | 0.710 | 1.25 | DP1425 | DPSS1425 |
| 5/8 | 7.5 | 0.750 | 0.375 | 0.710 | 1.25 | DP1426 | DPSS1426 |
| 5/8 | 7.6 | 0.750 | 0.375 | 0.710 | 1.25 | DP1427 | DPSS1427 |
| 5/8 | 7.7 | 0.750 | 0.375 | 0.710 | 1.25 | DP1428 | DPSS1428 |
| 5/8 | 7.8 | 0.750 | 0.375 | 0.710 | 1.25 | DP1429 | DPSS1429 |
| 5/8 | 7.9 | 0.750 | 0.375 | 0.710 | 1.25 | DP1430 | DPSS1430 |
| 5/8 | 8.0 | 0.750 | 0.375 | 0.710 | 1.25 | DP1431 | DPSS1431 |
| 3/4 | 1.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1432 | DPSS1432 |
| 3/4 | 1.1 | 0.937 | 0.375 | 0.856 | 1.50 | DP1433 | DPSS1433 |
| 3/4 | 1.2 | 0.937 | 0.375 | 0.856 | 1.50 | DP1434 | DPSS1434 |
| 3/4 | 1.3 | 0.937 | 0.375 | 0.856 | 1.50 | DP1435 | DPSS1435 |
| 3/4 | 1.4 | 0.937 | 0.375 | 0.856 | 1.50 | DP1436 | DPSS1436 |
| 3/4 | 1.5 | 0.937 | 0.375 | 0.856 | 1.50 | DP1437 | DPSS1437 |
| 3/4 | 1.6 | 0.937 | 0.375 | 0.856 | 1.50 | DP1438 | DPSS1438 |
| 3/4 | 1.7 | 0.937 | 0.375 | 0.856 | 1.50 | DP1439 | DPSS1439 |
| 3/4 | 1.8 | 0.937 | 0.375 | 0.856 | 1.50 | DP1440 | DPSS1440 |
| 3/4 | 1.9 | 0.937 | 0.375 | 0.856 | 1.50 | DP1441 | DPSS1441 |
| 3/4 | 2.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1442 | DPSS1442 |
| 3/4 | 2.1 | 0.937 | 0.375 | 0.856 | 1.50 | DP1443 | DPSS1443 |
| 3/4 | 2.2 | 0.937 | 0.375 | 0.856 | 1.50 | DP1444 | DPSS1444 |
| 3/4 | 2.3 | 0.937 | 0.375 | 0.856 | 1.50 | DP1445 | DPSS1445 |
| 3/4 | 2.4 | 0.937 | 0.375 | 0.856 | 1.50 | DP1446 | DPSS1446 |
| 3/4 | 2.5 | 0.937 | 0.375 | 0.856 | 1.50 | DP1447 | DPSS1447 |
| 3/4 | 2.6 | 0.937 | 0.375 | 0.856 | 1.50 | DP1448 | DPSS1448 |
| 3/4 | 2.7 | 0.937 | 0.375 | 0.856 | 1.50 | DP1449 | DPSS1449 |
| 3/4 | 2.8 | 0.937 | 0.375 | 0.856 | 1.50 | DP1450 | DPSS1450 |
| 3/4 | 2.9 | 0.937 | 0.375 | 0.856 | 1.50 | DP1451 | DPSS1451 |
| 3/4 | 3.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1452 | DPSS1452 |
| 3/4 | 3.1 | 0.937 | 0.375 | 0.856 | 1.50 | DP1453 | DPSS1453 |
| 3/4 | 3.2 | 0.937 | 0.375 | 0.856 | 1.50 | DP1454 | DPSS1454 |
| 3/4 | 3.3 | 0.937 | 0.375 | 0.856 | 1.50 | DP1455 | DPSS1455 |
| 3/4 | 3.4 | 0.937 | 0.375 | 0.856 | 1.50 | DP1456 | DPSS1456 |
| 3/4 | 3.5 | 0.937 | 0.375 | 0.856 | 1.50 | DP1457 | DPSS1457 |
| 3/4 | 3.6 | 0.937 | 0.375 | 0.856 | 1.50 | DP1458 | DPSS1458 |
| 3/4 | 3.7 | 0.937 | 0.375 | 0.856 | 1.50 | DP1459 | DPSS1459 |
| 3/4 | 3.8 | 0.937 | 0.375 | 0.856 | 1.50 | DP1460 | DPSS1460 |
| 3/4 | 3.9 | 0.937 | 0.375 | 0.856 | 1.50 | DP1461 | DPSS1461 |
| 3/4 | 4.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1462 | DPSS1462 |
| 3/4 | 4.1 | 0.937 | 0.375 | 0.856 | 1.50 | DP1463 | DPSS1463 |
| 3/4 | 4.2 | 0.937 | 0.375 | 0.856 | 1.50 | DP1464 | DPSS1464 |
| 3/4 | 4.3 | 0.937 | 0.375 | 0.856 | 1.50 | DP1465 | DPSS1465 |
| 3/4 | 4.4 | 0.937 | 0.375 | 0.856 | 1.50 | DP1466 | DPSS1466 |
| 3/4 | 4.5 | 0.937 | 0.375 | 0.856 | 1.50 | DP1467 | DPSS1467 |
| 3/4 | 4.6 | 0.937 | 0.375 | 0.856 | 1.50 | DP1468 | DPSS1468 |
| 3/4 | 4.7 | 0.937 | 0.375 | 0.856 | 1.50 | DP1469 | DPSS1469 |
| 3/4 | 4.8 | 0.937 | 0.375 | 0.856 | 1.50 | DP1470 | DPSS1470 |
| 3/4 | 4.9 | 0.937 | 0.375 | 0.856 | 1.50 | DP1471 | DPSS1471 |
| 3/4 | 5.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1472 | DPSS1472 |
| 3/4 | 5.1 | 0.937 | 0.375 | 0.856 | 1.50 | DP1473 | DPSS1473 |
| 3/4 | 5.2 | 0.937 | 0.375 | 0.856 | 1.50 | DP1474 | DPSS1474 |
| 3/4 | 5.3 | 0.937 | 0.375 | 0.856 | 1.50 | DP1475 | DPSS1475 |
| 3/4 | 5.4 | 0.937 | 0.375 | 0.856 | 1.50 | DP1476 | DPSS1476 |
| 3/4 | 5.5 | 0.937 | 0.375 | 0.856 | 1.50 | DP1477 | DPSS1477 |
| 3/4 | 5.6 | 0.937 | 0.375 | 0.856 | 1.50 | DP1478 | DPSS1478 |
| 3/4 | 5.7 | 0.937 | 0.375 | 0.856 | 1.50 | DP1479 | DPSS1479 |
| 3/4 | 5.8 | 0.937 | 0.375 | 0.856 | 1.50 | DP1480 | DPSS1480 |
| 3/4 | 5.9 | 0.937 | 0.375 | 0.856 | 1.50 | DP1481 | DPSS1481 |
| 3/4 | 6.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1482 | DPSS1482 |
| 3/4 | 6.1 | 0.937 | 0.375 | 0.856 | 1.50 | DP1483 | DPSS1483 |
| 3/4 | 6.2 | 0.937 | 0.375 | 0.856 | 1.50 | DP1484 | DPSS1484 |
| 3/4 | 6.3 | 0.937 | 0.375 | 0.856 | 1.50 | DP1485 | DPSS1485 |
| 3/4 | 6.4 | 0.937 | 0.375 | 0.856 | 1.50 | DP1486 | DPSS1486 |
| 3/4 | 6.5 | 0.937 | 0.375 | 0.856 | 1.50 | DP1487 | DPSS1487 |
| 3/4 | 6.6 | 0.937 | 0.375 | 0.856 | 1.50 | DP1488 | DPSS1488 |
| 3/4 | 6.7 | 0.937 | 0.375 | 0.856 | 1.50 | DP1489 | DPSS1489 |
| 3/4 | 6.8 | 0.937 | 0.375 | 0.856 | 1.50 | DP1490 | DPSS1490 |
| 3/4 | 6.9 | 0.937 | 0.375 | 0.856 | 1.50 | DP1491 | DPSS1491 |
| 3/4 | 7.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1492 | DPSS1492 |
| 3/4 | 7.1 | 0.937 | 0.375 | 0.856 | 1.50 | DP1493 | DPSS1493 |
| 3/4 | 7.2 | 0.937 | 0.375 | 0.856 | 1.50 | DP1494 | DPSS1494 |
| 3/4 | 7.3 | 0.937 | 0.375 | 0.856 | 1.50 | DP1495 | DPSS1495 |
| 3/4 | 7.4 | 0.937 | 0.375 | 0.856 | 1.50 | DP1496 | DPSS1496 |
| 3/4 | 7.5 | 0.937 | 0.375 | 0.856 | 1.50 | DP1497 | DPSS1497 |
| 3/4 | 7.6 | 0.937 | 0.375 | 0.856 | 1.50 | DP1498 | DPSS1498 |
| 3/4 | 7.7 | 0.937 | 0.375 | 0.856 | 1.50 | DP1499 | DPSS1499 |
| 3/4 | 7.8 | 0.937 | 0.375 | 0.856 | 1.50 | DP1500 | DPSS1500 |
| 3/4 | 7.9 | 0.937 | 0.375 | 0.856 | 1.50 | DP1501 | DPSS1501 |
| 3/4 | 8.0 | 0.937 | 0.375 | 0.856 | 1.50 | DP1502 | DPSS1502 |
| 7/8 | 1.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1503 | DPSS1503 |
| 7/8 | 1.1 | 1.000 | 0.500 | 0.996 | 1.50 | DP1504 | DPSS1504 |
| 7/8 | 1.2 | 1.000 | 0.500 | 0.996 | 1.50 | DP1505 | DPSS1505 |
| 7/8 | 1.3 | 1.000 | 0.500 | 0.996 | 1.50 | DP1506 | DPSS1506 |
| 7/8 | 1.4 | 1.000 | 0.500 | 0.996 | 1.50 | DP1507 | DPSS1507 |
| 7/8 | 1.5 | 1.000 | 0.500 | 0.996 | 1.50 | DP1508 | DPSS1508 |
| 7/8 | 1.6 | 1.000 | 0.500 | 0.996 | 1.50 | DP1509 | DPSS1509 |
| 7/8 | 1.7 | 1.000 | 0.500 | 0.996 | 1.50 | DP1510 | DPSS1510 |
| 7/8 | 1.8 | 1.000 | 0.500 | 0.996 | 1.50 | DP1511 | DPSS1511 |
| 7/8 | 1.9 | 1.000 | 0.500 | 0.996 | 1.50 | DP1512 | DPSS1512 |
| 7/8 | 2.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1513 | DPSS1513 |
| 7/8 | 2.1 | 1.000 | 0.500 | 0.996 | 1.50 | DP1514 | DPSS1514 |
| 7/8 | 2.2 | 1.000 | 0.500 | 0.996 | 1.50 | DP1515 | DPSS1515 |
| 7/8 | 2.3 | 1.000 | 0.500 | 0.996 | 1.50 | DP1516 | DPSS1516 |
| 7/8 | 2.4 | 1.000 | 0.500 | 0.996 | 1.50 | DP1517 | DPSS1517 |
| 7/8 | 2.5 | 1.000 | 0.500 | 0.996 | 1.50 | DP1518 | DPSS1518 |
| 7/8 | 2.6 | 1.000 | 0.500 | 0.996 | 1.50 | DP1519 | DPSS1519 |
| 7/8 | 2.7 | 1.000 | 0.500 | 0.996 | 1.50 | DP1520 | DPSS1520 |
| 7/8 | 2.8 | 1.000 | 0.500 | 0.996 | 1.50 | DP1521 | DPSS1521 |
| 7/8 | 2.9 | 1.000 | 0.500 | 0.996 | 1.50 | DP1522 | DPSS1522 |
| 7/8 | 3.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1523 | DPSS1523 |
| 7/8 | 3.1 | 1.000 | 0.500 | 0.996 | 1.50 | DP1524 | DPSS1524 |
| 7/8 | 3.2 | 1.000 | 0.500 | 0.996 | 1.50 | DP1525 | DPSS1525 |
| 7/8 | 3.3 | 1.000 | 0.500 | 0.996 | 1.50 | DP1526 | DPSS1526 |
| 7/8 | 3.4 | 1.000 | 0.500 | 0.996 | 1.50 | DP1527 | DPSS1527 |
| 7/8 | 3.5 | 1.000 | 0.500 | 0.996 | 1.50 | DP1528 | DPSS1528 |
| 7/8 | 3.6 | 1.000 | 0.500 | 0.996 | 1.50 | DP1529 | DPSS1529 |
| 7/8 | 3.7 | 1.000 | 0.500 | 0.996 | 1.50 | DP1530 | DPSS1530 |
| 7/8 | 3.8 | 1.000 | 0.500 | 0.996 | 1.50 | DP1531 | DPSS1531 |
| 7/8 | 3.9 | 1.000 | 0.500 | 0.996 | 1.50 | DP1532 | DPSS1532 |
| 7/8 | 4.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1533 | DPSS1533 |
| 7/8 | 4.1 | 1.000 | 0.500 | 0.996 | 1.50 | DP1534 | DPSS1534 |
| 7/8 | 4.2 | 1.000 | 0.500 | 0.996 | 1.50 | DP1535 | DPSS1535 |
| 7/8 | 4.3 | 1.000 | 0.500 | 0.996 | 1.50 | DP1536 | DPSS1536 |
| 7/8 | 4.4 | 1.000 | 0.500 | 0.996 | 1.50 | DP1537 | DPSS1537 |
| 7/8 | 4.5 | 1.000 | 0.500 | 0.996 | 1.50 | DP1538 | DPSS1538 |
| 7/8 | 4.6 | 1.000 | 0.500 | 0.996 | 1.50 | DP1539 | DPSS1539 |
| 7/8 | 4.7 | 1.000 | 0.500 | 0.996 | 1.50 | DP1540 | DPSS1540 |
| 7/8 | 4.8 | 1.000 | 0.500 | 0.996 | 1.50 | DP1541 | DPSS1541 |
| 7/8 | 4.9 | 1.000 | 0.500 | 0.996 | 1.50 | DP1542 | DPSS1542 |
| 7/8 | 5.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1543 | DPSS1543 |
| 7/8 | 5.1 | 1.000 | 0.500 | 0.996 | 1.50 | DP1544 | DPSS1544 |
| 7/8 | 5.2 | 1.000 | 0.500 | 0.996 | 1.50 | DP1545 | DPSS1545 |
| 7/8 | 5.3 | 1.000 | 0.500 | 0.996 | 1.50 | DP1546 | DPSS1546 |
| 7/8 | 5.4 | 1.000 | 0.500 | 0.996 | 1.50 | DP1547 | DPSS1547 |
| 7/8 | 5.5 | 1.000 | 0.500 | 0.996 | 1.50 | DP1548 | DPSS1548 |
| 7/8 | 5.6 | 1.000 | 0.500 | 0.996 | 1.50 | DP1549 | DPSS1549 |
| 7/8 | 5.7 | 1.000 | 0.500 | 0.996 | 1.50 | DP1550 | DPSS1550 |
| 7/8 | 5.8 | 1.000 | 0.500 | 0.996 | 1.50 | DP1551 | DPSS1551 |
| 7/8 | 5.9 | 1.000 | 0.500 | 0.996 | 1.50 | DP1552 | DPSS1552 |
| 7/8 | 6.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1553 | DPSS1553 |
| 7/8 | 6.1 | 1.000 | 0.500 | 0.996 | 1.50 | DP1554 | DPSS1554 |
| 7/8 | 6.2 | 1.000 | 0.500 | 0.996 | 1.50 | DP1555 | DPSS1555 |
| 7/8 | 6.3 | 1.000 | 0.500 | 0.996 | 1.50 | DP1556 | DPSS1556 |
| 7/8 | 6.4 | 1.000 | 0.500 | 0.996 | 1.50 | DP1557 | DPSS1557 |
| 7/8 | 6.5 | 1.000 | 0.500 | 0.996 | 1.50 | DP1558 | DPSS1558 |
| 7/8 | 6.6 | 1.000 | 0.500 | 0.996 | 1.50 | DP1559 | DPSS1559 |
| 7/8 | 6.7 | 1.000 | 0.500 | 0.996 | 1.50 | DP1560 | DPSS1560 |
| 7/8 | 6.8 | 1.000 | 0.500 | 0.996 | 1.50 | DP1561 | DPSS1561 |
| 7/8 | 6.9 | 1.000 | 0.500 | 0.996 | 1.50 | DP1562 | DPSS1562 |
| 7/8 | 7.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1563 | DPSS1563 |
| 7/8 | 7.1 | 1.000 | 0.500 | 0.996 | 1.50 | DP1564 | DPSS1564 |
| 7/8 | 7.2 | 1.000 | 0.500 | 0.996 | 1.50 | DP1565 | DPSS1565 |
| 7/8 | 7.3 | 1.000 | 0.500 | 0.996 | 1.50 | DP1566 | DPSS1566 |
| 7/8 | 7.4 | 1.000 | 0.500 | 0.996 | 1.50 | DP1567 | DPSS1567 |
| 7/8 | 7.5 | 1.000 | 0.500 | 0.996 | 1.50 | DP1568 | DPSS1568 |
| 7/8 | 7.6 | 1.000 | 0.500 | 0.996 | 1.50 | DP1569 | DPSS1569 |
| 7/8 | 7.7 | 1.000 | 0.500 | 0.996 | 1.50 | DP1570 | DPSS1570 |
| 7/8 | 7.8 | 1.000 | 0.500 | 0.996 | 1.50 | DP1571 | DPSS1571 |
| 7/8 | 7.9 | 1.000 | 0.500 | 0.996 | 1.50 | DP1572 | DPSS1572 |
| 7/8 | 8.0 | 1.000 | 0.500 | 0.996 | 1.50 | DP1573 | DPSS1573 |
| 1 | 1.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1574 | DPSS1574 |
| 1 | 1.1 | 1.250 | 0.500 | 1.140 | 1.50 | DP1575 | DPSS1575 |
| 1 | 1.2 | 1.250 | 0.500 | 1.140 | 1.50 | DP1576 | DPSS1576 |
| 1 | 1.3 | 1.250 | 0.500 | 1.140 | 1.50 | DP1577 | DPSS1577 |
| 1 | 1.4 | 1.250 | 0.500 | 1.140 | 1.50 | DP1578 | DPSS1578 |
| 1 | 1.5 | 1.250 | 0.500 | 1.140 | 1.50 | DP1579 | DPSS1579 |
| 1 | 1.6 | 1.250 | 0.500 | 1.140 | 1.50 | DP1580 | DPSS1580 |
| 1 | 1.7 | 1.250 | 0.500 | 1.140 | 1.50 | DP1581 | DPSS1581 |
| 1 | 1.8 | 1.250 | 0.500 | 1.140 | 1.50 | DP1582 | DPSS1582 |
| 1 | 1.9 | 1.250 | 0.500 | 1.140 | 1.50 | DP1583 | DPSS1583 |
| 1 | 2.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1584 | DPSS1584 |
| 1 | 2.1 | 1.250 | 0.500 | 1.140 | 1.50 | DP1585 | DPSS1585 |
| 1 | 2.2 | 1.250 | 0.500 | 1.140 | 1.50 | DP1586 | DPSS1586 |
| 1 | 2.3 | 1.250 | 0.500 | 1.140 | 1.50 | DP1587 | DPSS1587 |
| 1 | 2.4 | 1.250 | 0.500 | 1.140 | 1.50 | DP1588 | DPSS1588 |
| 1 | 2.5 | 1.250 | 0.500 | 1.140 | 1.50 | DP1589 | DPSS1589 |
| 1 | 2.6 | 1.250 | 0.500 | 1.140 | 1.50 | DP1590 | DPSS1590 |
| 1 | 2.7 | 1.250 | 0.500 | 1.140 | 1.50 | DP1591 | DPSS1591 |
| 1 | 2.8 | 1.250 | 0.500 | 1.140 | 1.50 | DP1592 | DPSS1592 |
| 1 | 2.9 | 1.250 | 0.500 | 1.140 | 1.50 | DP1593 | DPSS1593 |
| 1 | 3.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1594 | DPSS1594 |
| 1 | 3.1 | 1.250 | 0.500 | 1.140 | 1.50 | DP1595 | DPSS1595 |
| 1 | 3.2 | 1.250 | 0.500 | 1.140 | 1.50 | DP1596 | DPSS1596 |
| 1 | 3.3 | 1.250 | 0.500 | 1.140 | 1.50 | DP1597 | DPSS1597 |
| 1 | 3.4 | 1.250 | 0.500 | 1.140 | 1.50 | DP1598 | DPSS1598 |
| 1 | 3.5 | 1.250 | 0.500 | 1.140 | 1.50 | DP1599 | DPSS1599 |
| 1 | 3.6 | 1.250 | 0.500 | 1.140 | 1.50 | DP1600 | DPSS1600 |
| 1 | 3.7 | 1.250 | 0.500 | 1.140 | 1.50 | DP1601 | DPSS1601 |
| 1 | 3.8 | 1.250 | 0.500 | 1.140 | 1.50 | DP1602 | DPSS1602 |
| 1 | 3.9 | 1.250 | 0.500 | 1.140 | 1.50 | DP1603 | DPSS1603 |
| 1 | 4.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1604 | DPSS1604 |
| 1 | 4.1 | 1.250 | 0.500 | 1.140 | 1.50 | DP1605 | DPSS1605 |
| 1 | 4.2 | 1.250 | 0.500 | 1.140 | 1.50 | DP1606 | DPSS1606 |
| 1 | 4.3 | 1.250 | 0.500 | 1.140 | 1.50 | DP1607 | DPSS1607 |
| 1 | 4.4 | 1.250 | 0.500 | 1.140 | 1.50 | DP1608 | DPSS1608 |
| 1 | 4.5 | 1.250 | 0.500 | 1.140 | 1.50 | DP1609 | DPSS1609 |
| 1 | 4.6 | 1.250 | 0.500 | 1.140 | 1.50 | DP1610 | DPSS1610 |
| 1 | 4.7 | 1.250 | 0.500 | 1.140 | 1.50 | DP1611 | DPSS1611 |
| 1 | 4.8 | 1.250 | 0.500 | 1.140 | 1.50 | DP1612 | DPSS1612 |
| 1 | 4.9 | 1.250 | 0.500 | 1.140 | 1.50 | DP1613 | DPSS1613 |
| 1 | 5.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1614 | DPSS1614 |
| 1 | 5.1 | 1.250 | 0.500 | 1.140 | 1.50 | DP1615 | DPSS1615 |
| 1 | 5.2 | 1.250 | 0.500 | 1.140 | 1.50 | DP1616 | DPSS1616 |
| 1 | 5.3 | 1.250 | 0.500 | 1.140 | 1.50 | DP1617 | DPSS1617 |
| 1 | 5.4 | 1.250 | 0.500 | 1.140 | 1.50 | DP1618 | DPSS1618 |
| 1 | 5.5 | 1.250 | 0.500 | 1.140 | 1.50 | DP1619 | DPSS1619 |
| 1 | 5.6 | 1.250 | 0.500 | 1.140 | 1.50 | DP1620 | DPSS1620 |
| 1 | 5.7 | 1.250 | 0.500 | 1.140 | 1.50 | DP1621 | DPSS1621 |
| 1 | 5.8 | 1.250 | 0.500 | 1.140 | 1.50 | DP1622 | DPSS1622 |
| 1 | 5.9 | 1.250 | 0.500 | 1.140 | 1.50 | DP1623 | DPSS1623 |
| 1 | 6.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1624 | DPSS1624 |
| 1 | 6.1 | 1.250 | 0.500 | 1.140 | 1.50 | DP1625 | DPSS1625 |
| 1 | 6.2 | 1.250 | 0.500 | 1.140 | 1.50 | DP1626 | DPSS1626 |
| 1 | 6.3 | 1.250 | 0.500 | 1.140 | 1.50 | DP1627 | DPSS1627 |
| 1 | 6.4 | 1.250 | 0.500 | 1.140 | 1.50 | DP1628 | DPSS1628 |
| 1 | 6.5 | 1.250 | 0.500 | 1.140 | 1.50 | DP1629 | DPSS1629 |
| 1 | 6.6 | 1.250 | 0.500 | 1.140 | 1.50 | DP1630 | DPSS1630 |
| 1 | 6.7 | 1.250 | 0.500 | 1.140 | 1.50 | DP1631 | DPSS1631 |
| 1 | 6.8 | 1.250 | 0.500 | 1.140 | 1.50 | DP1632 | DPSS1632 |
| 1 | 6.9 | 1.250 | 0.500 | 1.140 | 1.50 | DP1633 | DPSS1633 |
| 1 | 7.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1634 | DPSS1634 |
| 1 | 7.1 | 1.250 | 0.500 | 1.140 | 1.50 | DP1635 | DPSS1635 |
| 1 | 7.2 | 1.250 | 0.500 | 1.140 | 1.50 | DP1636 | DPSS1636 |
| 1 | 7.3 | 1.250 | 0.500 | 1.140 | 1.50 | DP1637 | DPSS1637 |
| 1 | 7.4 | 1.250 | 0.500 | 1.140 | 1.50 | DP1638 | DPSS1638 |
| 1 | 7.5 | 1.250 | 0.500 | 1.140 | 1.50 | DP1639 | DPSS1639 |
| 1 | 7.6 | 1.250 | 0.500 | 1.140 | 1.50 | DP1640 | DPSS1640 |
| 1 | 7.7 | 1.250 | 0.500 | 1.140 | 1.50 | DP1641 | DPSS1641 |
| 1 | 7.8 | 1.250 | 0.500 | 1.140 | 1.50 | DP1642 | DPSS1642 |
| 1 | 7.9 | 1.250 | 0.500 | 1.140 | 1.50 | DP1643 | DPSS1643 |
| 1 | 8.0 | 1.250 | 0.500 | 1.140 | 1.50 | DP1644 | DPSS1644 |
