Detent Pins - Ball & T-Handle - In Stock Selection

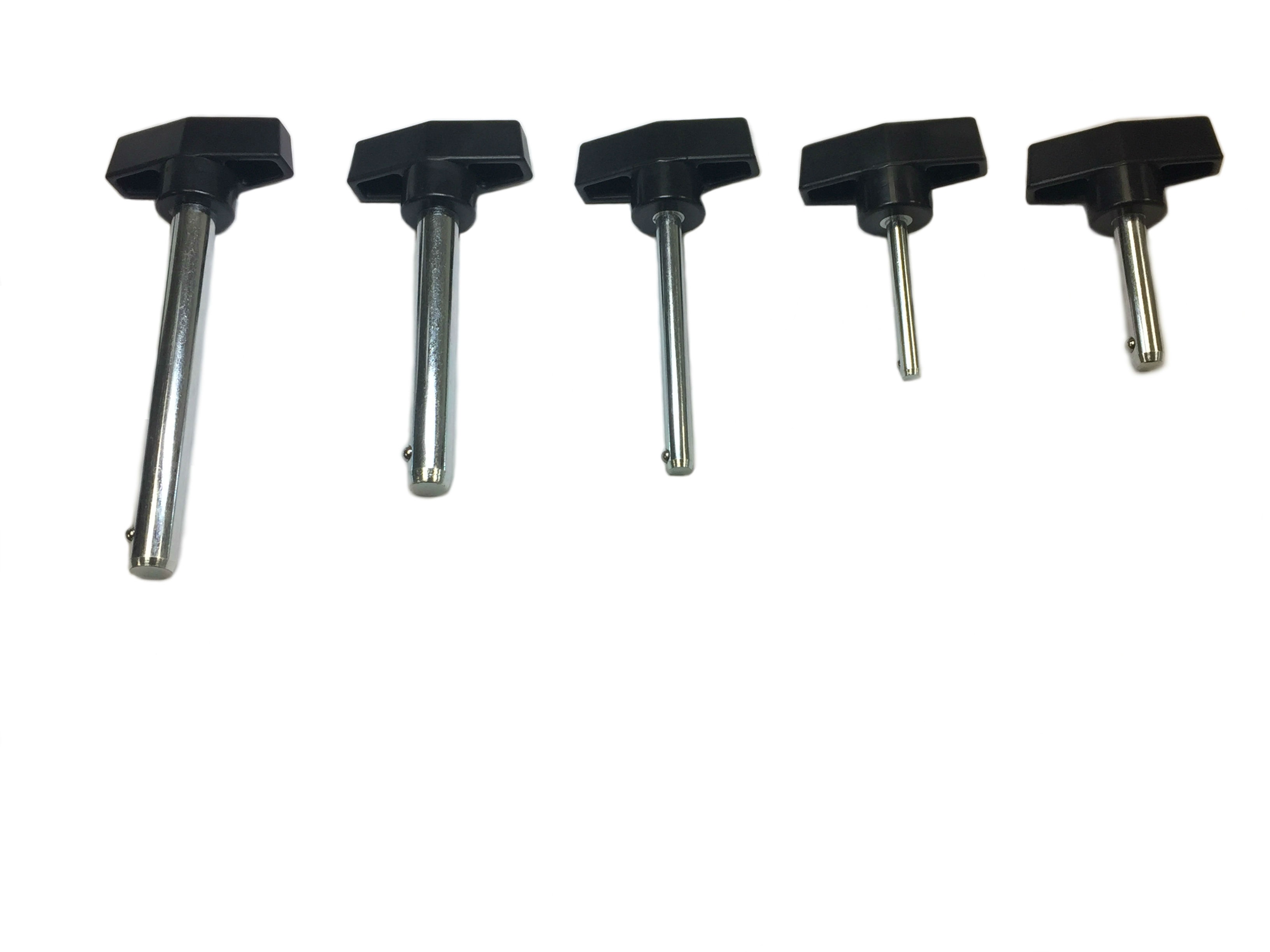

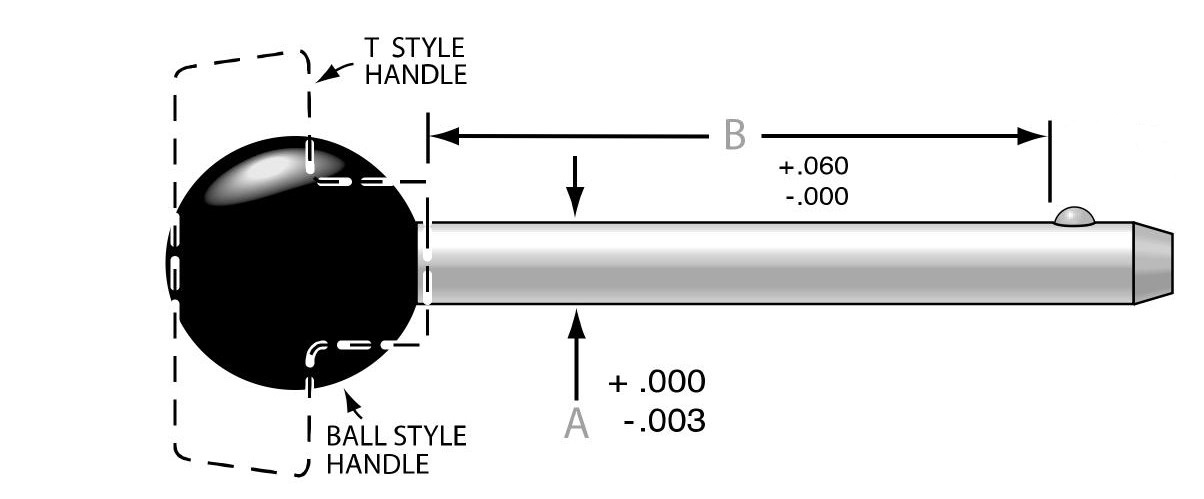

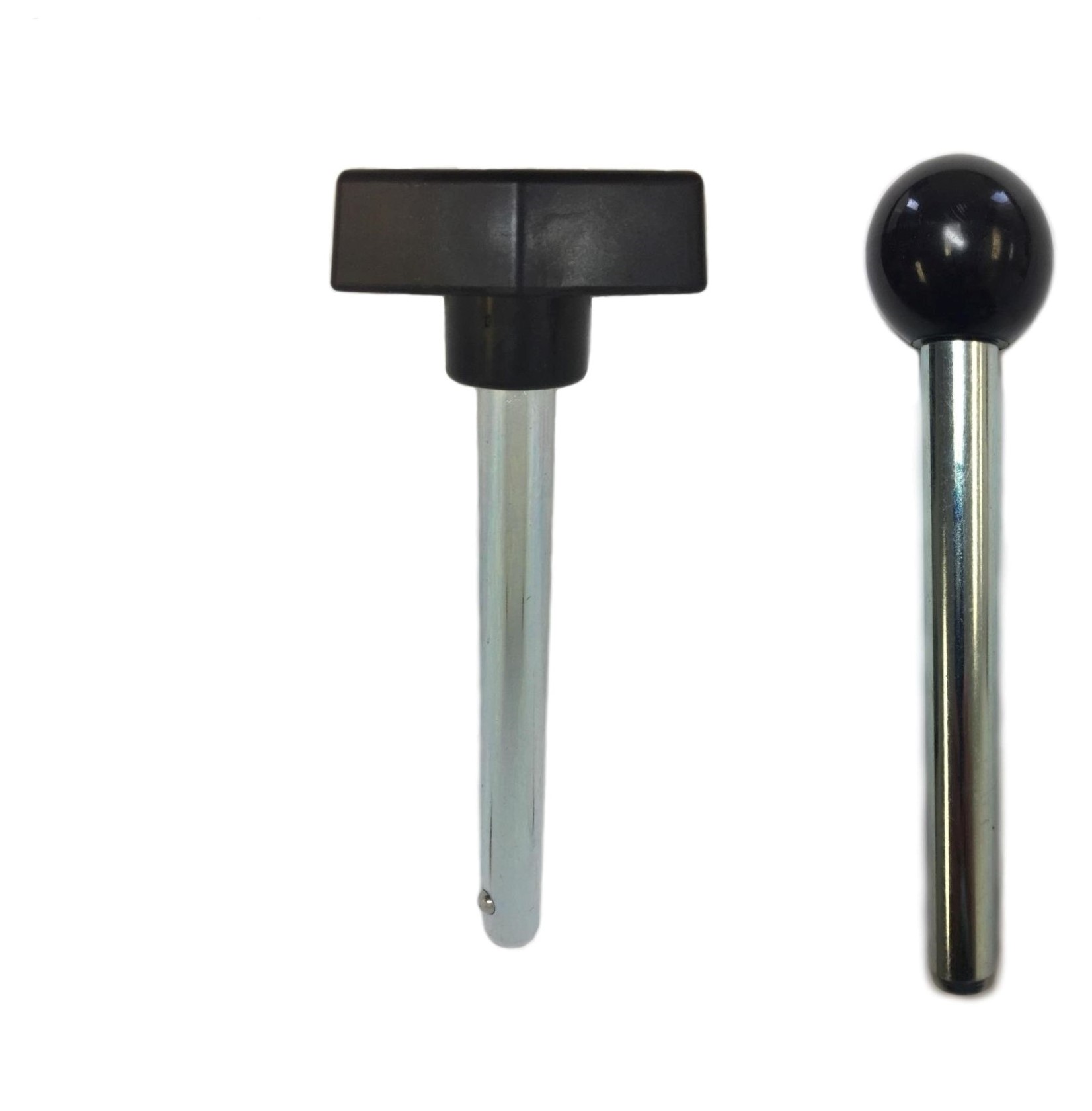

Securely aligning and adjoining objects is what these ball and t-handle detent pins from JBF National are designed and tested to do. The high quality spring loaded ball bearings these detent pins feature prevent accidental disengagement. Variety of grip lengths and pin diameters available. Please see component diagram below.
| P/N | Dia. (In.) (A) | Usable Length (In.) (B) | Knob Style |
|---|---|---|---|
| TQRP-1000 | 3/8 | 1-1/2 | T |
| TQRP-1001 | 1/4 | 2 | T |
| TQRP-1002 | 3/8 | 2 | T |
| TQRP-1003 | 1/2 | 3 | T |
| TQRP-1004 | 1/4 | 1-1/4 | T |
| TQRP-1005 | 5/16 | 3 | T |
| TQRP-1006 | 1/4 | 2-1/4 | T |
| TQRP-1007 | 1/4 | 2-3/4 | T |
| TQRP-1008 | 1/2 | 4 | T |
| TQRP-1009 | 3/8 | 3 | T |
| TQRP-1010 | 1/4 | 4 | T |
| TQRP-1011 | 1/4 | 3 | T |
| TQRP-1012 | 1/4 | 1-3/4 | T |
| BQRP-2000 | 1/4 | 3-1/4 | Ball |
| BQRP-2001 | 1/4 | 4-1/4 | Ball |
| BQRP-2002 | 1/4 | 3-1/4 | T |
| BQRP-2003 | 3/8 | 2-1/2 | Ball |
| BQRP-2004 | 3/8 | 3-1/2 | Ball |
| BQRP-2005 | 1/2 | 3-3/4 | Ball |
| BQRP-2006 | 5/16 | 3-1/4 | Ball |
