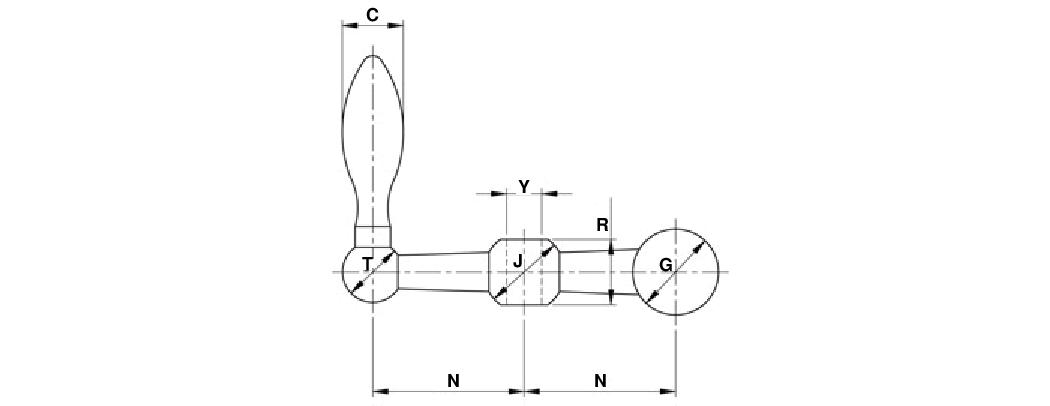

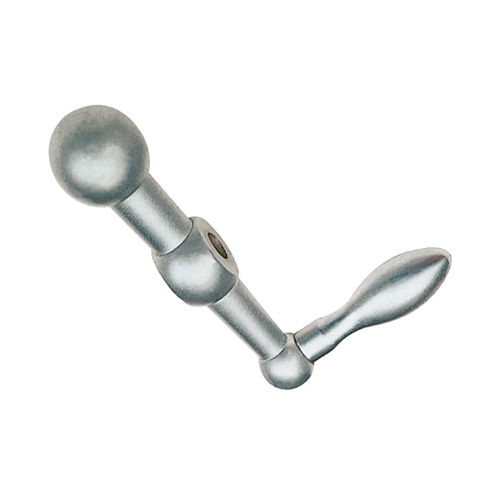

This tri-ball crank handle from JBF National is manufactured from the highest quality matt silver finished steel, and has been designed and tested for ultimate reliability and durability. The tri-ball design provides appropriate counterbalance which allows for optimum control and the highest adjustment accuracy. Direct axle mount with various center hole bore sizes available. Please see component diagram below.
JBF National P/N | N | Y | T | J | G | R | C |
---|---|---|---|---|---|---|---|
1CH-113 | 25 | 7 | 13 | 16 | 18 | 13 | 10 |
1CH-114 | 28 | 8 | 15 | 19 | 20 | 17 | 13 |
1CH-115 | 34 | 8 | 16 | 20 | 22 | 17 | 14 |
1CH-116 | 41 | 10 | 18 | 23 | 25 | 19.5 | 16 |
1CH-117 | 50 | 12 | 20 | 26 | 28 | 21.5 | 18 |
1CH-118 | 63 | 12 | 21 | 36 | 38 | 22 | 20 |
1CH-119 | 80 | 15 | 25 | 35 | 38 | 25 | 25 |
