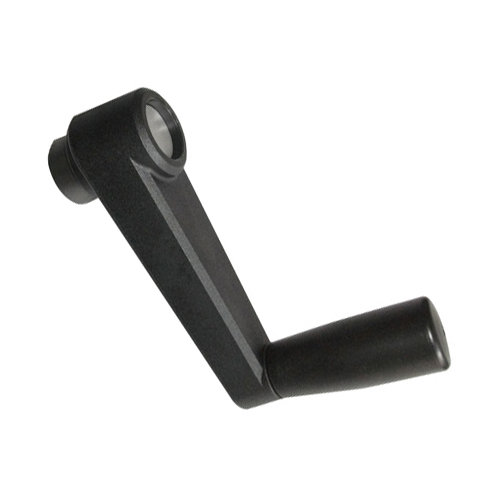

Plastic Crank Handle

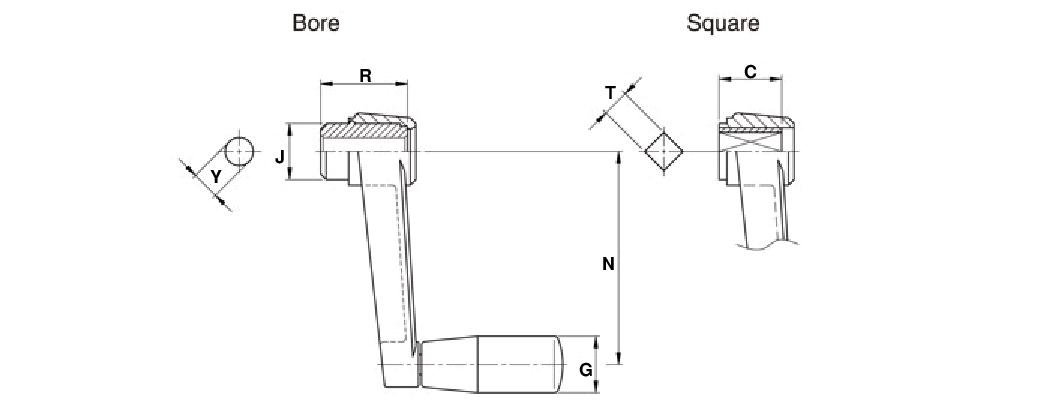

This plastic crank handle from JBF National is manufactured form the highest quality steel spindle with plastic handle and crank. This crank handle comes with either a round bore or square mounting hole. Please see component diagram below.
| JBF P/N Bore | JBF P/N Square Bore | N | Y | T | J | G | R | C |
|---|---|---|---|---|---|---|---|---|
| 1CH-100B | 1CH-100S | 50 | 6 | 6 | 16 | 14 | 28 | 18 |
| 1CH-101B | 1CH-101S | 64 | 8 | 8 | 18 | 18 | 29 | 19 |
| 1CH-102B | 1CH-102S | 80 | 10 | 10 | 22 | 21 | 32 | 22 |
| 1CH-103B | 1CH-103S | 100 | 12 | 12 | 24 | 23 | 37 | 27 |
| 1CH-104B | 1CH-104S | 130 | 14 | 14 | 28 | 26 | 44 | 30 |
| 1CH-105B | 1CH-105S | 160 | 16 | 17 | 34 | 28 | 49 | 34 |
