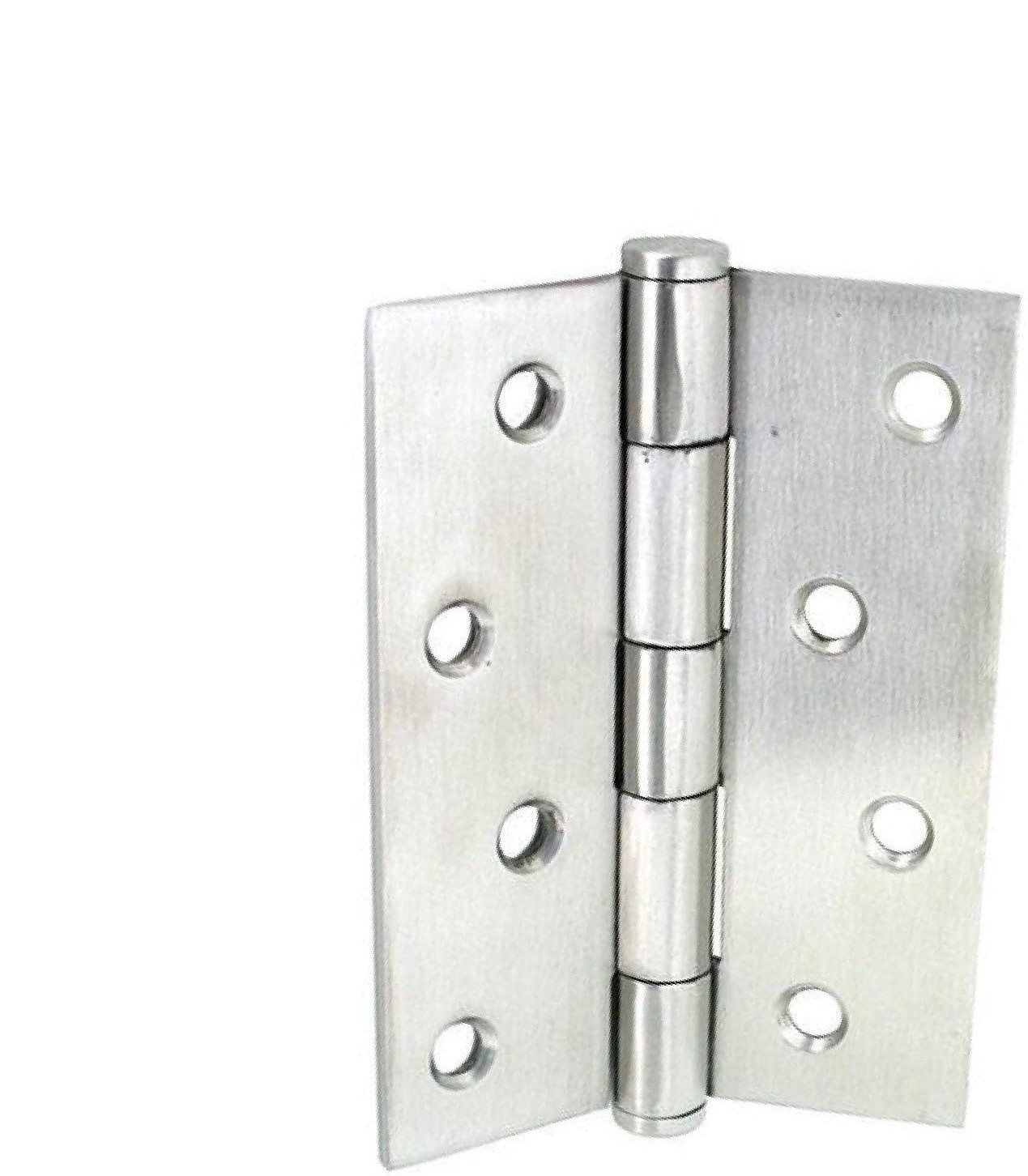

Steel Butt Hinges
These butt hinges from JBF National are made from the highest quality steel, and have been designed and tested for maximum durability and reliability. Contact a JBF National sales engineer today for more information.
| JBF National Part Number | Gauge | Width Open | Length | Pin Dia. | No. of Joints |
|---|---|---|---|---|---|
| 1BSH-1000 | .060 | 1-1/2 | 1-1/2 | .125 | 3 |
| 1BSH-1001 | .060 | 2 | 2 | .125 | 5 |
| 1BSH-1002 | .060 | 2-1/2 | 2-1/2 | .125 | 5 |
| 2BSH-1003 | .075 | 2 | 2 | .125 | 5 |
| 2BSH-1004 | .075 | 2 | 2 | .187 | 5 |
| 2BSH-1005 | .075 | 2-1/2 | 2-1/2 | .187 | 5 |
| 2BSH-1006 | .075 | 3 | 3 | .187 | 5 |
| 3BSH-1007 | .090 | 3 | 3 | .187 | 5 |
| 3BSH-1008 | .090 | 3-1/2 | 3-1/2 | .187 | 5 |
| 4BSH-1009 | .105 | 2-1/2 | 2-1/2 | .187 | 5 |
| 5BSH-1010 | .120 | 2-1/2 | 2-1/2 | .250 | 5 |
| 5BSH-1011 | .120 | 3 | 3 | .250 | 5 |
| 5BSH-1012 | .120 | 4 | 4 | .250 | 5 |
| 6BSH-1013 | .150 | 3-1/2 | 3-1/2 | .312 | 5 |
| 7BSH-1014 | .165 | 4 | 4 | .312 | 5 |
| 8BSH-1015 | .187 | 4 | 4 | .375 | 4 |
| 8BSH-1016 | .187 | 5 | 5 | .375 | 5 |
| 8BSH-1017 | .187 | 6 | 6 | .375 | 6 |
| 9BSH-1018 | .250 | 4 | 4 | .625 | 3 |
| 9BSH-1019 | .250 | 5 | 5 | .625 | 4 |
| 9BSH-1020 | .250 | 6 | 6 | .625 | 4 |
| 10BSH-1021 | .375 | 6 | 6 | .625 | 4 |
| 10BSH-1022 | .375 | 8 | 8 | .625 | 4 |
| 1BSH-1023 | .060 | 1-1/2 | 2 | .125 | 5 |
| 1BSH-1024 | .060 | 1-1/2 | 2-1/2 | .125 | 5 |
| 1BSH-1025 | .060 | 2 | 2-1/2 | .125 | 5 |
| 2BSH-1026 | .075 | 2 | 2-1/2 | .187 | 5 |
| 2BSH-1027 | .075 | 2 | 3 | .187 | 5 |
| 3BSH-1028 | .090 | 2 | 3 | .187 | 5 |
| 3BSH-1029 | .090 | 2-1/2 | 3 | .187 | 5 |
| 4BSH-1030 | .120 | 2 | 2-1/2 | .250 | 5 |
| 4BSH-1031 | .120 | 2-1/2 | 3 | .250 | 5 |
| 4BSH-1032 | .120 | 2-1/2 | 3-1/2 | .250 | 5 |
| 4BSH-1033 | .120 | 3 | 3-1/2 | .250 | 5 |
| 4BSH-1034 | .120 | 3 | 4 | .250 | 5 |
| 4BSH-1035 | .120 | 3-1/2 | 4 | .250 | 5 |
| 5BSH-1036 | .150 | 2-1/2 | 3-1/2 | .312 | 5 |
| 5BSH-1037 | .150 | 3 | 3-1/2 | .312 | 5 |
| 6BSH-1038 | .165 | 3 | 4 | .312 | 5 |
| 6BSH-1039 | .165 | 3-1/2 | 4 | .312 | 5 |
| 7BSH-1040 | .187 | 4 | 5 | .375 | 5 |
| 7BSH-1041 | .187 | 3 | 6 | .375 | 6 |
| 7BSH-1042 | .187 | 4 | 6 | .375 | 6 |
| 7BSH-1043 | .187 | 5 | 6 | .375 | 6 |
| 7BSH-1044 | .187 | 5 | 8 | .375 | 8 |
| 7BSH-1045 | .187 | 6 | 8 | .375 | 8 |
| 8BSH-1046 | .203 | 4 | 5 | .500 | 5 |
| 8BSH-1047 | .203 | 5 | 6 | .500 | 6 |
| 9BSH-1048 | .250 | 4 | 5 | .625 | 4 |
| 9BSH-1049 | .250 | 5 | 6 | .625 | 4 |
| 10BSH-1050 | .375 | 6 | 8 | .625 | 4 |
| 10BSH-1051 | .375 | 6 | 10 | .625 | 5 |
