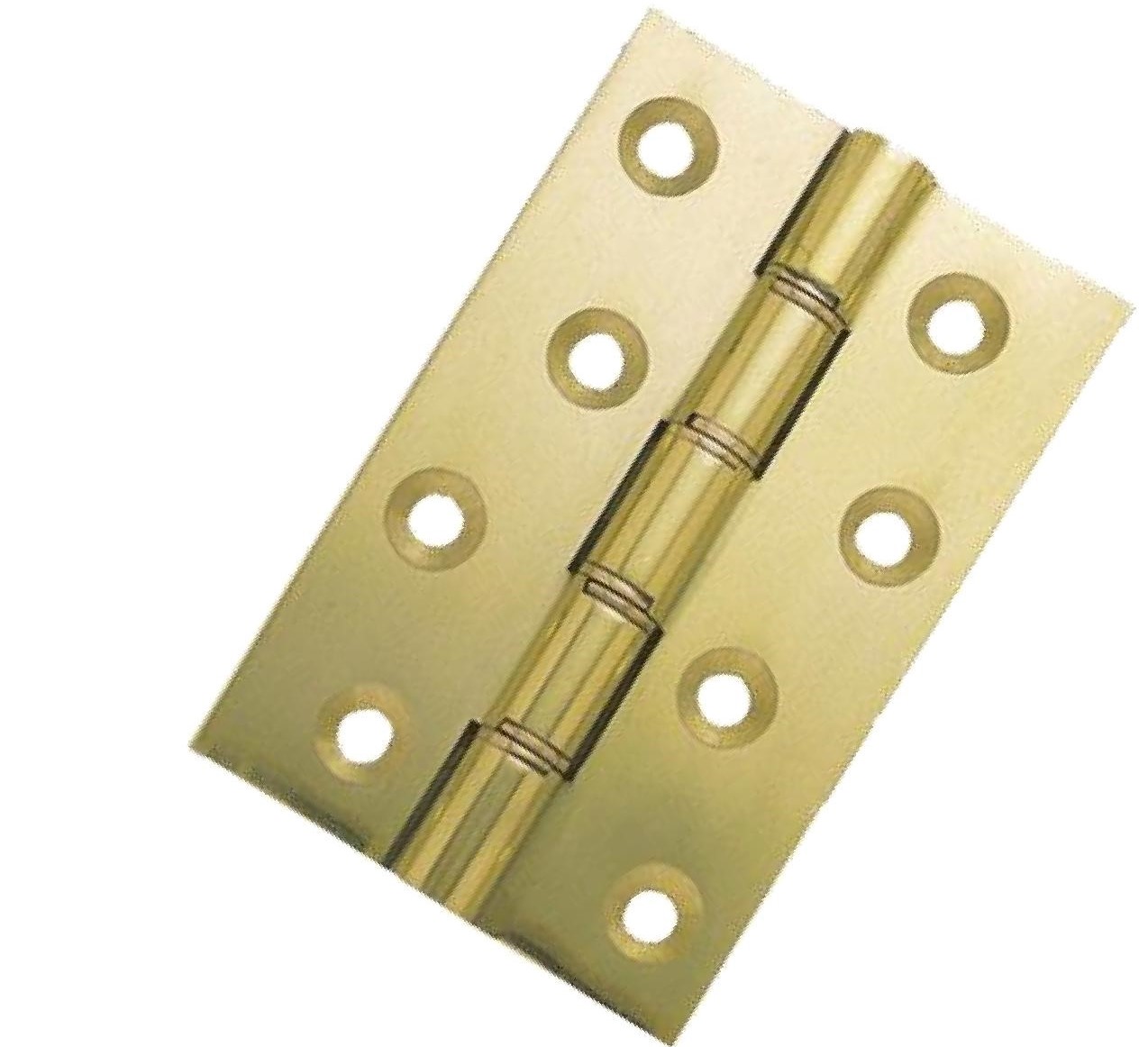

Brass Butt Hinges
These butt hinges from JBF National are made from the highest quality brass, and have been designed and tested for maximum durability and reliability. Contact a JBF National sales engineer today for more information.
| JBF National Part Number | Gauge | Width Open | Length | Pin Dia. | No. of Joints |
|---|---|---|---|---|---|
| 1BBH-1120 | .051 | 2-1/2 | 2-1/2 | .125 | 5 |
| 2BBH-1121 | .064 | 1-1/2 | 1-1/2 | .125 | 3 |
| 2BBH-1122 | .064 | 2 | 2 | .125 | 5 |
| 2BBH-1123 | .064 | 2-1/2 | 2-1/2 | .125 | 5 |
| 2BBH-1124 | .064 | 3 | 3 | .125 | 5 |
| 3BBH-1125 | .081 | 2-1/2 | 2-1/2 | .187 | 5 |
| 4BBH-1126 | .091 | 3 | 3 | .187 | 5 |
| 4BBH-1127 | .091 | 3-1/2 | 3-1/2 | .187 | 5 |
| 5BBH-1128 | .102 | 2-1/2 | 2-1/2 | .187 | 5 |
| 6BBH-1129 | .125 | 2-1/2 | 2-1/2 | .250 | 5 |
| 6BBH-1130 | .125 | 3 | 3 | .250 | 5 |
| 6BBH-1131 | .125 | 4 | 4 | .250 | 5 |
| 2BBH-1132 | .064 | 1-1/2 | 2 | .125 | 5 |
| 2BBH-1133 | .064 | 2 | 2-1/2 | .125 | 5 |
| 2BBH-1134 | .064 | 2 | 3 | .125 | 5 |
| 2BBH-1135 | .064 | 2-1/2 | 3 | .125 | 5 |
| 3BBH-1136 | .081 | 2 | 2-1/2 | .187 | 5 |
| 4BBH-1137 | .091 | 2 | 3 | .187 | 5 |
| 4BBH-1138 | .091 | 2-1/2 | 3 | .187 | 5 |
| 4BBH-1139 | .091 | 2-1/2 | 3-1/2 | .187 | 5 |
| 4BBH-1140 | .091 | 3 | 3-1/2 | .187 | 5 |
| 5BBH-1141 | .102 | 2 | 2-1/2 | .187 | 5 |
| 6BBH-1142 | .125 | 2 | 2-1/2 | .250 | 5 |
| 6BBH-1143 | .125 | 2 | 3 | .250 | 5 |
| 6BBH-1144 | .125 | 2-1/2 | 3 | .250 | 5 |
| 6BBH-1145 | .125 | 3 | 4 | .250 | 5 |
| 6BBH-1146 | .125 | 3-1/2 | 4 | .250 | 5 |
