Double Ended Press Fit Spring Plungers

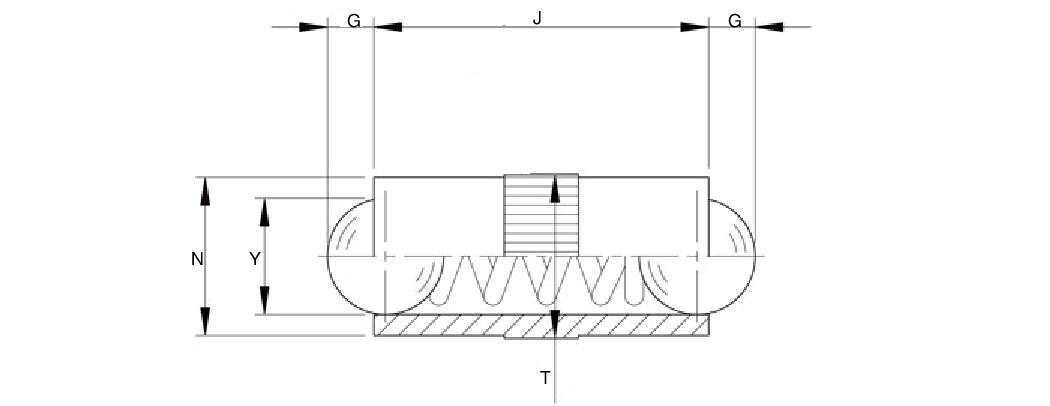

This double ended spring plunger from JBF National is manufactured from a high quality copper body and two stainless steel balls. Spring plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today for further information. Please see component diagram below.
| JBF P/N | N | Y | T | J | G |
|---|---|---|---|---|---|
| 1SP-100 | 3 | 2.5 | 3.1 | 7.3 | 0.8 |
| 1SP-101 | 4 | 3 | 4.1 | 9 | 0.9 |
| 1SP-102 | 5 | 4 | 5.1 | 10.8 | 1.2 |
| 1SP-103 | 7 | 6 | 7.2 | 14 | 2 |
| 1SP-104 | 8 | 6.5 | 8.3 | 18 | 2.1 |
