Ball Plungers - Stainless Steel

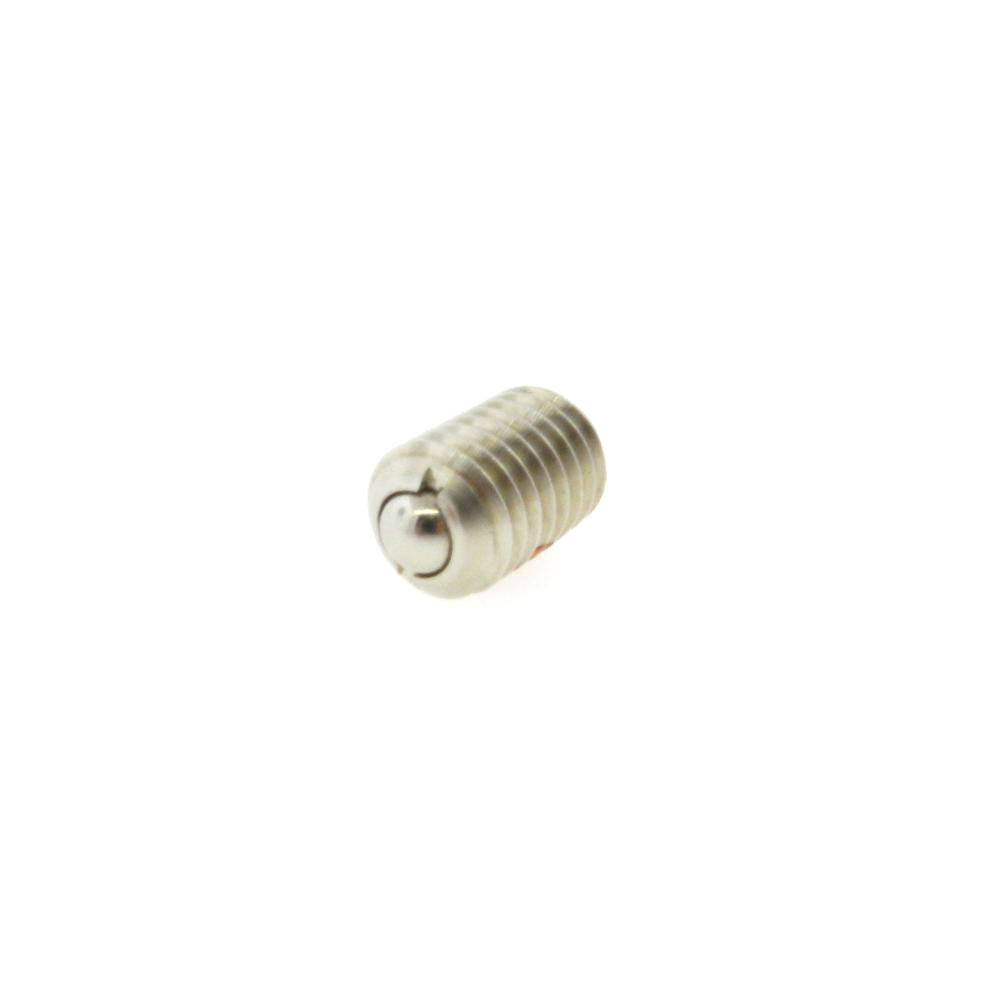

Stainless Steel Ball Plunger

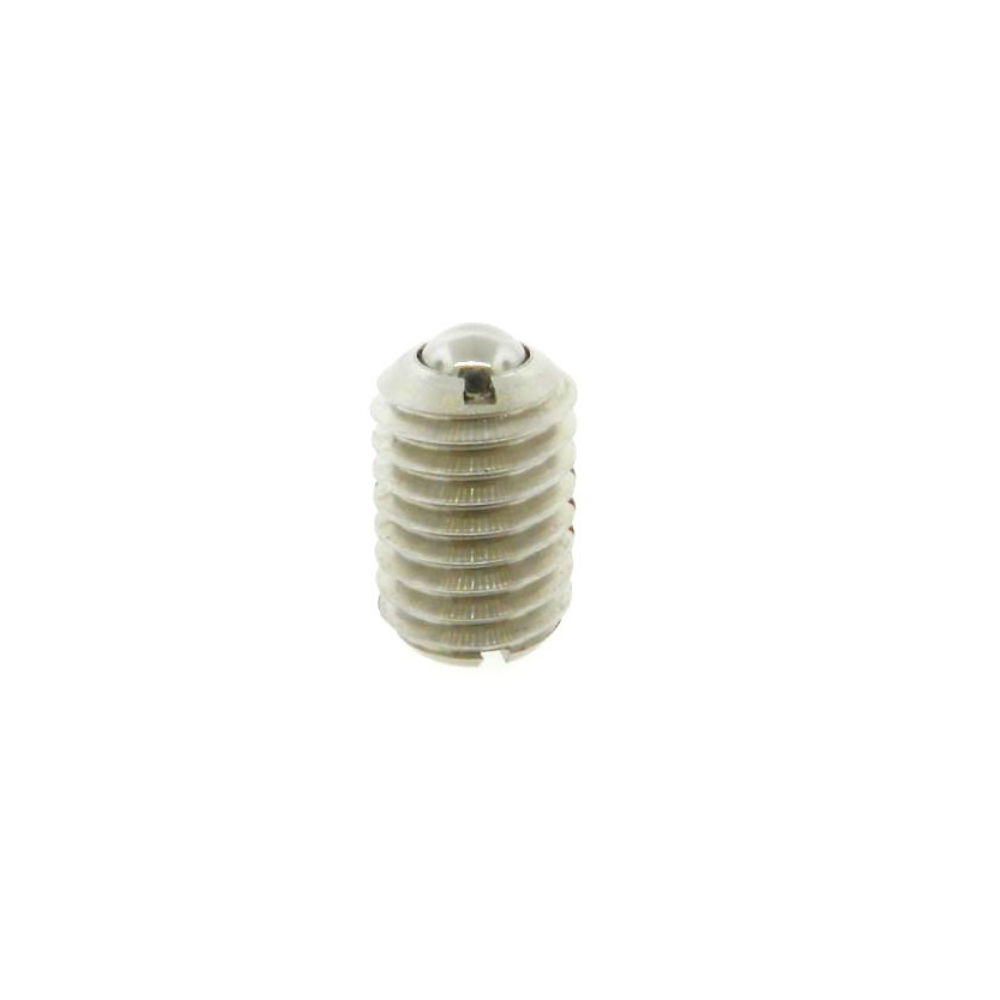

Stainless Steel Ball Plunger - Top View

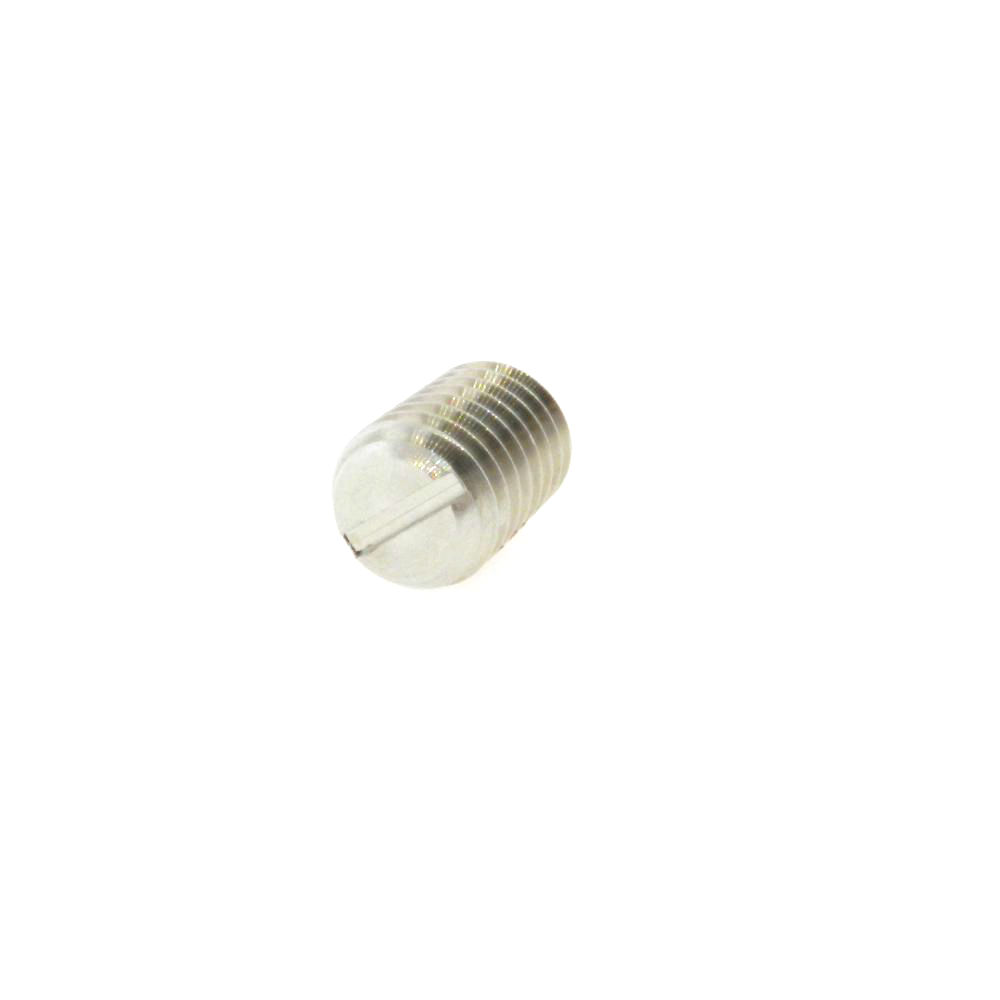

Stainless Steel Ball Plunger - Bottom View

JBF National’s stainless steel ball plungers make sure that all of your alignment and attachment needs are carried out with the utmost precision. This plunger features a screw driver slot for easy installation, and a stainless steel construction for maximum corrosion resistance. Except for thread sizes 4-48 through 8-36, an optional nylon threading patch is available. Ball plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today for further information. Add "P" to part number for nylon patch. Please see component diagram below.

JBF P/N - Stainless NoseJBF P/N - Nylon NoseThread (A)Body Length (B)Nose Length (C)Nose Dia (D)Start End Force (lbs)End End Force (lbs)
1BBPC-1000SS-31BBPC-1000SSN4-480.1870.0200.0620.1250.50
2BBPC-1001SS-32BBPC-1001SSN5-400.2500.0200.0620.2500.75
3BBPC-1002SS-33BBPC-1002SSN6-400.3120.0230.0780.5001.00
4BBPC-1003SS-34BBPC-1003SSN8-320.3440.0250.0940.5001.25
5BBPC-1004SS-35BBPC-1004SSN8-360.3440.0250.0940.5001.25
5BBPC-1005SS-35BBPC-1005SSN10-320.5130.0250.0941.5003.00
5BBPC-1006SS-35BBPC-1006SSN10-320.5130.0250.0940.5001.50
5BBPC-1007SS-35BBPC-1007SSN10-320.5130.0250.0942.0005.00
6BBPC-1008SS-36BBPC-1008SSN1/4-200.5310.0350.1253.0007.00
6BBPC-1009SS-36BBPC-1009SSN1/4-200.5310.0350.1252.0004.00
6BBPC-1010SS-36BBPC-1010SSN1/4-200.5310.0350.1254.00012.0
7BBPC-1011SS-37BBPC-1011SSN5/16-180.5780.0400.1564.0009.00
7BBPC-1012SS-37BBPC-1012SSN5/16-180.5780.0400.1562.0004.50
7BBPC-1013SS-37BBPC-1013SSN5/16-180.5780.0400.1566.00017.0
8BBPC-1014SS-38BBPC-1014SSN3/8-160.6250.0480.1885.00010.0
8BBPC-1015SS-38BBPC-1015SSN3/8-160.6250.0480.1882.5005.00
8BBPC-1016SS-38BBPC-1016SSN3/8-160.6250.0480.1886.00021.0
9BBPC-1017SS-39BBPC-1017SSN1/2-130.7500.0720.2816.00012.0
9BBPC-1018SS-39BBPC-1018SSN1/2-130.7500.0720.2813.0006.00
9BBPC-1019SS-39BBPC-1019SSN1/2-130.7500.0720.2816.00030.0
10BBPC-1020SS-310BBPC-1020SSN5/8-110.9840.0960.3759.00018.0
10BBPC-1021SS-310BBPC-1021SSN5/8-110.9840.0960.3754.5009.00
10BBPC-1022SS-310BBPC-1022SSN5/8-110.9840.0960.3757.00050.0
