Ball Plungers - No Flange Press Fit

No Flange Push Fit Ball Plunger

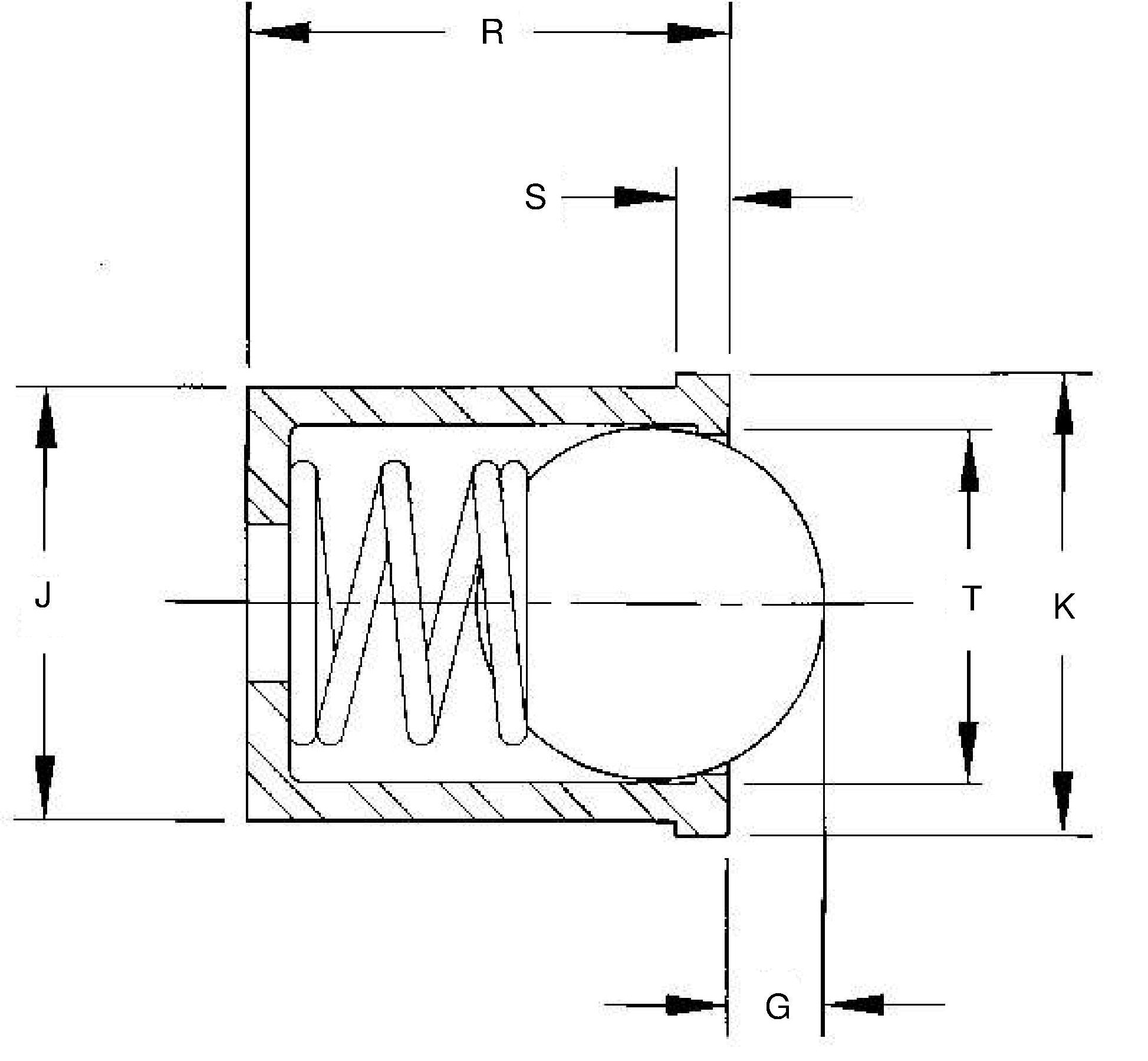

JBF National’s no flange press fit ball plungers are excellent for all of your light duty alignment and attachment applications. This plunger features a stainless steel spring and plunger ball, and comes available in either a stainless steel or black thermoplastic body. Ball plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today for further information. Please see component diagram below.

JBF P/N - Plastic JBF P/N - StainlessInitial End Force (Lbs.)Final End Force (Lbs.)JRBall Dia. TKSG
1PFBWF-1000-0.671.570.1580.1970.1180.1810.040.028
-1PFBWF-1000SS0.671.570.1580.1970.1180.1810.040.032
1PFBWF-10011PFBWF-1001SS0.91.570.1970.2360.1570.220.040.039
2PFBWF-10022PFBWF-1002SS1.352.70.2350.2750.1970.2560.040.069
2PFBWF-10032PFBWF-1003SS1.352.70.3150.3540.2560.3860.040.071
