Ball Plungers - Metric Stainless Steel Press Fit

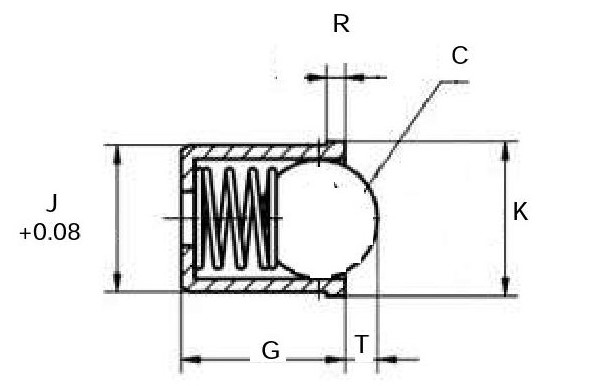

JBF National’s metric press fit ball plunger features a body, plunger ball, and internal spring manufactured from the highest quality stainless steel. Ball plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today, for further information. Please see component diagram below.
| JBF National Part Number / Metric | J | K | G | R | T | C | Ball Material | Spring Force Initiial. N | Spring Force Final. N |
|---|---|---|---|---|---|---|---|---|---|
| 1SPFBPM-1039SS | 4 | 4.6 | 5 | 1 | 0.8 | 3 | Stainless Steel | 3 | 7 |
| 1SPFBPM-1040SS | 5 | 5.6 | 6 | 1 | 1 | 4 | Stainless Steel | 4 | 7 |
| 1SPFBPM-1041SS | 6 | 6.5 | 7 | 1 | 1.5 | 5 | Stainless Steel | 6 | 12 |
| 1SPFBPM-1042SS | 8 | 8.5 | 9 | 1 | 1.8 | 6.5 | Stainless Steel | 6 | 12 |
| 1SPFBPM-1043SS | 10 | 12 | 13.5 | 2.5 | 2.7 | 8 | Stainless Steel | 10 | 20 |
| 1SPFBPM-1044SS | 12 | 14 | 16 | 2.5 | 3.5 | 10 | Stainless Steel | 15 | 25 |
