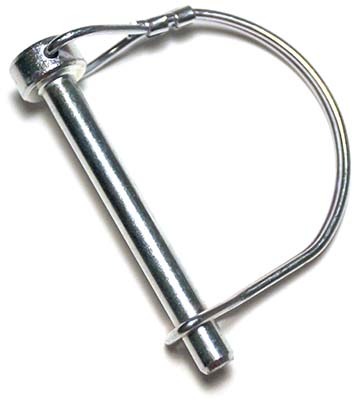

Wire Lock Pins
JBF National wire lock pins are manufactured from the highest quality C1010 clear zinc plated steel, or 302/304 stainless steel, and are designed and tested for ultimate reliability and durability. These pins allow for quick engagement and disengagement via a simple wire pulling action, and the single piece design eliminates the hassles associated with cotter pins.
| JBF P/N | DESCRIPTION | MATERIAL | PIN DIA | SHANK LENGTH | USABLE LENGTH | WIRE DIA | WIRE CLEARANCE | HEAD DIA | HANDLE TYPE |
|---|---|---|---|---|---|---|---|---|---|
| 1WLP-100 | 1/4 | Steel (C1010) | 1/4 | 1-5/8 | 1-3/8 | 0.091 | 1-5/8 | 9/16 | RD |
| 1WLP-101 | 1/4 | Steel (C1010) | 1/4 | 2 | 1-3/4 | 0.091 | 1-9/16 | 9/16 | RD |
| 1WLP-102 | 1/4 | Steel (C1010) | 1/4 | 2-1/2 | 2-1/4 | 0.091 | 1-5/8 | 9/16 | SQ |
| 1WLP-103 | 1/4 | Steel (C1010) | 1/4 | 2-3/4 | 2-1/2 | 0.091 | 1-3/4 | 9/16 | SQ |
| 1WLP-104 | 1/4 | Steel (C1010) | 1/4 | 2-3/4 | 2-1/2 | 0.091 | 1-3/4 | 9/16 | RD |
| 1WLP-105 | 5/16 | Steel (C1010) | 5/16 | 1-5/8 | 1-3/8 | 0.091 | 1-9/16 | 5/8 | RD |
| 1WLP-106 | 5/16 | Steel (C1010) | 5/16 | 2 | 1-3/4 | 0.091 | 1-1/2 | 5/8 | RD |
| 1WLP-107 | 5/16 | Steel (C1010) | 5/16 | 2-1/2 | 2-1/4 | 0.091 | 1-9/16 | 5/8 | SQ |
| 1WLP-108 | 5/16 | Steel (C1010) | 5/16 | 2-3/4 | 2-1/2 | 0.091 | 1-11/16 | 5/8 | SQ |
| 1WLP-109 | 5/16 | Steel (C1010) | 5/16 | 2-3/4 | 2-1/2 | 0.091 | 1-11/16 | 5/8 | RD |
| 1WLP-110 | 5/16 | Steel (C1010) | 5/16 | 3-1/4 | 3 | 0.091 | 1-11/16 | 5/8 | SQ |
| 1WLP-111 | 3/8 | Steel (C1010) | 3/8 | 1-5/8 | 1-3/8 | 0.091 | 1-1/2 | 5/8 | RD |
| 1WLP-112 | 3/8 | Steel (C1010) | 3/8 | 2 | 1-3/4 | 0.091 | 1-7/16 | 5/8 | RD |
| 1WLP-113 | 3/8 | Steel (C1010) | 3/8 | 2-1/2 | 2-1/4 | 0.091 | 1-1/2 | 5/8 | SQ |
| 1WLP-114 | 3/8 | Steel (C1010) | 3/8 | 2-3/4 | 2-1/2 | 0.091 | 1-5/8 | 5/8 | SQ |
| 1WLP-115 | 3/8 | Steel (C1010) | 3/8 | 2-3/4 | 2-1/2 | 0.091 | 1-5/8 | 5/8 | RD |
| 1WLP-116 | 3/8 | Steel (C1010) | 3/8 | 3-1/4 | 3 | 0.091 | 1-5/8 | 5/8 | SQ |
| 1WLP-117 | 1/2 | Steel (C1010) | 1/2 | 3-1/2 | 3 | 0.125 | 1-7/16 | 3/4 | SQ |
| 1WLP-100SS | 1/4 | Stainless Steel (302/304) | 1/4 | 1-5/8 | 1-3/8 | 0.091 | 1-5/8 | 9/16 | RD |
| 1WLP-101SS | 1/4 | Stainless Steel (302/304) | 1/4 | 2 | 1-3/4 | 0.091 | 1-5/8 | 9/16 | RD |
| 1WLP-102SS | 1/4 | Stainless Steel (302/304) | 1/4 | 2-1/2 | 2-1/4 | 0.091 | 1-5/8 | 9/16 | SQ |
| 1WLP-103SS | 1/4 | Stainless Steel (302/304) | 1/4 | 2-1/2 | 2-1/4 | 0.091 | 1-5/8 | 9/16 | RD |
| 1WLP-104SS | 1/4 | Stainless Steel (302/304) | 1/4 | 2-3/4 | 2-1/2 | 0.091 | 1-3/4 | 9/16 | SQ |
| 1WLP-105SS | 5/16 | Stainless Steel (302/304) | 5/16 | 1-5/8 | 1-3/8 | 0.091 | 1-1/2 | 5/8 | RD |
| 1WLP-106SS | 5/16 | Stainless Steel (302/304) | 5/16 | 2 | 1-3/4 | 0.091 | 1-1/2 | 5/8 | RD |
| 1WLP-107SS | 5/16 | Stainless Steel (302/304) | 5/16 | 2-1/2 | 2-1/4 | 0.091 | 1-9/16 | 5/8 | SQ |
| 1WLP-108SS | 5/16 | Stainless Steel (302/304) | 5/16 | 2-3/4 | 2-1/2 | 0.091 | 1-11/16 | 5/8 | RD |
| 1WLP-109SS | 5/16 | Stainless Steel (302/304) | 5/16 | 2-3/4 | 2-1/2 | 0.091 | 1-11/16 | 5/8 | SQ |
| 1WLP-110SS | 5/16 | Stainless Steel (302/304) | 5/16 | 3-1/4 | 3 | 0.091 | 1-11/16 | 5/8 | SQ |
| 1WLP-111SS | 3/8 | Stainless Steel (302/304) | 3/8 | 1-5/8 | 1-3/8 | 0.091 | 1-1/2 | 5/8 | RD |
| 1WLP-112SS | 3/8 | Stainless Steel (302/304) | 3/8 | 2 | 1-3/4 | 0.091 | 1-1/2 | 5/8 | RD |
| 1WLP-113SS | 3/8 | Stainless Steel (302/304) | 3/8 | 2-1/2 | 2-1/4 | 0.091 | 1-1/2 | 5/8 | SQ |
| 1WLP-114SS | 3/8 | Stainless Steel (302/304) | 3/8 | 2-3/4 | 2-1/2 | 0.091 | 1-5/8 | 5/8 | RD |
| 1WLP-115SS | 3/8 | Stainless Steel (302/304) | 3/8 | 2-3/4 | 2-1/2 | 0.091 | 1-5/8 | 5/8 | SQ |
| 1WLP-116SS | 3/8 | Stainless Steel (302/304) | 3/8 | 3-1/4 | 3 | 0.091 | 1-5/8 | 5/8 | SQ |
| 1WLP-117SS | 1/2 | Stainless Steel (302/304) | 1/2 | 3-1/4 | 3 | 0.091 | 1-5/8 | 3/4 | SQ |
