Snapper Pins

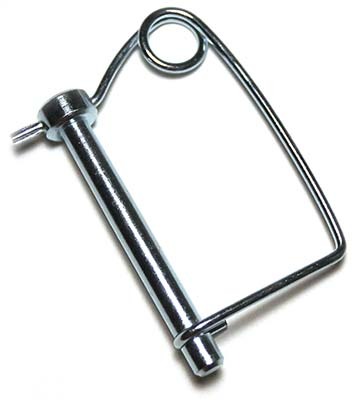

Snapper Pin
Click to enlarge

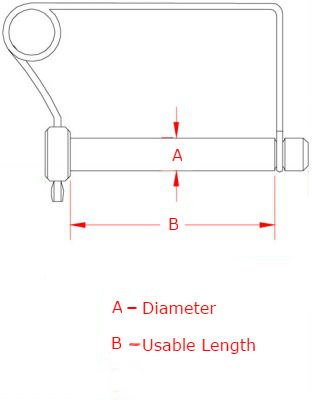

JBF National snapper pins are manufactured from the highest quality C12L14 clear zinc plated steel, or 304 stainless steel, and are designed and tested for ultimate reliability and durability. These pins allow for quick engagement and disengagement and are perfect for RV’s and tractors among other uses. Please see component diagram below.

JBF P/NDESCRIPTIONMATERIALPIN DIA (A)USABLE LENGTH (B)WIRE DIALOOP CLEARANCEHEAD DIAHEAD HEIGHT
1SNP-1001/4 x 1-3/4Steel (12L14)1/41 3/40.1051-1/21/25/16
1SNP-1011/4 x 2-1/8Steel (12L14)1/42 1/80.1051-1/21/25/16
1SNP-1021/4 x 2-1/2Steel (12L14)1/42 1/20.1051-1/21/25/16
1SNP-1031/4 x 3Steel (12L14)1/430.1051-1/21/25/16
1SNP-1041/4 x 4Steel (12L14)1/440.1051-1/21/25/16
1SNP-1055/16 x 2-1/4Steel (12L14)5/162 1/40.1051-1/21/25/16
1SNP-1065/16 x 2-3/4Steel (12L14)5/162 3/40.1051-1/21/25/16
1SNP-1075/16 x 3Steel (12L14)5/1630.1051-1/21/25/16
1SNP-1085/16 x 4Steel (12L14)5/1640.1051-1/21/25/16
1SNP-1093/8 x 2-1/4Steel (12L14)3/82 1/40.1051-1/25/85/16
1SNP-1103/8 x 2-1/2Steel (12L14)3/82 1/20.1051-1/25/85/16
1SNP-1113/8 x 3Steel (12L14)3/830.1051-1/25/85/16
1SNP-1123/8 x 4Steel (12L14)3/840.1051-1/25/85/16

304 Stainless

JBF P/NDESCRIPTION PIN DIAUSABLE LENGTH WIRE DIA LOOP CLEARANCE HEAD DIAHEAD HEIGHT
1SNP-100SS1/4 x 31/430.1051-1/21/25/16
1SNP-101SS1/4 x 41/440.1051-1/21/25/16
1SNP-102SS5/16 x 35/1630.1051-1/21/25/16
1SNP-103SS5/16 x 45/1640.1051-1/21/25/16
1SNP-104SS3/8 x 33/830.1051-1/25/85/16
1SNP-105SS3/8 x 43/840.1051-1/25/85/16
