Large Ring Pins

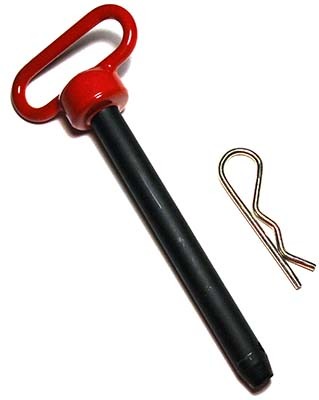

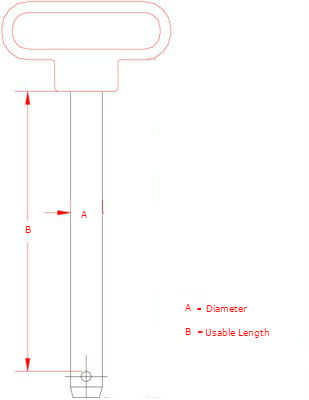

JBF National large ring pins are manufactured from the highest quality black powder coated grade 5 steel, and are designed and tested for ultimate reliability and durability. These fasteners allow for quick engagement and disengagement in lieu of more permanent fasteners like bolts and rivets. This model features a large red Plastisol handle for maximum grip and has been heat treated to withstand the most demanding of mounting situations. Please see component diagram below.
| JBF P/N | DESCRIPTION | MATERIAL | PIN DIA (A) | USABLE LENGTH (B) | KEEPER |
|---|---|---|---|---|---|
| 1LHRP-100 | 1/2 x 3-1/2 | Grade 5 | 1/2 | 3-1/2 | Hitch Pin Clip |
| 1LHRP-101 | 5/8 x 4 | Grade 5 | 5/8 | 4 | Hitch Pin Clip |
| 1LHRP-102 | 5/8 x 5-3/4 | Grade 5 | 5/8 | 5-3/4 | Hitch Pin Clip |
| 1LHRP-103 | 3/4 x 4 | Grade 5 | 3/4 | 4 | Hitch Pin Clip |
| 1LHRP-104 | 3/4 x 6-1/2 | Grade 5 | 3/4 | 6-1/2 | Hitch Pin Clip |
| 1LHRP-105 | 7/8 x 4-1/4 | Grade 5 | 7/8 | 4-/14 | Hitch Pin Clip |
| 1LHRP-106 | 7/8 x 6-1/2 | Grade 5 | 7/8 | 6-1/2 | Hitch Pin Clip |
| 1LHRP-107 | 1 x 4-1/2 | Grade 5 | 1 | 4-1/2 | Hitch Pin Clip |
| 1LHRP-108 | 1 x 7-1/2 | Grade 5 | 1 | 7-1/2 | Hitch Pin Clip |
| 1LHRP-109 | 1 x 12 | Grade 5 | 1 | 12 | Hitch Pin Clip |
| 1LHRP-110 | 1-1/8 x 8-3/8 | Grade 5 | 1 1/8 | 8-3/8 | Hitch Pin Clip |
| 1LHRP-111 | 1-1/4 x 8-3/8 | Grade 5 | 1 1/4 | 8-3/8 | Hitch Pin Clip |
| 1LHRP-112 | 1-1/4 x 12 | Grade 5 | 1 1/4 | 12 | Hitch Pin Clip |
| 1LHRP-113 | 1-1/2 x 8-1/2 | Grade 5 | 1 1/2 | 8-1/2 | Hitch Pin Clip |
| 1LHRP-114 | 1-1/2 x 13 | Grade 5 | 1 1/2 | 13 | Hitch Pin Clip |
