Classic Style Zinc Adjustable Handle with Steel Stud Insert , Adjustable Handles

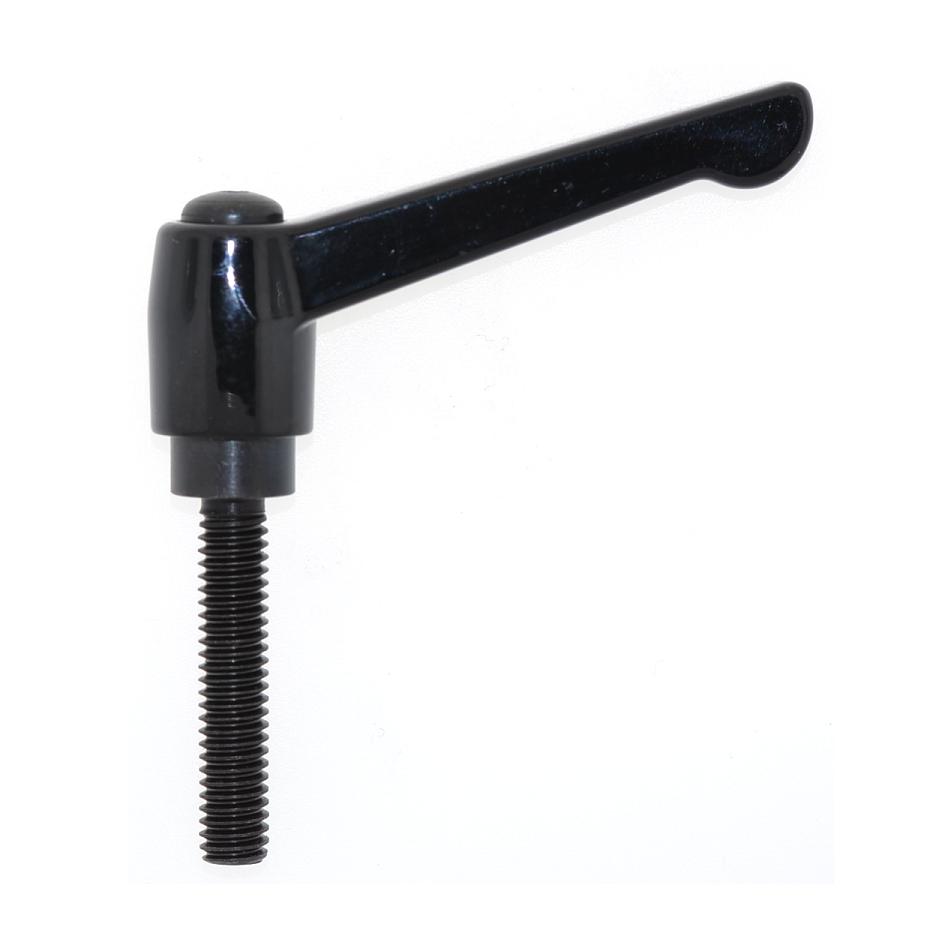

Classic Style Zinc Adjustable Clamping Lever

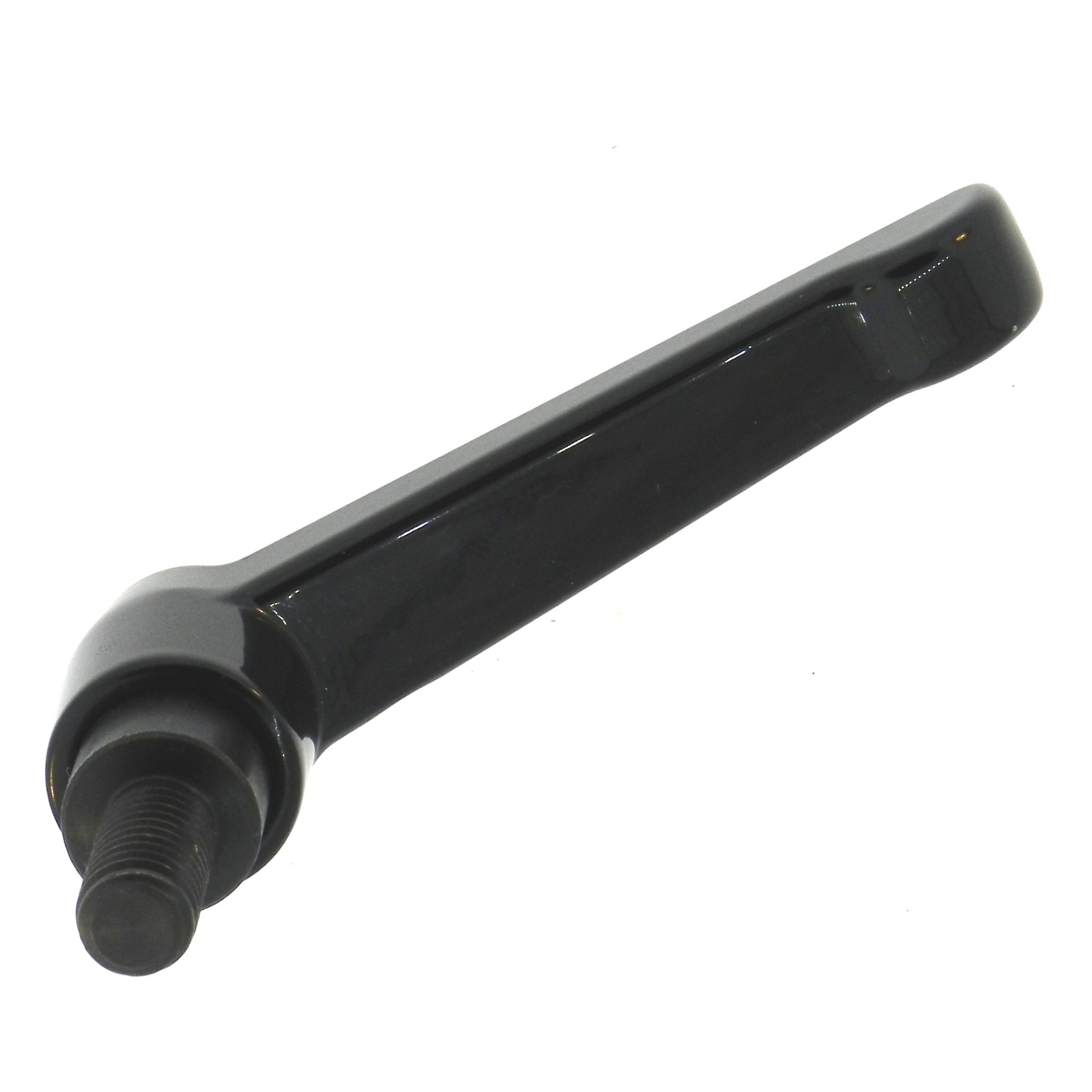

Classic Style Zinc Adjustable Clamping Lever - Bottom View

This JBF National classic style zinc adjustable handle comes in a variety of colors including Red, Yellow, Gray and Blue in addition to the standard black powder finish so as to suit any and all project needs. This adjustable handle (also known as a clamping lever) is fashioned using premium black oxide coated steel components, is RoHs compliant and features a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. Inch and Metric versions available along with a variety of stud lengths. Please see component diagram below.


JBF National Part Number / Inch	A	B	C	D	E	F-thread	G-length
1ZC-2144	1.77	1.38	0.96	0.16	0.39	10-32	0.39
1ZC-2145	1.77	1.38	0.96	0.16	0.39	10-32	0.47
1ZC-2146	1.77	1.38	0.96	0.16	0.39	10-32	0.59
1ZC-2147	1.77	1.38	0.96	0.16	0.39	10-32	0.63
1ZC-2148	1.77	1.38	0.96	0.16	0.39	10-32	0.78
1ZC-2149	1.77	1.38	0.96	0.16	0.39	10-32	0.98
1ZC-2150	1.77	1.38	0.96	0.16	0.39	10-32	1.18
1ZC-2151	1.77	1.38	0.96	0.16	0.39	10-32	1.26
1ZC-2152	1.77	1.38	0.96	0.16	0.39	10-24	0.39
1ZC-2153	1.77	1.38	0.96	0.16	0.39	10-24	0.47
1ZC-2154	1.77	1.38	0.96	0.16	0.39	10-24	0.59
1ZC-2155	1.77	1.38	0.96	0.16	0.39	10-24	0.63
1ZC-2156	1.77	1.38	0.96	0.16	0.39	10-24	0.78
1ZC-2157	1.77	1.38	0.96	0.16	0.39	10-24	0.98
1ZC-2158	1.77	1.38	0.96	0.16	0.39	10-24	1.18
1ZC-2159	1.77	1.38	0.96	0.16	0.39	10-24	1.26
1ZC-2160	1.77	1.38	0.96	0.16	0.39	1/4-20	0.39
1ZC-2161	1.77	1.38	0.96	0.16	0.39	1/4-20	0.47
1ZC-2162	1.77	1.38	0.96	0.16	0.39	1/4-20	0.59
1ZC-2163	1.77	1.38	0.96	0.16	0.39	1/4-20	0.63
1ZC-2164	1.77	1.38	0.96	0.16	0.39	1/4-20	0.78
1ZC-2165	1.77	1.38	0.96	0.16	0.39	1/4-20	0.98
1ZC-2166	1.77	1.38	0.96	0.16	0.39	1/4-20	1.18
1ZC-2167	1.77	1.38	0.96	0.16	0.39	1/4-20	1.26
1ZC-2168	1.77	1.38	0.96	0.16	0.39	1/4-20	1.57
1ZC-2169	1.77	1.38	0.96	0.16	0.39	1/4-20	1.77
2ZC-2170	2.48	1.77	1.22	0.26	0.53	1/4-20	0.47
2ZC-2171	2.48	1.77	1.22	0.26	0.53	1/4-20	0.63
2ZC-2172	2.48	1.77	1.22	0.26	0.53	1/4-20	0.78
2ZC-2173	2.48	1.77	1.22	0.26	0.53	1/4-20	0.98
2ZC-2174	2.48	1.77	1.22	0.26	0.53	5/16-18	0.47
2ZC-2175	2.48	1.77	1.22	0.26	0.53	5/16-18	0.59
2ZC-2176	2.48	1.77	1.22	0.26	0.53	5/16-18	0.63
2ZC-2177	2.48	1.77	1.22	0.26	0.53	5/16-18	0.78
2ZC-2178	2.48	1.77	1.22	0.26	0.53	5/16-18	0.98
2ZC-2179	2.28	1.77	1.22	0.26	0.53	5/16-18	1.18
2ZC-2180	2.48	1.77	1.22	0.26	0.53	5/16-18	1.26
2ZC-2181	2.48	1.77	1.22	0.26	0.53	5/16-18	1.57
2ZC-2182	2.48	1.77	1.22	0.26	0.53	5/16-18	1.77
2ZC-2183	2.48	1.77	1.22	0.26	0.53	5/16-18	1.97
2ZC-2184	2.48	1.77	1.22	0.26	0.53	5/16-18	2.36
2ZC-2185	2.48	1.77	1.22	0.26	0.53	5/16-18	2.48
2ZC-2186	2.48	1.77	1.22	0.26	0.53	3/8-16	0.59
2ZC-2187	2.48	1.77	1.22	0.26	0.53	3/8-16	0.63
2ZC-2188	2.48	1.77	1.22	0.26	0.53	3/8-16	0.78
2ZC-2189	2.48	1.77	1.22	0.26	0.53	3/8-16	0.98
2ZC-2190	2.48	1.77	1.22	0.26	0.53	3/8-16	1.18
2ZC-2191	2.48	1.77	1.22	0.26	0.53	3/8-16	1.26
2ZC-2192	2.48	1.77	1.22	0.26	0.53	3/8-16	1.57
2ZC-2193	2.48	1.77	1.22	0.26	0.53	3/8-16	1.77
2ZC-2194	2.48	1.77	1.22	0.26	0.53	3/8-16	1.97
2ZC-2195	2.48	1.77	1.22	0.26	0.53	3/8-16	2.36
2ZC-2196	2.48	1.77	1.22	0.26	0.53	3/8-16	2.48
3ZC-2197	3.07	2.17	1.42	0.31	0.63	3/8-16	0.59
3ZC-2198	3.07	2.17	1.42	0.31	0.63	3/8-16	0.63
3ZC-2199	3.07	2.17	1.42	0.31	0.63	3/8-16	0.78
3ZC-2200	3.07	2.17	1.42	0.31	0.63	3/8-16	0.98
3ZC-2201	3.07	2.17	1.42	0.31	0.63	3/8-16	1.18
3ZC-2202	3.07	2.17	1.42	0.31	0.63	3/8-16	1.26
3ZC-2203	3.07	2.17	1.42	0.31	0.63	3/8-16	1.57
3ZC-2204	3.07	2.17	1.42	0.31	0.63	3/8-16	1.77
3ZC-2205	3.07	2.17	1.42	0.31	0.63	3/8-16	1.97
3ZC-2206	3.07	2.17	1.42	0.31	0.63	3/8-16	2.36
3ZC-2207	3.07	2.17	1.42	0.31	0.63	3/8-16	2.48
3ZC-2208	3.07	2.17	1.42	0.31	0.63	1/2-13	0.63
3ZC-2209	3.07	2.17	1.42	0.31	0.63	1/2-13	0.78
3ZC-2210	3.07	2.17	1.42	0.31	0.63	1/2-13	0.98
3ZC-2211	3.07	2.17	1.42	0.31	0.63	1/2-13	1.26
3ZC-2212	3.07	2.17	1.42	0.31	0.63	1/2-13	1.57
3ZC-2213	3.07	2.17	1.42	0.31	0.63	1/2-13	1.77
3ZC-2214	3.07	2.17	1.42	0.31	0.63	1/2-13	1.97
4ZC-2215	3.62	2.56	1.69	0.43	0.75	3/8-16	0.59
4ZC-2216	3.62	2.56	1.69	0.43	0.75	3/8-16	0.63
4ZC-2217	3.62	2.56	1.69	0.43	0.75	3/8-16	0.78
4ZC-2218	3.62	2.56	1.69	0.43	0.75	3/8-16	0.98
4ZC-2219	3.62	2.56	1.69	0.43	0.75	3/8-16	1.18
4ZC-2220	3.62	2.56	1.69	0.43	0.75	3/8-16	1.26
4ZC-2221	3.62	2.56	1.69	0.43	0.75	3/8-16	1.57
4ZC-2222	3.62	2.56	1.69	0.43	0.75	3/8-16	1.77
4ZC-2223	3.62	2.56	1.69	0.43	0.75	3/8-16	1.97
4ZC-2224	3.62	2.56	1.69	0.43	0.75	3/8-16	2.36
4ZC-2225	3.62	2.56	1.69	0.43	0.75	3/8-16	2.48
4ZC-2226	3.62	2.56	1.69	0.43	0.75	1/2-13	0.59
4ZC-2227	3.62	2.56	1.69	0.43	0.75	1/2-13	0.63
4ZC-2228	3.62	2.56	1.69	0.43	0.75	1/2-13	0.78
4ZC-2229	3.62	2.56	1.69	0.43	0.75	1/2-13	0.98
4ZC-2230	3.62	2.56	1.69	0.43	0.75	1/2-13	1.18
4ZC-2231	3.62	2.56	1.69	0.43	0.75	1/2-13	1.26
4ZC-2232	3.62	2.56	1.69	0.43	0.75	1/2-13	1.38
4ZC-2233	3.62	2.56	1.69	0.43	0.75	1/2-13	1.57
4ZC-2234	3.62	2.56	1.69	0.43	0.75	1/2-13	1.77
4ZC-2235	3.62	2.56	1.69	0.43	0.75	1/2-13	1.97
4ZC-2236	3.62	2.56	1.69	0.43	0.75	1/2-13	2.36
4ZC-2237	3.62	2.56	1.69	0.43	0.75	1/2-13	2.48
5ZC-2238	4.25	2.99	1.99	0.47	0.91	1/2-13	0.98
5ZC-2239	4.25	2.99	1.99	0.47	0.91	1/2-13	1.26
5ZC-2240	4.25	2.99	1.99	0.47	0.91	1/2-13	1.57
5ZC-2241	4.25	2.99	1.99	0.47	0.91	1/2-13	1.97
5ZC-2242	4.25	2.99	1.99	0.47	0.91	1/2-13	2.17
5ZC-2243	4.25	2.99	1.99	0.47	0.91	1/2-13	2.36
5ZC-2244	4.25	2.99	1.99	0.47	0.91	1/2-13	2.48
5ZC-2245	4.25	2.99	1.99	0.47	0.91	5/8-11	1.26
5ZC-2246	4.25	2.99	1.99	0.47	0.91	5/8-11	1.57
5ZC-2247	4.25	2.99	1.99	0.47	0.91	5/8-11	1.97
5ZC-2248	4.25	2.99	1.99	0.47	0.91	5/8-11	2.17
5ZC-2249	4.25	2.99	1.99	0.47	0.91	5/8-11	2.36
5ZC-2250	4.25	2.99	1.99	0.47	0.91	5/8-11	2.48


JBF National Part Number / Metric	A	B	C	D	E	F-thread	G-length
1ZC-1664	45	35	25	4	10	M4	10
1ZC-1665	45	35	25	4	10	M4	12
1ZC-1666	45	35	25	4	10	M4	16
1ZC-1667	45	35	25	4	10	M4	20
1ZC-1668	45	35	25	4	10	M4	25
1ZC-1669	45	35	25	4	10	M4	32
1ZC-1670	45	35	25	4	10	M5	10
1ZC-1671	45	35	25	4	10	M5	12
1ZC-1672	45	35	25	4	10	M5	15
1ZC-1673	45	35	25	4	10	M5	20
1ZC-1674	45	35	25	4	10	M5	25
1ZC-1675	45	35	25	4	10	M5	32
1ZC-1676	45	35	25	4	10	M5	40
1ZC-1677	45	35	25	4	10	M5	50
1ZC-1678	45	35	25	4	10	M6	10
1ZC-1679	45	35	25	4	10	M6	12
1ZC-1680	45	35	25	4	10	M6	15
1ZC-1681	45	35	25	4	10	M6	20
1ZC-1682	45	35	25	4	10	M6	25
1ZC-1683	45	35	25	4	10	M6	30
1ZC-1684	45	35	25	4	10	M6	32
1ZC-1685	45	35	25	4	10	M6	35
1ZC-1686	45	35	25	4	10	M6	40
1ZC-1687	45	35	25	4	10	M6	45
1ZC-1688	45	35	25	4	10	M6	50
1ZC-1689	45	35	25	4	10	M6	63
2ZC-1690	63	45	31	6.5	13.5	M6	12
2ZC-1691	63	45	31	6.5	13.5	M6	16
2ZC-1692	63	45	31	6.5	13.5	M6	20
2ZC-1693	63	45	31	6.5	13.5	M6	25
2ZC-1694	63	45	31	6.5	13.5	M6	32
2ZC-1695	63	45	31	6.5	13.5	M6	40
2ZC-1696	63	45	31	6.5	13.5	M6	50
2ZC-1697	63	45	31	6.5	13.5	M6	63
2ZC-1698	63	45	31	6.5	13.5	M8	12
2ZC-1699	63	45	31	6.5	13.5	M8	15
2ZC-1700	63	45	31	6.5	13.5	M8	20
2ZC-1701	63	45	31	6.5	13.5	M8	25
2ZC-1702	63	45	31	6.5	13.5	M8	30
2ZC-1703	63	45	31	6.5	13.5	M8	32
2ZC-1704	63	45	31	6.5	13.5	M8	35
2ZC-1705	63	45	31	6.5	13.5	M8	40
2ZC-1706	63	45	31	6.5	13.5	M8	45
2ZC-1707	63	45	31	6.5	13.5	M8	50
2ZC-1708	63	45	31	6.5	13.5	M8	60
2ZC-1709	63	45	31	6.5	13.5	M8	63
2ZC-1710	63	45	31	6.5	13.5	M10	15
2ZC-1711	63	45	31	6.5	13.5	M10	20
2ZC-1712	63	45	31	6.5	13.5	M10	25
2ZC-1713	63	45	31	6.5	13.5	M10	30
2ZC-1714	63	45	31	6.5	13.5	M10	35
2ZC-1715	63	45	31	6.5	13.5	M10	40
2ZC-1716	63	45	31	6.5	13.5	M10	45
2ZC-1717	63	45	31	6.5	13.5	M10	50
2ZC-1718	63	45	31	6.5	13.5	M10	60
2ZC-1719	63	45	31	6.5	13.5	M10	80
3ZC-1720	78	55	36	8	16	M10	15
3ZC-1721	78	55	36	8	16	M10	20
3ZC-1722	78	55	36	8	16	M10	25
3ZC-1723	78	55	36	8	16	M10	30
3ZC-1724	78	55	36	8	16	M10	32
3ZC-1725	78	55	36	8	16	M10	35
3ZC-1726	78	55	36	8	16	M10	40
3ZC-1727	78	55	36	8	16	M10	45
3ZC-1728	78	55	36	8	16	M10	50
3ZC-1729	78	55	36	8	16	M10	60
3ZC-1730	78	55	36	8	16	M10	63
3ZC-1731	78	55	36	8	16	M10	80
3ZC-1732	78	55	36	8	16	M12	25
3ZC-1733	78	55	36	8	16	M12	32
3ZC-1734	78	55	36	8	16	M12	40
3ZC-1735	78	55	36	8	16	M12	50
3ZC-1736	78	55	36	8	16	M12	63
3ZC-1737	78	55	36	8	16	M12	80
4ZC-1738	92	65	43	11	19	M10	20
4ZC-1739	92	65	43	11	19	M10	25
4ZC-1740	92	65	43	11	19	M10	30
4ZC-1741	92	65	43	11	19	M10	32
4ZC-1742	92	65	43	11	19	M10	35
4ZC-1743	92	65	43	11	19	M10	40
4ZC-1744	92	65	43	11	19	M10	45
4ZC-1745	92	65	43	11	19	M10	50
4ZC-1746	92	65	43	11	19	M10	60
4ZC-1747	92	65	43	11	19	M10	63
4ZC-1748	92	65	43	11	19	M10	80
4ZC-1749	92	65	43	11	19	M12	20
4ZC-1750	92	65	43	11	19	M12	25
4ZC-1751	92	65	43	11	19	M12	30
4ZC-1752	92	65	43	11	19	M12	32
4ZC-1753	92	65	43	11	19	M12	35
4ZC-1754	92	65	43	11	19	M12	40
4ZC-1755	92	65	43	11	19	M12	45
4ZC-1756	92	65	43	11	19	M12	50
4ZC-1757	92	65	43	11	19	M12	60
4ZC-1758	92	65	43	11	19	M12	63
4ZC-1759	92	65	43	11	19	M12	80
5ZC-1760	108	75	50	12	23	M12	40
5ZC-1761	108	75	50	12	23	M12	25
5ZC-1762	108	75	50	12	23	M12	32
5ZC-1763	108	75	50	12	23	M12	50
5ZC-1764	108	75	50	12	23	M12	60
5ZC-1765	108	75	50	12	23	M12	63
5ZC-1766	108	75	50	12	23	M12	80
5ZC-1767	108	75	50	12	23	M12	120
5ZC-1768	108	75	50	12	23	M16	25
5ZC-1769	108	75	50	12	23	M16	32
5ZC-1770	108	75	50	12	23	M16	40
5ZC-1771	108	75	50	12	23	M16	50
5ZC-1772	108	75	50	12	23	M16	60
5ZC-1773	108	75	50	12	23	M16	63
5ZC-1774	108	75	50	12	23	M16	80
5ZC-1775	108	75	50	12	23	M16	120
