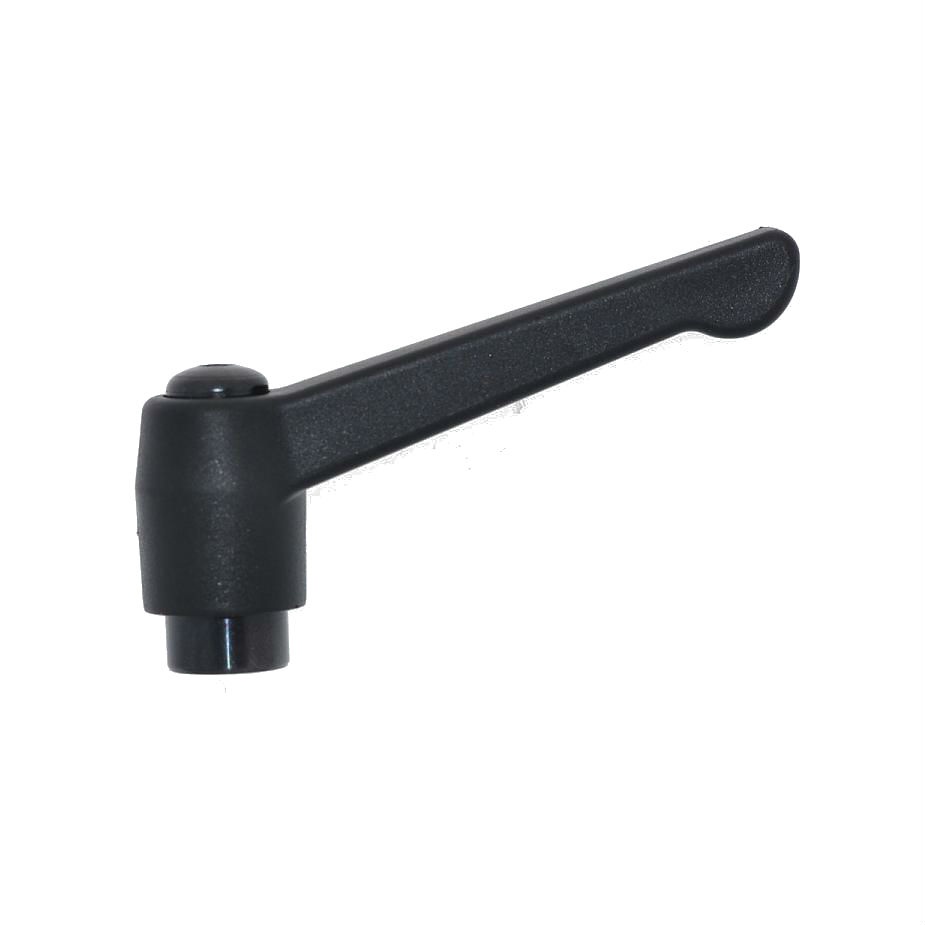

Classic Style Plastic Adjustable Handle with Steel Tapped Insert

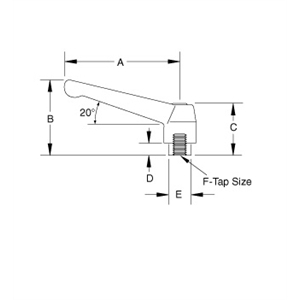

This classic style adjustable handle from JBF National is fashioned using Nylon 6 and is reinforced with a 30% glass fiber content mixture to enhance durability. This adjustable handle (also known as a clamping lever) features both premium black oxide coated steel components, and a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. RoHs compliant. Inch and Metric versions available. Please see component diagram below.
| JBF National Part Number / Inch | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1PC-2001 | 1.77 | 1.38 | 0.96 | 0.16 | 0.39 | 10-24 |
| 1PC-2002 | 1.77 | 1.38 | 0.96 | 0.16 | 0.39 | 1/4-20 |
| 1PC-2003 | 1.77 | 1.38 | 0.96 | 0.16 | 0.39 | .250 ream |
| 1PC-2004 | 1.77 | 1.38 | 0.96 | 0.16 | 0.39 | 10-32 |
| 2PC-2005 | 2.48 | 1.77 | 1.22 | 0.26 | 0.53 | 1/4-20 |
| 2PC-2006 | 2.48 | 1.77 | 1.22 | 0.26 | 0.53 | 5/16-18 |
| 2PC-2007 | 2.48 | 1.77 | 1.22 | 0.26 | 0.53 | .250 ream |
| 2PC-2008 | 2.48 | 1.77 | 1.22 | 0.26 | 0.53 | .313 ream |
| 3PC-2009 | 3.07 | 2.17 | 1.42 | 0.31 | 0.63 | 5/16-18 |
| 3PC-2010 | 3.07 | 2.17 | 1.42 | 0.31 | 0.63 | 3/8-16 |
| 3PC-2011 | 3.07 | 2.17 | 1.42 | 0.31 | 0.63 | .313 ream |
| 3PC-2012 | 3.07 | 2.17 | 1.42 | 0.31 | 0.63 | .375 ream |
| 4PC-2013 | 3.62 | 2.56 | 1.69 | 0.43 | 0.75 | 3/8-16 |
| 4PC-2014 | 3.62 | 2.56 | 1.69 | 0.43 | 0.75 | 1/2-13 |
| 4PC-2015 | 3.62 | 2.56 | 1.69 | 0.43 | 0.75 | .375 ream |
| 4PC-2016 | 3.62 | 2.56 | 1.69 | 0.43 | 0.75 | .500 ream |
| JBF National Part Number / Metric | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1PC-1514 | 45 | 35 | 24.5 | 4 | 10 | M5 |
| 1PC-1515 | 45 | 35 | 24.5 | 4 | 10 | M6 |
| 1PC-1516 | 45 | 35 | 24.5 | 4 | 10 | 5mm ream |
| 1PC-1517 | 45 | 35 | 24.5 | 4 | 10 | M4 |
| 2PC-1518 | 63 | 45 | 31 | 6.5 | 13.5 | M6 |
| 2PC-1519 | 63 | 45 | 31 | 6.5 | 13.5 | M8 |
| 2PC-1520 | 63 | 45 | 31 | 6.5 | 13.5 | 6mm ream |
| 2PC-1521 | 63 | 45 | 31 | 6.5 | 13.5 | 8mm ream |
| 3PC-1522 | 78 | 55 | 36 | 8 | 16 | M8 |
| 3PC-1523 | 78 | 55 | 36 | 8 | 16 | M10 |
| 3PC-1524 | 78 | 55 | 36 | 8 | 16 | 8mm ream |
| 3PC-1525 | 78 | 55 | 36 | 8 | 16 | 10mm ream |
| 4PC-1526 | 92 | 65 | 43 | 11 | 19 | M10 |
| 4PC-1527 | 92 | 65 | 43 | 11 | 19 | M12 |
| 4PC-1528 | 92 | 65 | 43 | 11 | 19 | 10mm ream |
| 4PC-1529 | 92 | 65 | 43 | 11 | 19 | 12mm ream |
