Classic Style Zinc Adjustable Handle with Steel Tapped Insert

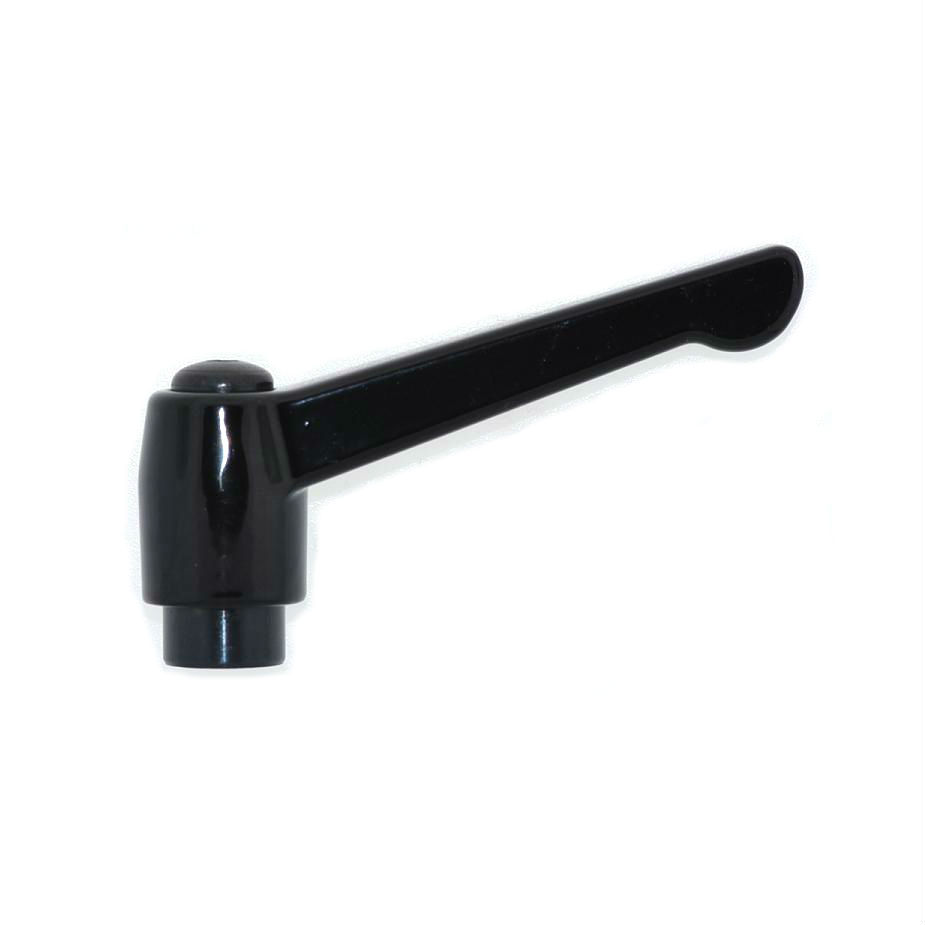

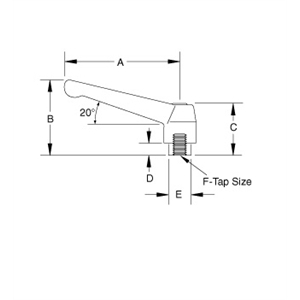

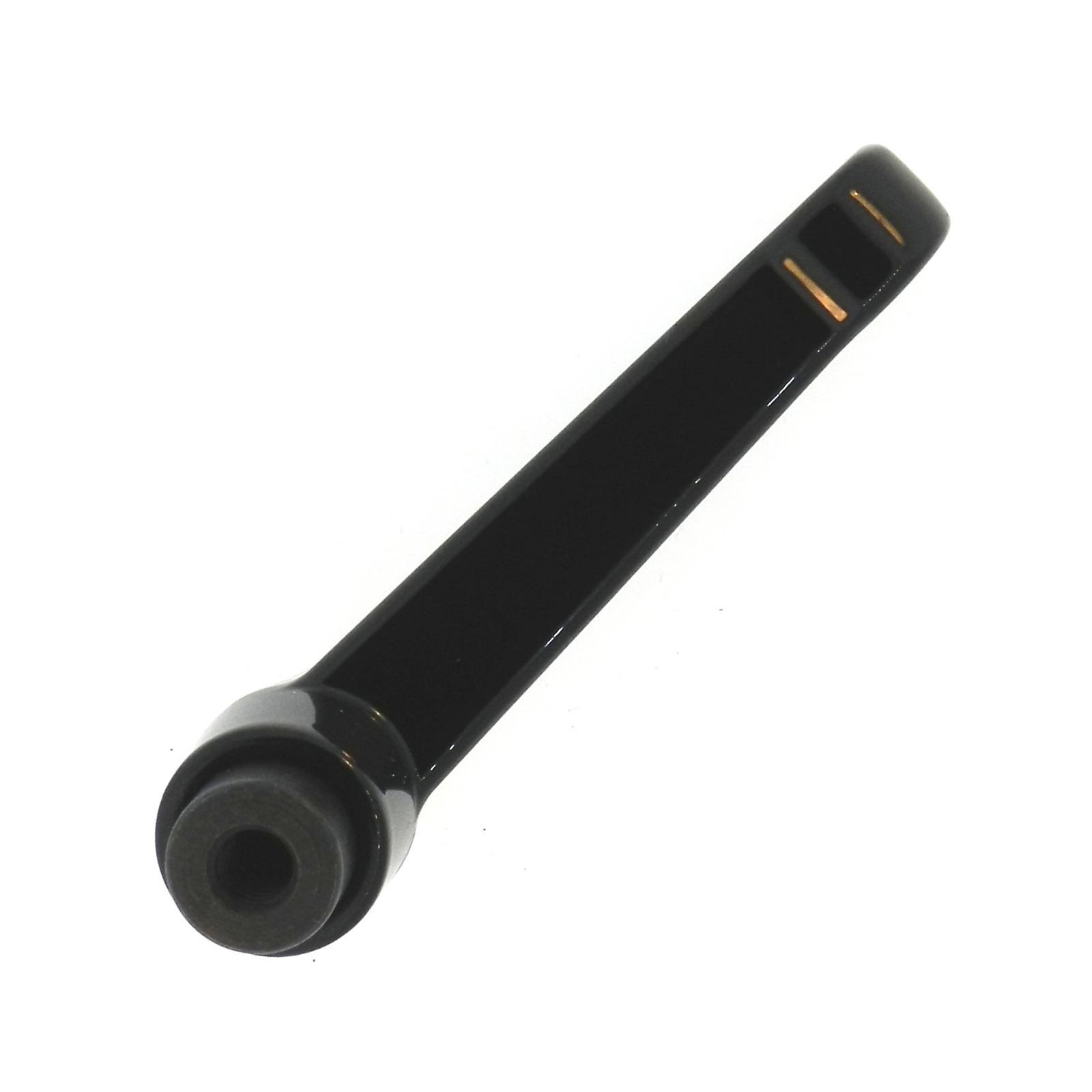

This JBF National classic style zinc adjustable handle comes in a variety of colors including Red, Yellow, Gray and Blue in addition to the standard black powder finish so as to suit any and all project needs. This adjustable handle (also known as a clamping lever) is fashioned using premium black oxide coated steel components, is RoHs compliant and features a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. Inch and Metric versions available. Please see component diagram below.
| JBF National Part Number / Inch | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1ZC-2251 | 1.77 | 1.38 | 0.95 | 0.13 | 0.39 | 10-24 |
| 1ZC-2252 | 1.77 | 1.38 | 0.95 | 0.13 | 0.39 | 1/4-20 |
| 1ZC-2253 | 1.77 | 1.38 | 0.95 | 0.13 | 0.39 | .250 ream |
| 1ZC-2254 | 1.77 | 1.38 | 0.95 | 0.13 | 0.39 | 10-32 |
| 2ZC-2255 | 2.56 | 1.77 | 1.22 | 0.24 | 0.53 | 1/4-20 |
| 2ZC-2256 | 2.56 | 1.77 | 1.22 | 0.24 | 0.53 | 5/16-18 |
| 2ZC-2257 | 2.56 | 1.77 | 1.22 | 0.24 | 0.53 | .250 ream |
| 2ZC-2258 | 2.56 | 1.77 | 1.22 | 0.24 | 0.53 | .313 ream |
| 3ZC-2259 | 3.07 | 2.12 | 1.41 | 0.29 | 0.63 | 5/16-18 |
| 3ZC-2260 | 3.07 | 2.12 | 1.41 | 0.29 | 0.63 | 3/8-16 |
| 3ZC-2261 | 3.07 | 2.12 | 1.41 | 0.29 | 0.63 | .313 ream |
| 3ZC-2262 | 3.07 | 2.12 | 1.41 | 0.29 | 0.63 | .375 ream |
| 4ZC-2263 | 3.62 | 2.52 | 1.69 | 0.35 | 0.75 | 3/8-16 |
| 4ZC-2264 | 3.62 | 2.52 | 1.69 | 0.35 | 0.75 | 1/2-13 |
| 4ZC-2265 | 3.62 | 2.52 | 1.69 | 0.35 | 0.75 | .375 ream |
| 4ZC-2266 | 3.62 | 2.52 | 1.69 | 0.35 | 0.75 | .500 ream |
| 5ZC-2267 | 4.25 | 2.95 | 1.98 | 0.47 | 0.91 | 1/2-13 |
| 5ZC-2268 | 4.25 | 2.95 | 1.98 | 0.47 | 0.91 | 5/8-11 |
| 5ZC-2269 | 4.25 | 2.95 | 1.98 | 0.47 | 0.91 | .500 ream |
| 5ZC-2270 | 4.25 | 2.95 | 1.98 | 0.47 | 0.91 | .625 ream |
| JBF National Part Number / Metric | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1ZC-1776 | 46 | 33 | 26 | 4.5 | 10 | M5 |
| 1ZC-1777 | 46 | 33 | 26 | 4.5 | 10 | M6 |
| 1ZC-1778 | 46 | 33 | 26 | 4.5 | 10 | 5mm ream |
| 1ZC-1779 | 46 | 33 | 26 | 4.5 | 10 | M4 |
| 1ZC-1780 | 46 | 33 | 26 | 4.5 | 10 | 6mm ream |
| 2ZC-1781 | 63 | 45 | 31 | 6.5 | 13.5 | M6 |
| 2ZC-1782 | 63 | 45 | 31 | 6.5 | 13.5 | M8 |
| 2ZC-1783 | 63 | 45 | 31 | 6.5 | 13.5 | 6mm ream |
| 2ZC-1784 | 63 | 45 | 31 | 6.5 | 13.5 | 8mm ream |
| 3ZC-1785 | 78 | 55 | 36 | 8 | 16 | M8 |
| 3ZC-1786 | 78 | 55 | 36 | 8 | 16 | M10 |
| 3ZC-1787 | 78 | 55 | 36 | 8 | 16 | 8mm ream |
| 3ZC-1788 | 78 | 55 | 36 | 8 | 16 | 10mm ream |
| 4ZC-1789 | 92 | 65 | 43 | 11 | 19 | M10 |
| 4ZC-1790 | 92 | 65 | 43 | 11 | 19 | M12 |
| 4ZC-1791 | 92 | 65 | 43 | 11 | 19 | 10mm ream |
| 4ZC-1792 | 92 | 65 | 43 | 11 | 19 | 12mm ream |
| 5ZC-1793 | 108 | 75 | 50 | 12 | 23 | M12 |
| 5ZC-1794 | 108 | 75 | 50 | 12 | 23 | M16 |
| 5ZC-1795 | 108 | 75 | 50 | 12 | 23 | 12mm ream |
| 5ZC-1796 | 108 | 75 | 50 | 12 | 23 | 16mm ream |
