Classic Style Zinc Adjustable Handle with SS Stud Insert , Adjustable Handles

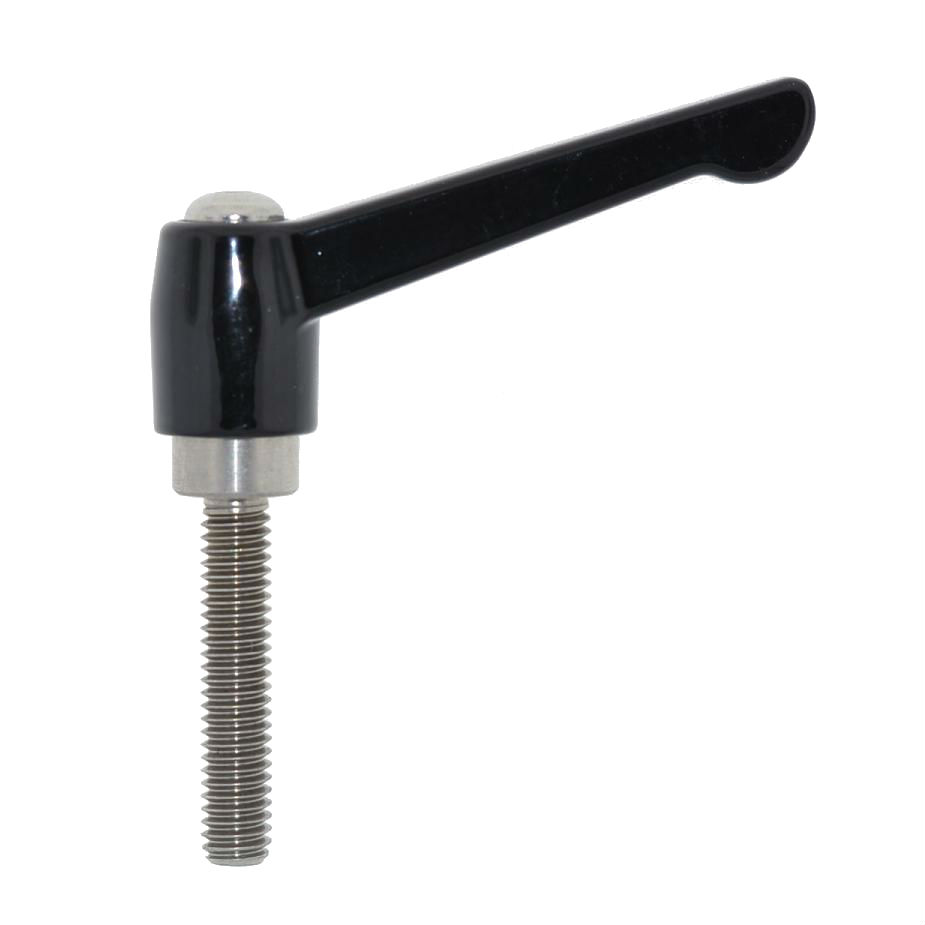

Classic Style Zinc Adjustable Clamping Lever

Classic Style Zinc Adjustable Clamping Lever - Bottom View

This JBF National classic style zinc adjustable handle comes in a variety of colors including Red, Yellow, Gray and Blue in addition to the standard black powder finish so as to suit any and all project needs. This adjustable handle (also known as a clamping lever) is fashioned using premium 303 stainless steel components, isRoHs compliant, and features a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. Inch and Metric versions available along with a variety of stud lengths. Please see component diagram below.


JBF National Part Number / Inch	A	B	C	D	E	F-thread	G-length
1ZC-2017SS	1.77	1.38	0.96	0.16	0.39	10-32	0.39
1ZC-2018SS	1.77	1.38	0.96	0.16	0.39	10-32	0.47
1ZC-2019SS	1.77	1.38	0.96	0.16	0.39	10-32	0.59
1ZC-2020SS	1.77	1.38	0.96	0.16	0.39	10-32	0.63
1ZC-2021SS	1.77	1.38	0.96	0.16	0.39	10-32	0.78
1ZC-2022SS	1.77	1.38	0.96	0.16	0.39	10-32	0.98
1ZC-2023SS	1.77	1.38	0.96	0.16	0.39	10-32	1.18
1ZC-2024SS	1.77	1.38	0.96	0.16	0.39	10-32	1.26
1ZC-2025SS	1.77	1.38	0.96	0.16	0.39	10-24	0.39
1ZC-2026SS	1.77	1.38	0.96	0.16	0.39	10-24	0.47
1ZC-2027SS	1.77	1.38	0.96	0.16	0.39	10-24	0.59
1ZC-2028SS	1.77	1.38	0.96	0.16	0.39	10-24	0.63
1ZC-2029SS	1.77	1.38	0.96	0.16	0.39	10-24	0.78
1ZC-2030SS	1.77	1.38	0.96	0.16	0.39	10-24	0.98
1ZC-2031SS	1.77	1.38	0.96	0.16	0.39	10-24	1.18
1ZC-2032SS	1.77	1.38	0.96	0.16	0.39	10-24	1.26
1ZC-2033SS	1.77	1.38	0.96	0.16	0.39	1/4-20	0.39
1ZC-2034SS	1.77	1.38	0.96	0.16	0.39	1/4-20	0.47
1ZC-2035SS	1.77	1.38	0.96	0.16	0.39	1/4-20	0.59
1ZC-2036SS	1.77	1.38	0.96	0.16	0.39	1/4-20	0.63
1ZC-2037SS	1.77	1.38	0.96	0.16	0.39	1/4-20	0.78
1ZC-2038SS	1.77	1.38	0.96	0.16	0.39	1/4-20	0.98
1ZC-2039SS	1.77	1.38	0.96	0.16	0.39	1/4-20	1.18
1ZC-2040SS	1.77	1.38	0.96	0.16	0.39	1/4-20	1.26
1ZC-2041SS	1.77	1.38	0.96	0.16	0.39	1/4-20	1.57
1ZC-2042SS	1.77	1.38	0.96	0.16	0.39	1/4-20	1.77
2ZC-2043SS	2.48	1.77	1.22	0.26	0.53	1/4-20	0.47
2ZC-2044SS	2.48	1.77	1.22	0.26	0.53	1/4-20	0.63
2ZC-2045SS	2.48	1.77	1.22	0.26	0.53	1/4-20	0.78
2ZC-2046SS	2.48	1.77	1.22	0.26	0.53	1/4-20	0.98
2ZC-2047SS	2.48	1.77	1.22	0.26	0.53	5/16-18	0.47
2ZC-2048SS	2.48	1.77	1.22	0.26	0.53	5/16-18	0.59
2ZC-2049SS	2.48	1.77	1.22	0.26	0.53	5/16-18	0.63
2ZC-2050SS	2.48	1.77	1.22	0.26	0.53	5/16-18	0.78
2ZC-2051SS	2.48	1.77	1.22	0.26	0.53	5/16-18	0.98
2ZC-2052SS	2.48	1.77	1.22	0.26	0.53	5/16-18	1.18
2ZC-2053SS	2.48	1.77	1.22	0.26	0.53	5/16-18	1.26
2ZC-2054SS	2.48	1.77	1.22	0.26	0.53	5/16-18	1.57
2ZC-2055SS	2.48	1.77	1.22	0.26	0.53	5/16-18	1.77
2ZC-2056SS	2.48	1.77	1.22	0.26	0.53	5/16-18	1.97
2ZC-2057SS	2.48	1.77	1.22	0.26	0.53	5/16-18	2.36
2ZC-2058SS	2.48	1.77	1.22	0.26	0.53	5/16-18	2.48
2ZC-2059SS	2.48	1.77	1.22	0.26	0.53	3/8-16	0.59
2ZC-2060SS	2.48	1.77	1.22	0.26	0.53	3/8-16	0.63
2ZC-2061SS	2.48	1.77	1.22	0.26	0.53	3/8-16	0.78
2ZC-2062SS	2.48	1.77	1.22	0.26	0.53	3/8-16	0.98
2ZC-2063SS	2.48	1.77	1.22	0.26	0.53	3/8-16	1.18
2ZC-2064SS	2.48	1.77	1.22	0.26	0.53	3/8-16	1.26
2ZC-2065SS	2.48	1.77	1.22	0.26	0.53	3/8-16	1.57
2ZC-2066SS	2.48	1.77	1.22	0.26	0.53	3/8-16	1.77
2ZC-2067SS	2.48	1.77	1.22	0.26	0.53	3/8-16	1.97
2ZC-2068SS	2.48	1.77	1.22	0.26	0.53	3/8-16	2.36
2ZC-2069SS	2.48	1.77	1.22	0.26	0.53	3/8-16	2.48
3ZC-2070SS	3.07	2.17	1.42	0.31	0.63	3/8-16	0.59
3ZC-2071SS	3.07	2.17	1.42	0.31	0.63	3/8-16	0.63
3ZC-2072SS	3.07	2.17	1.42	0.31	0.63	3/8-16	0.78
3ZC-2073SS	3.07	2.17	1.42	0.31	0.63	3/8-16	0.98
3ZC-2074SS	3.07	2.17	1.42	0.31	0.63	3/8-16	1.18
3ZC-2075SS	3.07	2.17	1.42	0.31	0.63	3/8-16	1.26
3ZC-2076SS	3.07	2.17	1.42	0.31	0.63	3/8-16	1.57
3ZC-2077SS	3.07	2.17	1.42	0.31	0.63	3/8-16	1.77
3ZC-2078SS	3.07	2.17	1.42	0.31	0.63	3/8-16	1.97
3ZC-2079SS	3.07	2.17	1.42	0.31	0.63	3/8-16	2.36
3ZC-2080SS	3.07	2.17	1.42	0.31	0.63	3/8-16	2.48
3ZC-2081SS	3.07	2.17	1.42	0.31	0.63	1/2-13	0.63
3ZC-2082SS	3.07	2.17	1.42	0.31	0.63	1/2-13	0.78
3ZC-2083SS	3.07	2.17	1.42	0.31	0.63	1/2-13	0.98
3ZC-2084SS	3.07	2.17	1.42	0.31	0.63	1/2-13	1.26
3ZC-2085SS	3.07	2.17	1.42	0.31	0.63	1/2-13	1.57
3ZC-2086SS	3.07	2.17	1.42	0.31	0.63	1/2-13	1.77
3ZC-2087SS	3.07	2.17	1.42	0.31	0.63	1/2-13	1.97
4ZC-2088SS	3.62	2.56	1.69	0.43	0.75	3/8-16	0.59
4ZC-2089SS	3.62	2.56	1.69	0.43	0.75	3/8-16	0.63
4ZC-2090SS	3.62	2.56	1.69	0.43	0.75	3/8-16	0.78
4ZC-2091SS	3.62	2.56	1.69	0.43	0.75	3/8-16	0.98
4ZC-2092SS	3.62	2.56	1.69	0.43	0.75	3/8-16	1.18
4ZC-2093SS	3.62	2.56	1.69	0.43	0.75	3/8-16	1.26
4ZC-2094SS	3.62	2.56	1.69	0.43	0.75	3/8-16	1.57
4ZC-2095SS	3.62	2.56	1.69	0.43	0.75	3/8-16	1.77
4ZC-2096SS	3.62	2.56	1.69	0.43	0.75	3/8-16	1.97
4ZC-2097SS	3.62	2.56	1.69	0.43	0.75	3/8-16	2.36
4ZC-2098SS	3.62	2.56	1.69	0.43	0.75	3/8-16	2.48
4ZC-2099SS	3.62	2.56	1.69	0.43	0.75	1/2-13	0.59
4ZC-2100SS	3.62	2.56	1.69	0.43	0.75	1/2-13	0.63
4ZC-2101SS	3.62	2.56	1.69	0.43	0.75	1/2-13	0.78
4ZC-2102SS	3.62	2.56	1.69	0.43	0.75	1/2-13	0.98
4ZC-2103SS	3.62	2.56	1.69	0.43	0.75	1/2-13	1.18
4ZC-2104SS	3.62	2.56	1.69	0.43	0.75	1/2-13	1.26
4ZC-2105SS	3.62	2.56	1.69	0.43	0.75	1/2-13	1.38
4ZC-2106SS	3.62	2.56	1.69	0.43	0.75	1/2-13	1.57
4ZC-2107SS	3.62	2.56	1.69	0.43	0.75	1/2-13	1.77
4ZC-2108SS	3.62	2.56	1.69	0.43	0.75	1/2-13	1.97
4ZC-2109SS	3.62	2.56	1.69	0.43	0.75	1/2-13	2.36
4ZC-2110SS	3.62	2.56	1.69	0.43	0.75	1/2-13	2.48
5ZC-2111SS	4.25	2.99	1.99	0.47	0.91	1/2-13	0.98
5ZC-2112SS	4.25	2.99	1.99	0.47	0.91	1/2-13	1.26
5ZC-2113SS	4.25	2.99	1.99	0.47	0.91	1/2-13	1.57
5ZC-2114SS	4.25	2.99	1.99	0.47	0.91	1/2-13	1.97
5ZC-2115SS	4.25	2.99	1.99	0.47	0.91	1/2-13	2.17
5ZC-2116SS	4.25	2.99	1.99	0.47	0.91	1/2-13	2.36
5ZC-2117SS	4.25	2.99	1.99	0.47	0.91	1/2-13	2.48
5ZC-2118SS	4.25	2.99	1.99	0.47	0.91	5/8-11	1.26
5ZC-2119SS	4.25	2.99	1.99	0.47	0.91	5/8-11	1.57
5ZC-2120SS	4.25	2.99	1.99	0.47	0.91	5/8-11	1.97
5ZC-2121SS	4.25	2.99	1.99	0.47	0.91	5/8-11	2.17
5ZC-2122SS	4.25	2.99	1.99	0.47	0.91	5/8-11	2.36
5ZC-2123SS	4.25	2.99	1.99	0.47	0.91	5/8-11	2.48


JBF National Part Number / Metric	A	B	C	D	E	F-thread	G-length
1ZC-1530SS	45	35	25	4	10	M4	10
1ZC-1531SS	45	35	25	4	10	M4	12
1ZC-1532SS	45	35	25	4	10	M4	16
1ZC-1533SS	45	35	25	4	10	M4	20
1ZC-1534SS	45	35	25	4	10	M4	25
1ZC-1535SS	45	35	25	4	10	M4	32
1ZC-1536SS	45	35	25	4	10	M5	10
1ZC-1537SS	45	35	25	4	10	M5	12
1ZC-1538SS	45	35	25	4	10	M5	15
1ZC-1539SS	45	35	25	4	10	M5	20
1ZC-1540SS	45	35	25	4	10	M5	25
1ZC-1541SS	45	35	25	4	10	M5	32
1ZC-1542SS	45	35	25	4	10	M5	40
1ZC-1543SS	45	35	25	4	10	M5	50
1ZC-1544SS	45	35	25	4	10	M6	10
1ZC-1545SS	45	35	25	4	10	M6	12
1ZC-1546SS	45	35	25	4	10	M6	15
1ZC-1547SS	45	35	25	4	10	M6	20
1ZC-1548SS	45	35	25	4	10	M6	25
1ZC-1549SS	45	35	25	4	10	M6	30
1ZC-1550SS	45	35	25	4	10	M6	32
1ZC-1551SS	45	35	25	4	10	M6	35
1ZC-1552SS	45	35	25	4	10	M6	40
1ZC-1553SS	45	35	25	4	10	M6	45
1ZC-1554SS	45	35	25	4	10	M6	50
1ZC-1555SS	45	35	25	4	10	M6	63
2ZC-1556SS	63	45	31	6.5	13.5	M6	10
2ZC-1557SS	63	45	31	6.5	13.5	M6	12
2ZC-1558SS	63	45	31	6.5	13.5	M6	16
2ZC-1559SS	63	45	31	6.5	13.5	M6	20
2ZC-1560SS	63	45	31	6.5	13.5	M6	25
2ZC-1561SS	63	45	31	6.5	13.5	M6	32
2ZC-1562SS	63	45	31	6.5	13.5	M6	40
2ZC-1563SS	63	45	31	6.5	13.5	M6	50
2ZC-1564SS	63	45	31	6.5	13.5	M6	63
2ZC-1565SS	63	45	31	6.5	13.5	M8	12
2ZC-1566SS	63	45	31	6.5	13.5	M8	15
2ZC-1567SS	63	45	31	6.5	13.5	M8	20
2ZC-1568SS	63	45	31	6.5	13.5	M8	25
2ZC-1569SS	63	45	31	6.5	13.5	M8	30
2ZC-1570SS	63	45	31	6.5	13.5	M8	32
2ZC-1571SS	63	45	31	6.5	13.5	M8	35
2ZC-1572SS	63	45	31	6.5	13.5	M8	40
2ZC-1573SS	63	45	31	6.5	13.5	M8	45
2ZC-1574SS	63	45	31	6.5	13.5	M8	50
2ZC-1575SS	63	45	31	6.5	13.5	M8	60
2ZC-1576SS	63	45	31	6.5	13.5	M8	63
2ZC-1577SS	63	45	31	6.5	13.5	M10	15
2ZC-1578SS	63	45	31	6.5	13.5	M10	20
2ZC-1579SS	63	45	31	6.5	13.5	M10	25
2ZC-1580SS	63	45	31	6.5	13.5	M10	30
2ZC-1581SS	63	45	31	6.5	13.5	M10	35
2ZC-1582SS	63	45	31	6.5	13.5	M10	40
2ZC-1583SS	63	45	31	6.5	13.5	M10	45
2ZC-1584SS	63	45	31	6.5	13.5	M10	50
2ZC-1585SS	63	45	31	6.5	13.5	M10	60
2ZC-1586SS	63	45	31	6.5	13.5	M10	80
3ZC-1587SS	78	55	36	8	16	M10	15
3ZC-1588SS	78	55	36	8	16	M10	20
3ZC-1589SS	78	55	36	8	16	M10	25
3ZC-1590SS	78	55	36	8	16	M10	30
3ZC-1591SS	78	55	36	8	16	M10	32
3ZC-1592SS	78	55	36	8	16	M10	35
3ZC-1593SS	78	55	36	8	16	M10	40
3ZC-1594SS	78	55	36	8	16	M10	45
3ZC-1595SS	78	55	36	8	16	M10	50
3ZC-1596SS	78	55	36	8	16	M10	60
3ZC-1597SS	78	55	36	8	16	M10	63
3ZC-1598SS	78	55	36	8	16	M10	80
3ZC-1599SS	78	55	36	8	16	M12	25
3ZC-1600SS	78	55	36	8	16	M12	32
3ZC-1601SS	78	55	36	8	16	M12	40
3ZC-1602SS	78	55	36	8	16	M12	50
3ZC-1603SS	78	55	36	8	16	M12	63
3ZC-1604SS	78	55	36	8	16	M12	80
4ZC-1605SS	92	65	43	11	19	M10	20
4ZC-1606SS	92	65	43	11	19	M10	25
4ZC-1607SS	92	65	43	11	19	M10	30
4ZC-1608SS	92	65	43	11	19	M10	32
4ZC-1609SS	92	65	43	11	19	M10	35
4ZC-1610SS	92	65	43	11	19	M10	40
4ZC-1611SS	92	65	43	11	19	M10	45
4ZC-1612SS	92	65	43	11	19	M10	50
4ZC-1613SS	92	65	43	11	19	M10	60
4ZC-1614SS	92	65	43	11	19	M10	63
4ZC-1615SS	92	65	43	11	19	M10	80
4ZC-1616SS	92	65	43	11	19	M12	20
4ZC-1617SS	92	65	43	11	19	M12	25
4ZC-1618SS	92	65	43	11	19	M12	30
4ZC-1619SS	92	65	43	11	19	M12	32
4ZC-1620SS	92	65	43	11	19	M12	35
4ZC-1621SS	92	65	43	11	19	M12	40
4ZC-1622SS	92	65	43	11	19	M12	45
4ZC-1623SS	92	65	43	11	19	M12	50
4ZC-1624SS	92	65	43	11	19	M12	60
4ZC-1625SS	92	65	43	11	19	M12	63
4ZC-1626SS	92	65	43	11	19	M12	80
5ZC-1627SS	108	75	50	12	23	M12	25
5ZC-1628SS	108	75	50	12	23	M12	32
5ZC-1629SS	108	75	50	12	23	M12	40
5ZC-1630SS	108	75	50	12	23	M12	50
5ZC-1631SS	108	75	50	12	23	M12	60
5ZC-1632SS	108	75	50	12	23	M12	63
5ZC-1633SS	108	75	50	12	23	M12	80
5ZC-1634SS	108	75	50	12	23	M12	120
5ZC-1635SS	108	75	50	12	23	M16	25
5ZC-1636SS	108	75	50	12	23	M16	32
5ZC-1637SS	108	75	50	12	23	M16	40
5ZC-1638SS	108	75	50	12	23	M16	50
5ZC-1639SS	108	75	50	12	23	M16	60
5ZC-1640SS	108	75	50	12	23	M16	63
5ZC-1641SS	108	75	50	12	23	M16	80
5ZC-1642SS	108	75	50	12	23	M16	120
