Ball Style Adjustable Handle with Steel Stud Insert , Adjustable Handles

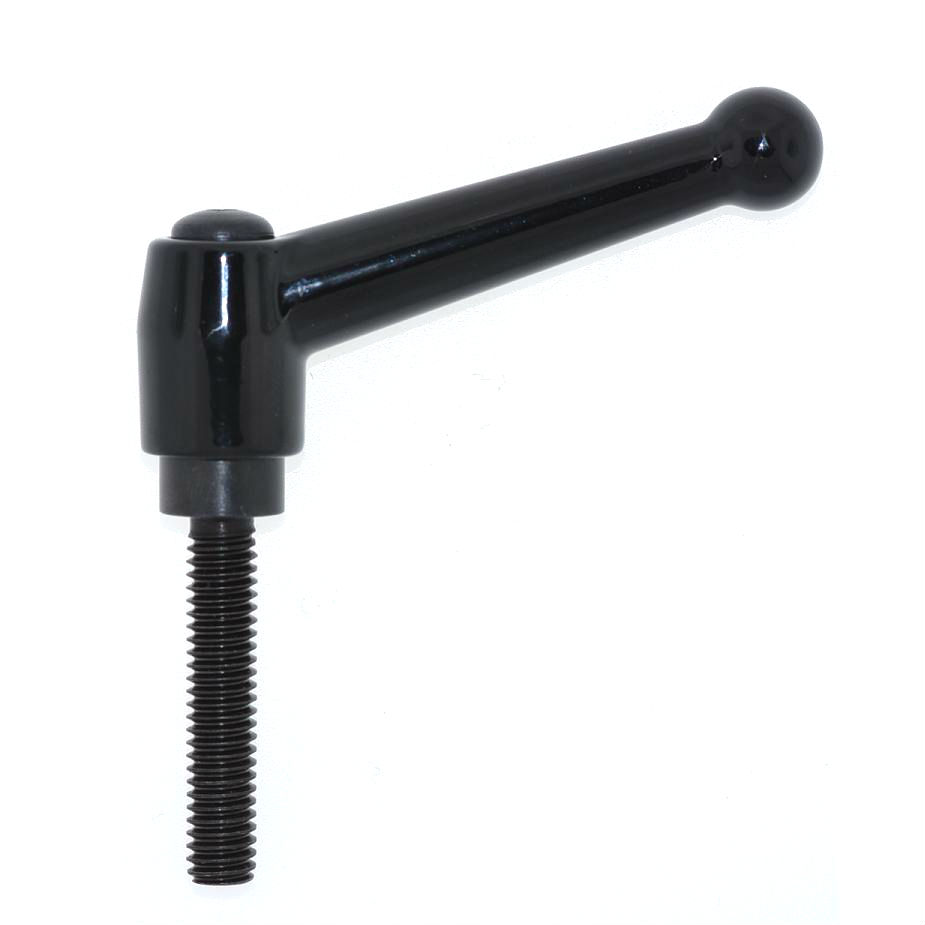

Zinc Ball Style Adjustable Clamping Lever

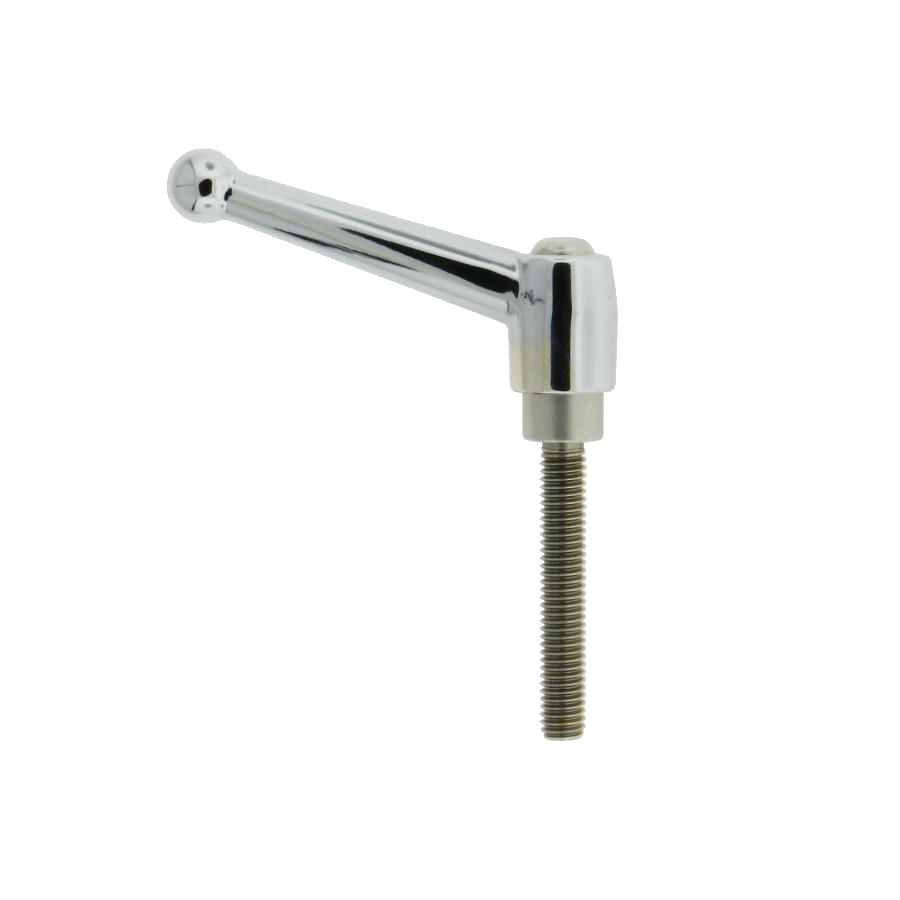

Zinc Ball Style Adjustable Clamping Lever - Chrome Finish

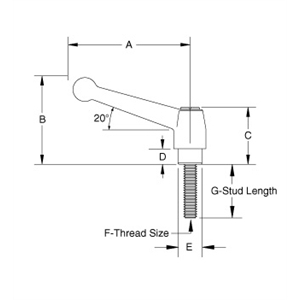

JBF National manufactures this adjustable handle using the highest quality zinc die cast ball style handle, which comes coated in the hardiest of black powder finishes, and features premium black oxide coated steel components. Chrome finish available with certain sizes. This adjustable handle (also known as a clamping lever) also features a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. Inch and Metric versions available along with a variety of stud lengths. Please see component diagram below.


JBF National Part Number / Inch	A	B	C	D	E	F-thread	G-length
1ZB-1081	1.57	1.3	0.95	0.15	0.39	10-32	0.39
1ZB-1082	1.57	1.3	0.95	0.15	0.39	10-32	0.59
1ZB-1083	1.57	1.3	0.95	0.15	0.39	10-32	0.78
1ZB-1084	1.57	1.3	0.95	0.15	0.39	10-32	1.18
1ZB-1085	1.57	1.3	0.95	0.15	0.39	10-24	0.39
1ZB-1086	1.57	1.3	0.95	0.15	0.39	10-24	0.59
1ZB-1087	1.57	1.3	0.95	0.15	0.39	10-24	0.78
1ZB-1088	1.57	1.3	0.95	0.15	0.39	10-24	1.18
1ZB-1089	1.57	1.3	0.95	0.15	0.39	1/4-20	0.39
1ZB-1090	1.57	1.3	0.95	0.15	0.39	1/4-20	0.59
1ZB-1091	1.57	1.3	0.95	0.15	0.39	1/4-20	0.78
1ZB-1092	1.57	1.3	0.95	0.15	0.39	1/4-20	1.18
1ZB-1093	1.57	1.3	0.95	0.15	0.39	1/4-20	1.57
1ZB-1094	1.57	1.3	0.95	0.15	0.39	1/4-20	1.77
2ZB-1095	2.56	1.81	1.14	0.25	0.53	5/16-18	0.59
2ZB-1096	2.56	1.81	1.14	0.25	0.53	5/16-18	0.78
2ZB-1097	2.56	1.81	1.14	0.25	0.53	5/16-18	1.18
2ZB-1098	2.56	1.81	1.14	0.25	0.53	5/16-18	1.57
2ZB-1099	2.56	1.81	1.14	0.25	0.53	5/16-18	1.77
2ZB-1100	2.56	1.81	1.14	0.25	0.53	5/16-18	1.97
2ZB-1101	2.56	1.81	1.14	0.25	0.53	5/16-18	2.36
2ZB-1102	2.56	1.81	1.14	0.25	0.53	3/8-16	0.59
2ZB-1103	2.56	1.81	1.14	0.25	0.53	3/8-16	0.78
2ZB-1104	2.56	1.81	1.14	0.25	0.53	3/8-16	1.18
2ZB-1105	2.56	1.81	1.14	0.25	0.53	3/8-16	1.57
2ZB-1106	2.56	1.81	1.14	0.25	0.53	3/8-16	1.77
2ZB-1107	2.56	1.81	1.14	0.25	0.53	3/8-16	1.97
2ZB-1108	2.56	1.81	1.14	0.25	0.53	3/8-16	2.36
3ZB-1109	3.15	2.28	1.47	0.39	0.62	3/8-16	0.59
3ZB-1110	3.15	2.28	1.47	0.39	0.62	3/8-16	0.78
3ZB-1111	3.15	2.28	1.47	0.39	0.62	3/8-16	1.18
3ZB-1112	3.15	2.28	1.47	0.39	0.62	3/8-16	1.57
3ZB-1113	3.15	2.28	1.47	0.39	0.62	3/8-16	1.77
3ZB-1114	3.15	2.28	1.47	0.39	0.62	3/8-16	1.97
3ZB-1115	3.15	2.28	1.47	0.39	0.62	3/8-16	2.36
4ZB-1116	3.74	2.63	1.68	0.39	0.75	3/8-16	0.59
4ZB-1117	3.74	2.63	1.68	0.39	0.75	3/8-16	0.78
4ZB-1118	3.74	2.63	1.68	0.39	0.75	3/8-16	1.18
4ZB-1119	3.74	2.63	1.68	0.39	0.75	3/8-16	1.57
4ZB-1120	3.74	2.63	1.68	0.39	0.75	3/8-16	1.77
4ZB-1121	3.74	2.63	1.68	0.39	0.75	3/8-16	1.97
4ZB-1122	3.74	2.63	1.68	0.39	0.75	3/8-16	2.36
4ZB-1123	3.74	2.63	1.68	0.39	0.75	1/2-13	0.59
4ZB-1124	3.74	2.63	1.68	0.39	0.75	1/2-13	0.78
4ZB-1125	3.74	2.63	1.68	0.39	0.75	1/2-13	1.18
4ZB-1126	3.74	2.63	1.68	0.39	0.75	1/2-13	1.38
4ZB-1127	3.74	2.63	1.68	0.39	0.75	1/2-13	1.57
4ZB-1128	3.74	2.63	1.68	0.39	0.75	1/2-13	1.77
4ZB-1129	3.74	2.63	1.68	0.39	0.75	1/2-13	1.97
4ZB-1130	3.74	2.63	1.68	0.39	0.75	1/2-13	2.36
5ZB-1131	4.33	3.11	2	0.47	0.9	1/2-13	0.98
5ZB-1132	4.33	3.11	2	0.47	0.9	1/2-13	1.57
5ZB-1133	4.33	3.11	2	0.47	0.9	1/2-13	1.97
5ZB-1134	4.33	3.11	2	0.47	0.9	1/2-13	2.36
5ZB-1135	4.33	3.11	2	0.47	0.9	5/8-11	1.57
5ZB-1136	4.33	3.11	2	0.47	0.9	5/8-11	2.36


JBF National Part Number / Metric	A	B	C	D	E	F-thread	G-length
1ZB-1235	40	33	24	4	10	M5	15
1ZB-1236	40	33	24	4	10	M5	20
1ZB-1237	40	33	24	4	10	M5	25
1ZB-1238	40	33	24	4	10	M6	10
1ZB-1239	40	33	24	4	10	M6	15
1ZB-1240	40	33	24	4	10	M6	20
1ZB-1241	40	33	24	4	10	M6	25
1ZB-1242	40	33	24	4	10	M6	30
1ZB-1243	40	33	24	4	10	M6	35
1ZB-1244	40	33	24	4	10	M6	40
1ZB-1245	40	33	24	4	10	M6	45
2ZB-1246	65	46	29	6.5	13.5	M8	15
2ZB-1247	65	46	29	6.5	13.5	M8	20
2ZB-1248	65	46	29	6.5	13.5	M8	25
2ZB-1249	65	46	29	6.5	13.5	M8	30
2ZB-1250	65	46	29	6.5	13.5	M8	35
2ZB-1251	65	46	29	6.5	13.5	M8	40
2ZB-1252	65	46	29	6.5	13.5	M8	45
2ZB-1253	65	46	29	6.5	13.5	M8	50
2ZB-1254	65	46	29	6.5	13.5	M8	60
2ZB-1255	65	46	29	6.5	13.5	M10	15
2ZB-1256	65	46	29	6.5	13.5	M10	20
2ZB-1257	65	46	29	6.5	13.5	M10	25
2ZB-1258	65	46	29	6.5	13.5	M10	30
2ZB-1259	65	46	29	6.5	13.5	M10	35
2ZB-1260	65	46	29	6.5	13.5	M10	40
2ZB-1261	65	46	29	6.5	13.5	M10	45
2ZB-1262	65	46	29	6.5	13.5	M10	50
2ZB-1263	65	46	29	6.5	13.5	M10	60
3ZB-1264	80	58	37.5	10	16	M10	15
3ZB-1265	80	58	37.5	10	16	M10	20
3ZB-1266	80	58	37.5	10	16	M10	25
3ZB-1267	80	58	37.5	10	16	M10	30
3ZB-1268	80	58	37.5	10	16	M10	35
3ZB-1269	80	58	37.5	10	16	M10	40
3ZB-1270	80	58	37.5	10	16	M10	45
3ZB-1271	80	58	37.5	10	16	M10	50
3ZB-1272	80	58	37.5	10	16	M10	60
4ZB-1273	95	67	42.5	10	19	M10	20
4ZB-1274	95	67	42.5	10	19	M10	25
4ZB-1275	95	67	42.5	10	19	M10	30
4ZB-1276	95	67	42.5	10	19	M10	35
4ZB-1277	95	67	42.5	10	19	M10	40
4ZB-1278	95	67	42.5	10	19	M10	45
4ZB-1279	95	67	42.5	10	19	M10	50
4ZB-1280	95	67	42.5	10	19	M10	60
4ZB-1281	95	67	42.5	10	19	M12	20
4ZB-1282	95	67	42.5	10	19	M12	25
4ZB-1283	95	67	42.5	10	19	M12	30
4ZB-1284	95	67	42.5	10	19	M12	35
4ZB-1285	95	67	42.5	10	19	M12	40
4ZB-1286	95	67	42.5	10	19	M12	45
4ZB-1287	95	67	42.5	10	19	M12	50
4ZB-1288	95	67	42.5	10	19	M12	60
5ZB-1289	110	79	51	12	23	M12	40
5ZB-1290	110	79	51	12	23	M12	50
5ZB-1291	110	79	51	12	23	M12	60
5ZB-1292	110	79	51	12	23	M16	60
