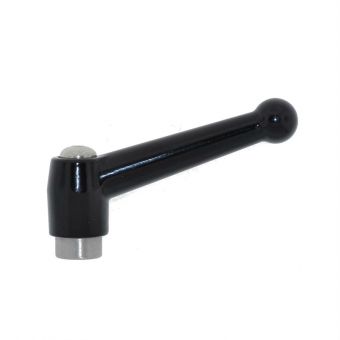

Ball Style Adjustable Handle with SS Tapped Insert

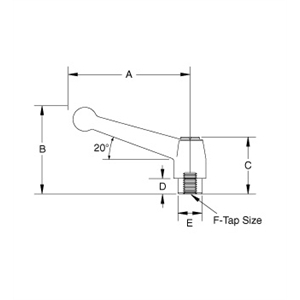

JBF National manufactures this adjustable handle with the highest quality zinc die cast ball style handle, which comes coated in the hardiest of black powder finishes, and features premium 303 stainless steel components. Chrome finish available with certain sizes. This adjustable handle (also known as a clamping lever) also features a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. RoHs compliant. Inch and Metric versions available. Please see component diagram below.
| JBF National Part Number / Inch | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1ZB-1056SS | 1.57 | 1.3 | 0.95 | 0.15 | 0.39 | .125 Ream |
| 1ZB-1057SS | 1.57 | 1.3 | 0.95 | 0.15 | 0.39 | 10-24 |
| 1ZB-1058SS | 1.57 | 1.3 | 0.95 | 0.15 | 0.39 | 1/4-20 |
| 1ZB-1059SS | 1.57 | 1.3 | 0.95 | 0.15 | 0.39 | .250 Ream |
| 1ZB-1060SS | 1.57 | 1.3 | 0.95 | 0.15 | 0.39 | 10-32 |
| 2ZB-1061SS | 2.56 | 1.81 | 1.14 | 0.25 | 0.53 | .196 Ream |
| 2ZB-1062SS | 2.56 | 1.81 | 1.14 | 0.25 | 0.53 | 1/4-20 |
| 2ZB-1063SS | 2.56 | 1.81 | 1.14 | 0.25 | 0.53 | 5/16-18 |
| 2ZB-1064SS | 2.56 | 1.81 | 1.14 | 0.25 | 0.53 | .250 Ream |
| 2ZB-1065SS | 2.56 | 1.81 | 1.14 | 0.25 | 0.53 | .313 Ream |
| 3ZB-1066SS | 3.15 | 2.28 | 1.47 | 0.39 | 0.62 | .230 Ream |
| 3ZB-1067SS | 3.15 | 2.28 | 1.47 | 0.39 | 0.62 | 5/16-18 |
| 3ZB-1068SS | 3.15 | 2.28 | 1.47 | 0.39 | 0.62 | 3/8-16 |
| 3ZB-1069SS | 3.15 | 2.28 | 1.47 | 0.39 | 0.62 | .313 Ream |
| 3ZB-1070SS | 3.15 | 2.28 | 1.47 | 0.39 | 0.62 | .375 Ream |
| 4ZB-1071SS | 3.74 | 3.11 | 2 | 0.47 | 0.9 | .240 Ream |
| 4ZB-1072SS | 3.74 | 3.11 | 2 | 0.47 | 0.9 | 3/8-16 |
| 4ZB-1073SS | 3.74 | 3.11 | 2 | 0.47 | 0.9 | 1/2-13 |
| 4ZB-1074SS | 3.74 | 3.11 | 2 | 0.47 | 0.9 | .375 Ream |
| 4ZB-1075SS | 3.74 | 3.11 | 2 | 0.47 | 0.9 | .500 Ream |
| 5ZB-1076SS | 4.33 | 3.11 | 2 | 0.47 | 0.9 | .240 Ream |
| 5ZB-1077SS | 4.33 | 3.11 | 2 | 0.47 | 0.9 | 1/2-13 |
| 5ZB-1078SS | 4.33 | 3.11 | 2 | 0.47 | 0.9 | 5/8-11 |
| 5ZB-1079SS | 4.33 | 3.11 | 2 | 0.47 | 0.9 | .500 Ream |
| 5ZB-1080SS | 4.33 | 3.11 | 2 | 0.47 | 0.9 | .625 Ream |
| JBF National Part Number / Metric | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1ZB-1220SS | 40 | 33 | 24 | 4 | 10 | M5 |
| 1ZB-1221SS | 40 | 33 | 24 | 4 | 10 | M6 |
| 1ZB-1222SS | 40 | 33 | 24 | 4 | 10 | 5mm ream |
| 2ZB-1223SS | 65 | 46 | 29 | 6.5 | 13.5 | M6 |
| 2ZB-1224SS | 65 | 46 | 29 | 6.5 | 13.5 | M8 |
| 2ZB-1225SS | 65 | 46 | 29 | 6.5 | 13.5 | 6mm ream |
| 3ZB-1226SS | 80 | 58 | 37.5 | 10 | 16 | M8 |
| 3ZB-1227SS | 80 | 58 | 37.5 | 10 | 16 | M10 |
| 3ZB-1228SS | 80 | 58 | 37.5 | 10 | 16 | 8mm ream |
| 4ZB-1229SS | 95 | 67 | 42.5 | 10 | 19 | M10 |
| 4ZB-1230SS | 95 | 67 | 42.5 | 10 | 19 | M12 |
| 4ZB-1231SS | 95 | 67 | 42.5 | 10 | 19 | 10mm ream |
| 5ZB-1232SS | 110 | 79 | 51 | 12 | 23 | M12 |
| 5ZB-1233SS | 110 | 79 | 51 | 12 | 23 | M16 |
| 5ZB-1234SS | 110 | 79 | 51 | 12 | 23 | 12mm ream |
