Ball Style Adjustable Handle with SS Stud Insert , Adjustable Handles

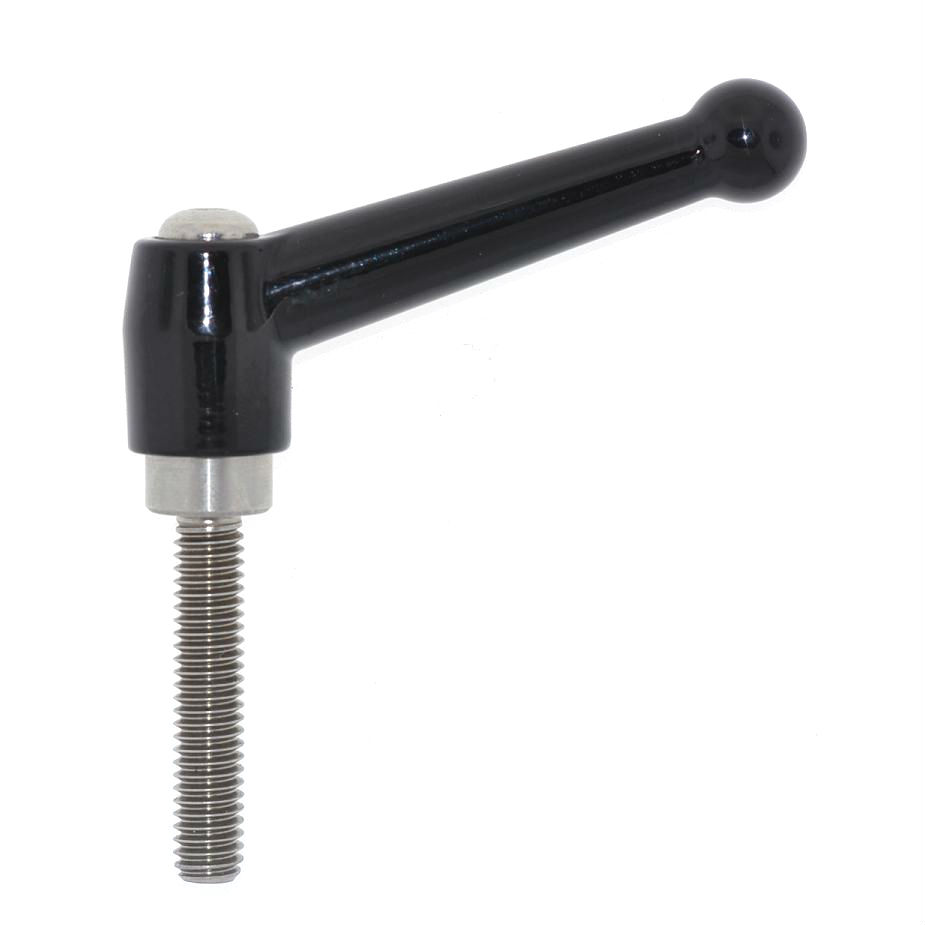

Zinc Ball Style Adjustable Clamping Lever

Zinc Ball Style Adjustable Clamping Lever - Top View

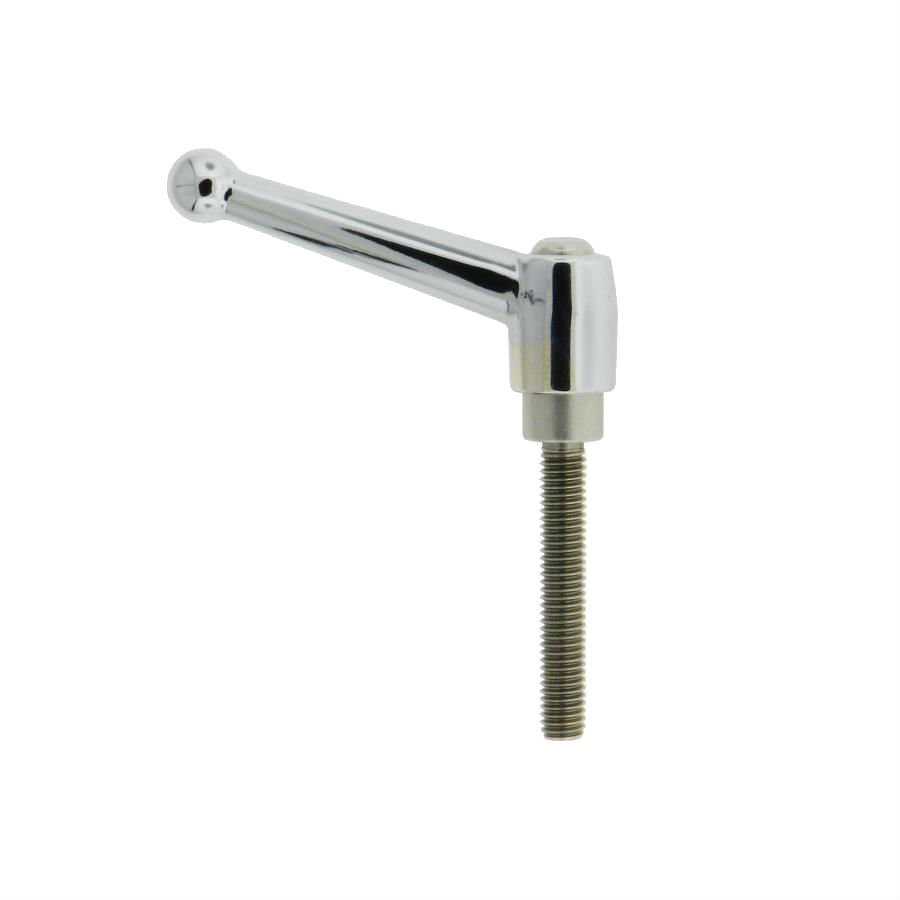

Zinc Ball Style Adjustable Clamping Lever - Chrome Finish

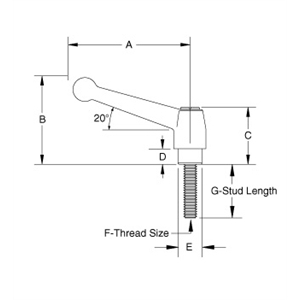

JBF National manufactures this adjustable handle using the highest quality zinc die cast ball style handle, which comes coated in the hardiest of black powder finishes, and features premium 303 stainless steel components. Chrome finish available with certain sizes. This adjustable handle (also known as a clamping lever) also features a significantly reduced screw cavity, therefore debris collection is practically non-existent, making it ideal for various industrial and non-industrial applications. RoHs compliant. Inch and Metric versions available along with a variety of stud lengths. Please see component diagram below.


JBF National Part Number / Inch	A	B	C	D	E	F-thread	G-length
1ZB-1000SS	1.57	1.30	0.95	0.15	0.39	10-32	0.39
1ZB-1001SS	1.57	1.30	0.95	0.15	0.39	10-32	0.59
1ZB-1002SS	1.57	1.30	0.95	0.15	0.39	10-32	0.78
1ZB-1003SS	1.57	1.30	0.95	0.15	0.39	10-32	1.18
1ZB-1004SS	1.57	1.30	0.95	0.15	0.39	10-24	0.39
1ZB-1005SS	1.57	1.30	0.95	0.15	0.39	10-24	0.59
1ZB-1006SS	1.57	1.30	0.95	0.15	0.39	10-24	0.78
1ZB-1007SS	1.57	1.30	0.95	0.15	0.39	10-24	1.18
1ZB-1008SS	1.57	1.30	0.95	0.15	0.39	1/4-20	0.39
1ZB-1009SS	1.57	1.30	0.95	0.15	0.39	1/4-20	0.59
1ZB-1010SS	1.57	1.30	0.95	0.15	0.39	1/4-20	0.78
1ZB-1011SS	1.57	1.30	0.95	0.15	0.39	1/4-20	1.18
1ZB-1012SS	1.57	1.30	0.95	0.15	0.39	1/4-20	1.57
1ZB-1013SS	1.57	1.30	0.95	0.15	0.39	1/4-20	1.77
2ZB-1014SS	2.56	1.81	1.14	0.25	0.53	5/16-18	0.59
2ZB-1015SS	2.56	1.81	1.14	0.25	0.53	5/16-18	0.78
2ZB-1016SS	2.56	1.81	1.14	0.25	0.53	5/16-18	1.18
2ZB-1017SS	2.56	1.81	1.14	0.25	0.53	5/16-18	1.57
2ZB-1018SS	2.56	1.81	1.14	0.25	0.53	5/16-18	1.77
2ZB-1019SS	2.56	1.81	1.14	0.25	0.53	5/16-18	1.97
2ZB-1020SS	2.56	1.81	1.14	0.25	0.53	5/16-18	2.36
2ZB-1021SS	2.56	1.81	1.14	0.25	0.53	3/8-16	0.59
2ZB-1022SS	2.56	1.81	1.14	0.25	0.53	3/8-16	0.78
2ZB-1023SS	2.56	1.81	1.14	0.25	0.53	3/8-16	1.18
2ZB-1024SS	2.56	1.81	1.14	0.25	0.53	3/8-16	1.57
2ZB-1025SS	2.56	1.81	1.14	0.25	0.53	3/8-16	1.77
2ZB-1026SS	2.56	1.81	1.14	0.25	0.53	3/8-16	1.97
2ZB-1027SS	2.56	1.81	1.14	0.25	0.53	3/8-16	2.36
3ZB-1028SS	3.15	2.28	1.47	0.39	0.62	3/8-16	0.39
3ZB-1029SS	3.15	2.28	1.47	0.39	0.62	3/8-16	0.78
3ZB-1030SS	3.15	2.28	1.47	0.39	0.62	3/8-16	1.18
3ZB-1031SS	3.15	2.28	1.47	0.39	0.62	3/8-16	1.57
3ZB-1032SS	3.15	2.28	1.47	0.39	0.62	3/8-16	1.77
3ZB-1033SS	3.15	2.28	1.47	0.39	0.62	3/8-16	1.97
3ZB-1034SS	3.15	2.28	1.47	0.39	0.62	3/8-16	2.36
4ZB-1035SS	3.74	2.63	1.68	0.39	0.75	3/8-16	0.59
4ZB-1036SS	3.74	2.63	1.68	0.39	0.75	3/8-16	0.78
4ZB-1037SS	3.74	2.63	1.68	0.39	0.75	3/8-16	1.18
4ZB-1038SS	3.74	2.63	1.68	0.39	0.75	3/8-16	1.57
4ZB-1039SS	3.74	2.63	1.68	0.39	0.75	3/8-16	1.77
4ZB-1040SS	3.74	2.63	1.68	0.39	0.75	3/8-16	1.97
4ZB-1041SS	3.74	2.63	1.68	0.39	0.75	3/8-16	2.36
4ZB-1042SS	3.74	2.63	1.68	0.39	0.75	1/2-13	0.59
4ZB-1043SS	3.74	2.63	1.68	0.39	0.75	1/2-13	0.78
4ZB-1044SS	3.74	2.63	1.68	0.39	0.75	1/2-13	1.18
4ZB-1045SS	3.74	2.63	1.68	0.39	0.75	1/2-13	1.38
4ZB-1046SS	3.74	2.63	1.68	0.39	0.75	1/2-13	1.57
4ZB-1047SS	3.74	2.63	1.68	0.39	0.75	1/2-13	1.77
4ZB-1048SS	3.74	2.63	1.68	0.39	0.75	1/2-13	1.97
4ZB-1049SS	3.74	2.63	1.68	0.39	0.75	1/2-13	2.36
5ZB-1050SS	4.33	3.11	2.00	0.47	0.9	1/2-13	0.98
5ZB-1051SS	4.33	3.11	2.00	0.47	0.9	1/2-13	1.57
5ZB-1052SS	4.33	3.11	2.00	0.47	0.9	1/2-13	1.97
5ZB-1053SS	4.33	3.11	2.00	0.47	0.9	1/2-13	2.36
5ZB-1054SS	4.33	3.11	2.00	0.47	0.9	5/8-11	1.57
5ZB-1055SS	4.33	3.11	2.00	0.47	0.9	5/8-11	2.36


JBF National Part Number / Metric	A	B	C	D	E	F-thread	G-length
1ZB-1162SS	40	33	24	4	10	M5	15
1ZB-1163SS	40	33	24	4	10	M5	20
1ZB-1164SS	40	33	24	4	10	M5	25
1ZB-1165SS	40	33	24	4	10	M6	10
1ZB-1166SS	40	33	24	4	10	M6	15
1ZB-1167SS	40	33	24	4	10	M6	20
1ZB-1168SS	40	33	24	4	10	M6	25
1ZB-1169SS	40	33	24	4	10	M6	30
1ZB-1170SS	40	33	24	4	10	M6	35
1ZB-1171SS	40	33	24	4	10	M6	40
1ZB-1172SS	40	33	24	4	10	M6	45
2ZB-1173SS	65	46	29	6.5	13.5	M8	15
2ZB-1174SS	65	46	29	6.5	13.5	M8	20
2ZB-1175SS	65	46	29	6.5	13.5	M8	25
2ZB-1176SS	65	46	29	6.5	13.5	M8	30
2ZB-1177SS	65	46	29	6.5	13.5	M8	35
2ZB-1178SS	65	46	29	6.5	13.5	M8	40
2ZB-1179SS	65	46	29	6.5	13.5	M8	45
2ZB-1180SS	65	46	29	6.5	13.5	M8	50
2ZB-1181SS	65	46	29	6.5	13.5	M8	60
2ZB-1182SS	65	46	29	6.5	13.5	M10	15
2ZB-1183SS	65	46	29	6.5	13.5	M10	20
2ZB-1184SS	65	46	29	6.5	13.5	M10	25
2ZB-1185SS	65	46	29	6.5	13.5	M10	30
2ZB-1186SS	65	46	29	6.5	13.5	M10	35
2ZB-1187SS	65	46	29	6.5	13.5	M10	40
2ZB-1188SS	65	46	29	6.5	13.5	M10	45
2ZB-1189SS	65	46	29	6.5	13.5	M10	50
2ZB-1190SS	65	46	29	6.5	13.5	M10	60
3ZB-1191SS	80	58	37.5	10	16	M10	15
3ZB-1192SS	80	58	37.5	10	16	M10	20
3ZB-1193SS	80	58	37.5	10	16	M10	25
3ZB-1194SS	80	58	37.5	10	16	M10	30
3ZB-1195SS	80	58	37.5	10	16	M10	35
3ZB-1196SS	80	58	37.5	10	16	M10	40
3ZB-1197SS	80	58	37.5	10	16	M10	45
3ZB-1198SS	80	58	37.5	10	16	M10	50
3ZB-1199SS	80	58	37.5	10	16	M10	60
4ZB-1200SS	95	67	42.5	10	19	M10	20
4ZB-1201SS	95	67	42.5	10	19	M10	25
4ZB-1202SS	95	67	42.5	10	19	M10	30
4ZB-1203SS	95	67	42.5	10	19	M10	35
4ZB-1204SS	95	67	42.5	10	19	M10	40
4ZB-1205SS	95	67	42.5	10	19	M10	45
4ZB-1206SS	95	67	42.5	10	19	M10	50
4ZB-1207SS	95	67	42.5	10	19	M10	60
4ZB-1208SS	95	67	42.5	10	19	M12	20
4ZB-1209SS	95	67	42.5	10	19	M12	25
4ZB-1210SS	95	67	42.5	10	19	M12	30
4ZB-1211SS	95	67	42.5	10	19	M12	35
4ZB-1212SS	95	67	42.5	10	19	M12	40
4ZB-1213SS	95	67	42.5	10	19	M12	45
4ZB-1214SS	95	67	42.5	10	19	M12	50
4ZB-1215SS	95	67	42.5	10	19	M12	60
5ZB-1216SS	110	79	51	12	23	M12	40
5ZB-1217SS	110	79	51	12	23	M12	50
5ZB-1218SS	110	79	51	12	23	M12	60
5ZB-1219SS	110	79	51	12	23	M16	60
