Rare Earth Neodymium Cup Magnets With Male Stud N42

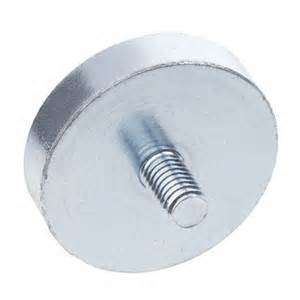

Neodymium Cup Magnet With Male Threaded Stud
Click to enlarge

JBF National neodymium cup magnets are made using strong rare earth neodymium magnets, and are housed in a nickel finished steel cup. This cup serves a dual purpose of both protecting the magnet from damage while maximizing the magnet’s overall grip strength. This magnet features a threaded male stud that makes mounting no problem at all.

JBF P/NDescriptionMale Thread SizeStud Height Cup DIA.Cup HeightFinishGradePull Strength Lbs.
1NDCMM-1159Neodymium Cup Magnets w/M4 Threaded Male Stud 5/8 inch4M0.330.620.2NickelN4218
1NDCMM-1160Neodymium Cup Magnets w/M4 Threaded Male Stud 3/4 inch4M0.330.740.26NickelN4226
2NDCMM-1161Rare Earth Cup Magnets w/M5 Threaded Male Stud 1 inchM50.3210.35NickelN4265
2NDCMM-1162Neodymium Cup Magnets w/M6 Threaded Male Stud 1.25 inchM60.391.250.31NickelN4231
3NDCMM-1163Neodymium Cup Magnets w/M8 Threaded Male Stud 1.8 inchM80.591.80.4NickelN42180
3NDCMM-1164Neodymium Cup Magnets w/M8 Threaded Male Stud 2 inchM80.6020.5NickelN42200
3NDCMM-1165Neodymium Cup Magnets w/M8 Threaded Male Stud 2.2 inchM80.632.20.6NickelN42230
